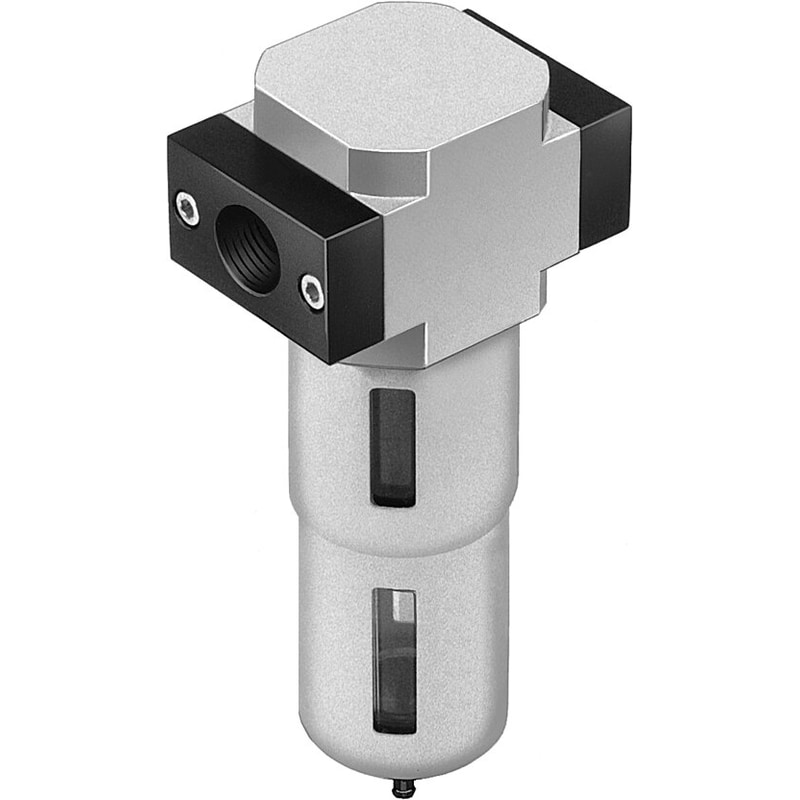

Name: LF-1/4-D-5M-MINI-A-NPT
Brand: Festo
SKU: 173683
Availability: InStock

filter LF-1/4-D-5M-MINI-A-NPT Degree of filtration 5 µm, with bowl guard and automatic condensate drain. Size=Mini, Series=D, Assembly position=Vertical, Grade of filtration=5 µm, Condensate drain=fully automatic

Size	Mini
Series	D
Assembly position	Vertical
Grade of filtration	5 µm
Condensate drain	fully automatic
Max. condensate volume	22 cm3
Bowl guard	Metal bowl guard
Operating pressure	2 … 12 bar
Standard nominal flow rate	950 l/min
Operating medium	Compressed air to ISO 8573-1:2010 [7:9:-]Inert gases
Corrosion resistance classification CRC	2 – Moderate corrosion stress
Air purity class at output	Compressed air in accordance with ISO8573-1:2010 [6:8:4]Inert gases
Medium temperature	‘-10 … 60 °C

Weight	0.89867 lbs
Dimensions	7.480315 × 3.070866 × 1.771654 in
Size	Mini
Series	D
Mounting position	Vertical
Grade of filtration	5 µm
Condensate drain	Fully automatic
Bowl guard	Metal bowl guard
Symbol	00991520
Operating pressure	2 bar … 12 bar
Normal nominal flow rate (normalized to DIN 1343)	950 l/min
Operating medium	Compressed air as per ISO 8573-1:2010 [7:9:-], Inert gas
Corrosion resistance class (CRC)	2 – Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Air quality class at the output	Compressed air as per ISO 8573-1:2010 [6:8:4], Inert gas
Temperature of medium	-10 °C … 60 °C
Ambient temperature	-10 °C … 60 °C
Type of mounting	With mounting bracket
Pneumatic connection 1	1/4 NPT
Pneumatic connection 2	1/4 NPT
Note on materials	RoHS-compliant
Compressed air filter material	PE
Housing material	Die-cast zinc
Material of bowl	PC
