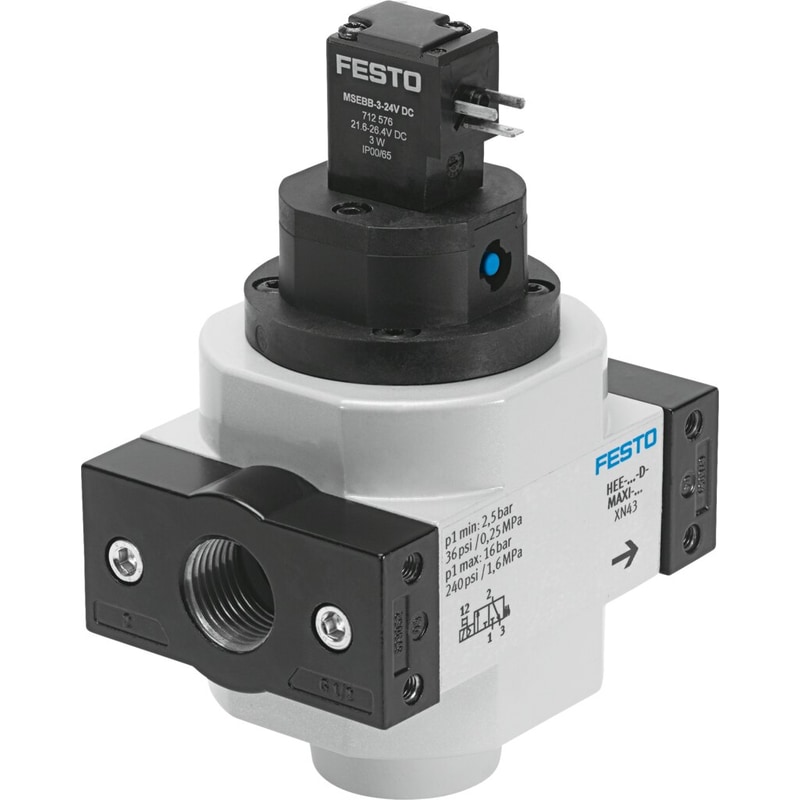

| Type code | HEE |
|---|---|
| Design | Piston gate valve |
| Actuation type | Electrical |
| Sealing principle | Soft |
| Exhaust air function | Without flow control option |
| Manual override | Detenting |
| Reset method | Mechanical spring |
| Type of control | Pilot-controlled |
| Symbol | 991008 |
| Valve function | 3/2, closed, monostable |
| Operating pressure | 2.5 bar … 16 bar |
| C value | 28 l/sbar |
| b-value | 0.32 |
| Standard nominal flow rate | 6000 l/min |
| Duty cycle | 1 |
| Coil characteristics | 230 V AC: 50/60 Hz, initial power 5.0 VA, holding power 3.7 VA |
| Permissible voltage fluctuations | -1.4 |
| Operating medium | Inert gasCompressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Note on materials | RoHS-compliant |
| Temperature of medium | -10 °C … 60 °C |
| Ambient temperature | -10 °C … 60 °C |
| Type of mounting | With accessoriesLine installation |
| Mounting position | Any |
| Flow direction | Non-reversible |
| Product weight | 800 g |
| Pneumatic connection 1 | G3/4 |
| Pneumatic connection 2 | G3/4 |
| Pneumatic connection 3 | G3/8 |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4]Inert gas |
| Electrical connection | PlugForm Cas per DIN EN 175301-803 |
| Signal status display | With accessories |
| Seals material | NBR |
| Housing material | Die-cast aluminum |
| Structural design | Piston gate valve |
|---|---|
| Actuation type | Electrical |
| Sealing principle | Soft |
| Exhaust air function | Without flow control option |
| Manual override | Detenting |
| Reset method | Mechanical spring |
| Type of control | Pilot-controlled |
| Symbol | 00991008 |
| Valve Function | 3/2, closed, monostable |
| Operating pressure | 2.5 bar … 16 bar |
| Lap | Overlap |
| C value | 28 l/sbar |
| b-value | 0.32 |
| Normal nominal flow rate (normalized to DIN 1343) | 6000 l/min |
| Duty cycle | 100% |
| Coil characteristics | 230 V AC: 50/60 Hz, initial power 5.0 VA, holding power 3.7 VA |
| Permissible voltage fluctuations | -14 % / +10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Note on materials | RoHS-compliant |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -10 °C … 60 °C |
| Ambient temperature | -10 °C … 60 °C |
| CE marking (see declaration of conformity) | As per EU low voltage directive |
| UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment |
| Type of mounting | With accessories |
| Mounting position | Any |
| Flow direction | Non-reversible |
| Product weight | 800 g |
| Pneumatic connection 1 | G3/4 |
| Pneumatic connection 2 | G3/4 |
| Pneumatic connection 3 | G3/8 |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4], Inert gas |
| Electrical connection | Form C | Plug | as per DIN EN 175301-803 |
| Signal status display | With accessories |
| Seals material | NBR |
| Housing material | Die-cast aluminum |
