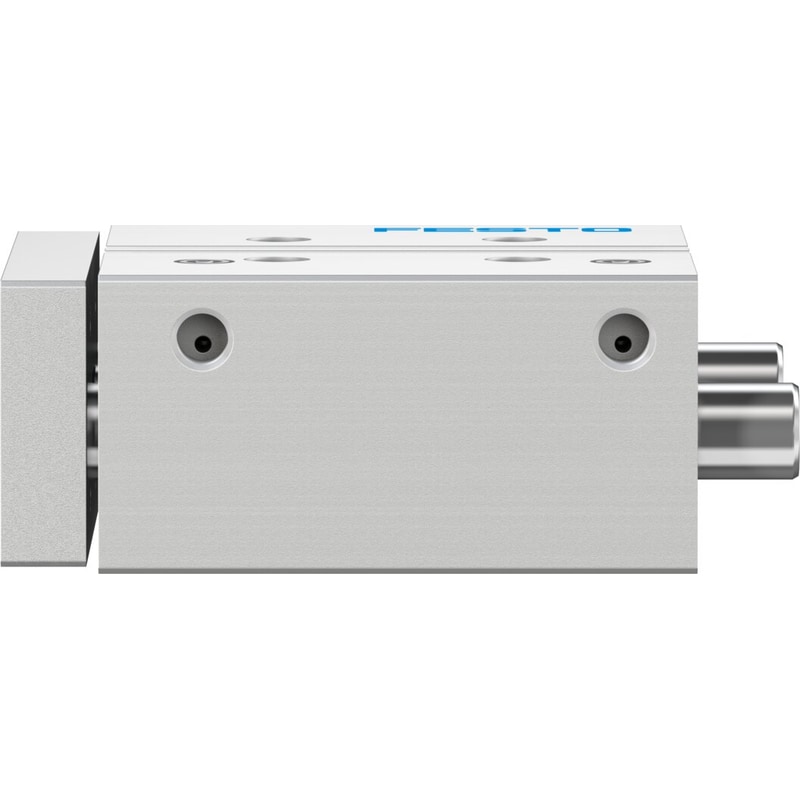

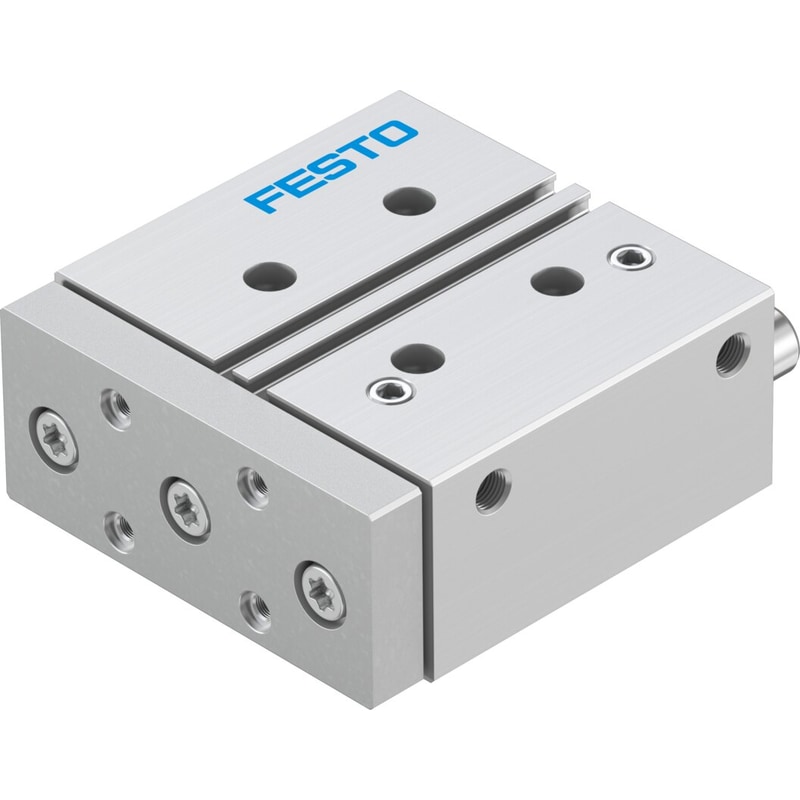

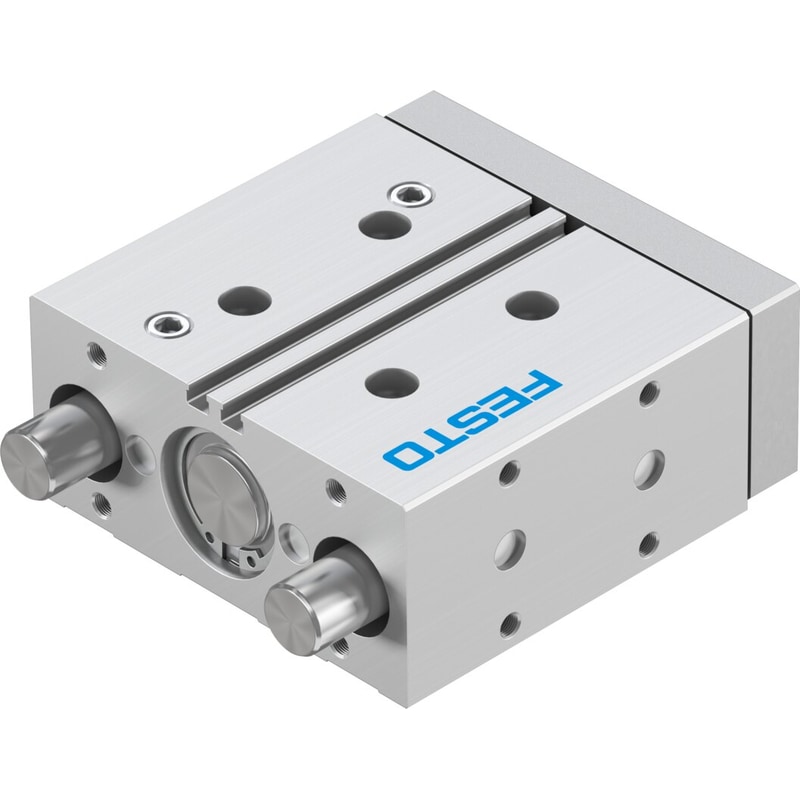

guided drive DFM-32-50-P-A-KF With integrated guide. Centre of gravity distance from working load to yoke plate=50 mm, Stroke=50 mm, Piston diameter=32 mm, Operating mode of drive unit=Yoke, Cushioning=P: Flexible cushioning rings/plates at both ends
| Centre of gravity distance from working load to yoke plate | 50 mm |
|---|---|
| Stroke | 50 mm |
| Piston diameter | 32 mm |
| Operating mode of drive unit | Yoke |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Guide | Recirculating ball bearing guide |
| Design structure | Guide |
| Position detection | For proximity sensor |
| Operating pressure | 1.5 … 10 bar |
| Max. speed | 0.8 m/s |

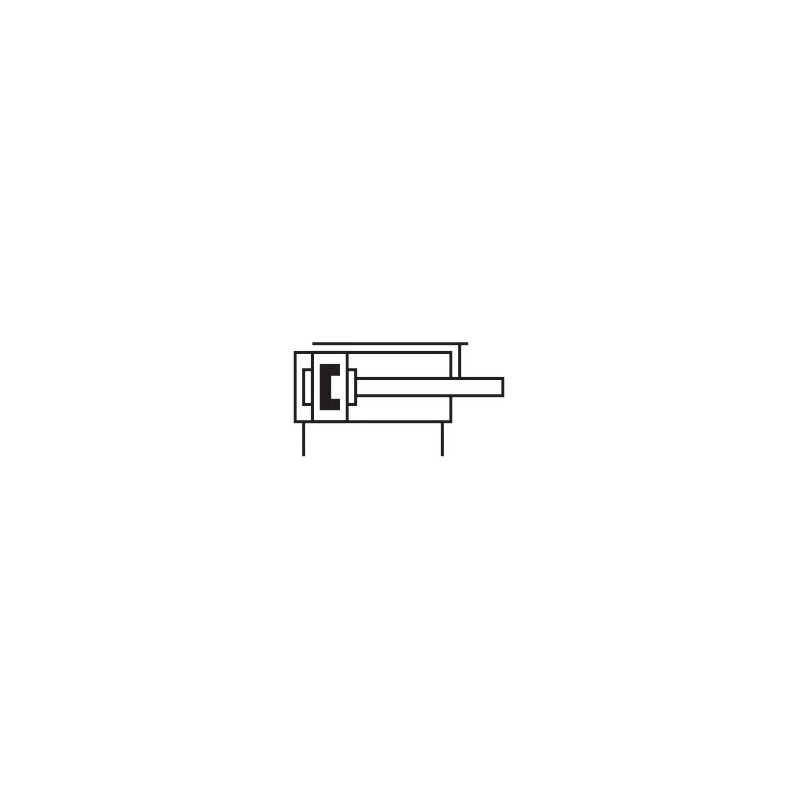

| Mode of operation | double-acting |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
