on-off valve HEL-D-MINI For service units, without threaded connection plates with FRB threaded pin. Gradual pressure build-up. The valve function is equivalent to a 2/2-way directional control valve. Exhaust-air function=throttleable, Type of actuation=pneumatic, Sealing principle=soft, Assembly position=Any, Manual override=None
| Exhaust-air function | throttleable |
|---|---|
| Type of actuation | pneumatic |
| Sealing principle | soft |
| Assembly position | Any |
| Manual override | None |
| Design structure | Piston slide |
| Type of reset | mechanical spring |
| Type of piloting | direct |
| Flow direction | non reversible |

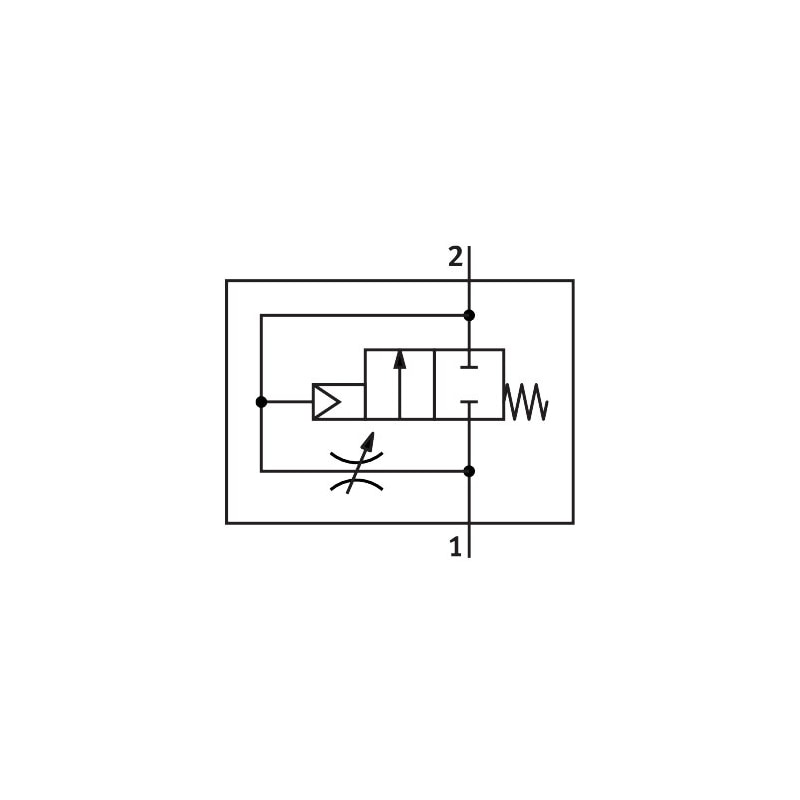

| Valve function | 2/2 closed, monostable |
| Operating pressure | 3 … 16 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4]Inert gases |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
