Maritime classification | See certificate |
---|---|

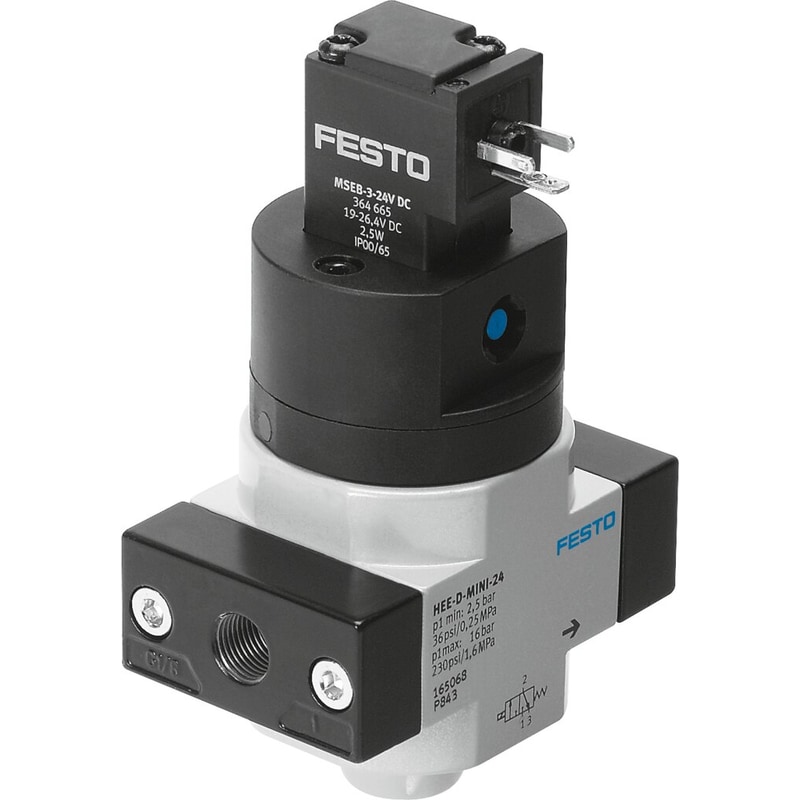

Type code | HEE |
Design | Piston gate valve |
Actuation type | Electrical |
Sealing principle | Soft |
Exhaust air function | Without flow control option |
Manual override | Detenting |
Reset method | Mechanical spring |
Type of control | Pilot-controlled |
Symbol | 991008 |
Valve function | 3/2, closed, monostable |
Operating pressure | 2.5 bar … 16 bar |
C value | 7 l/sbar |
b-value | 0.31 |
Standard nominal flow rate | 1500 l/min |
Duty cycle | 1 |
Coil characteristics | 24 V DC: 3.0 W |
Permissible voltage fluctuations | +/- 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4]Inert gas |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
Note on materials | RoHS-compliant |
Temperature of medium | -10 °C … 60 °C |
Type of mounting | Line installationWith accessories |
Mounting position | Any |
Flow direction | Non-reversible |
Product weight | 223 g |
Pneumatic connection 1 | G1/4 |
Pneumatic connection 2 | G¼ |
Pneumatic connection 3 | G1/8 |
Air quality class at the output | Inert gasCompressed air as per ISO 8573-1:2010 [7:4:4] |
Electrical connection | Form Cas per DIN EN 175301-803Plug |
Signal status display | With accessories |
Seals material | NBR |
Housing material | Die-cast aluminum |
