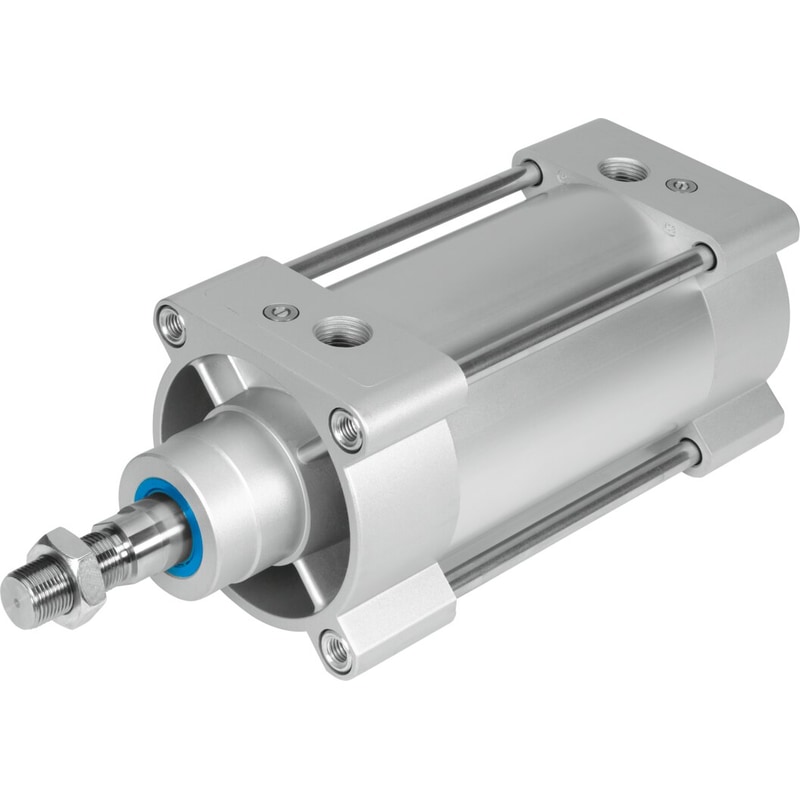

ISO cylinder DSBG-100-250-PPVA-N3 Stroke=250 mm, Piston diameter=100 mm, Piston rod thread=M20x1,5, Cushioning=PPV: Pneumatic cushioning adjustable at both ends, Assembly position=Any
DSBG-100-250-PPVA-N3
$697.62
SKU: 1646809
UNSPSC: 31251504
GTIN: 4052568244453
Stroke | 250 mm |
---|---|
Piston diameter | 100 mm |
Piston rod thread | M20x1,5 |
Cushioning | PPV: Pneumatic cushioning adjustable at both ends |
Assembly position | Any |
Conforms to standard | ISO 15552 |
Piston-rod end | Male thread |
Design structure | PistonPiston rodTie rodCylinder barrel |
Position detection | For proximity sensor |
Variants | Single-ended piston rod |
Operating pressure | 0.4 … 12 bar |
Mode of operation | double-acting |
Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
