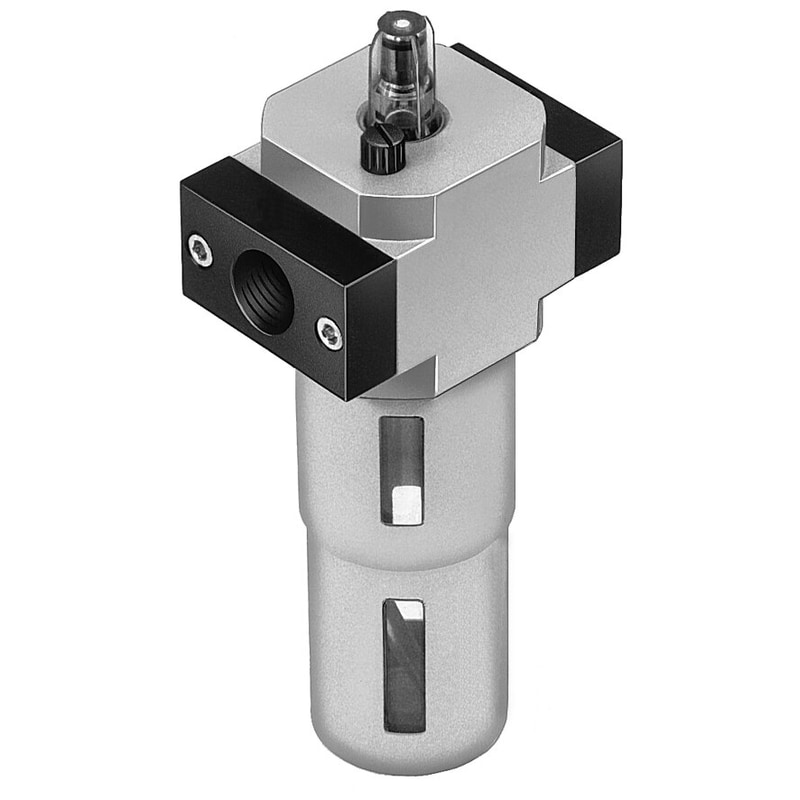

Air line lubricator LOE-3/8-D-MINI
Air line lubricator LOE-3/8-D-MINI - Image 2

Air line lubricator LOE-3/8-D-MINI

$100.65

SKU: 162680
UNSPSC: 27131604
GTIN: 4052568072414

Warehouse 1*: 0 in stock

Warehouse 2: Call for Availability

- +
SKU: 162680 Category: Tag:
LOE-D_ENUS.PDF
Brand:

lubricator LOE-3/8-D-MINI With metal bowl guard. Size=Mini, Series=D, Assembly position=Vertical +/- 5°, Design structure=proportional standard mist lubricator, Max. oil capacity=45 cm3

Size  Mini
Series  D
Assembly position  Vertical +/- 5°
Design structure  proportional standard mist lubricator
Max. oil capacity  45 cm3
Bowl guard  Metal bowl guard
Operating pressure  0 … 16 bar
Minimum flow rate for lubricator function  3 l/min
Standard nominal flow rate  2,700 l/min
Operating medium  Compressed air in accordance with ISO8573-1:2010 [7:4:4]Inert gases
Note on operating and pilot medium  Lubricated operation not possible
Corrosion resistance classification CRC  2 – Moderate corrosion stress
Storage temperature  ‘-10 … 60 °C
Weight 0.93476 lbs
Dimensions 7.086614 × 2.047244 × 3.188976 in
Size

Mini
Series

D
Mounting position

Vertical +/- 5°
Structural design

Proportional standard oil mist lubricator
Max. oil capacity

45 cm³
Bowl guard

Metal bowl guard
Symbol

00991532
Operating pressure

0 psi … 232 psi
Minimum flow rate for lubricator function

3 l/min
Normal nominal flow rate (normalized to DIN 1343)

2700 l/min
Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gas
Information on operating and pilot media

Operation with oil lubrication not possible
Corrosion resistance class (CRC)

2 – Moderate corrosion stress
LABS (PWIS) conformity

VDMA24364-B1/B2-L
Storage temperature

-10 °C … 60 °C
Air quality class at the output

Compressed air as per ISO 8573-1:2010 [7:4:-], Inert gas
Temperature of medium

-10 °C … 60 °C
Ambient temperature

-10 °C … 60 °C
Product weight

270 g
Type of mounting

With accessories
Pneumatic connection 1

G3/8
Pneumatic connection 2

G3/8
Note on materials

RoHS-compliant
Material of bowl

PC

Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.

Frequently Bought Together

  • VUVS-L25-M52-MD-G14-F8SKU:575509 Add to cart
    VUVS

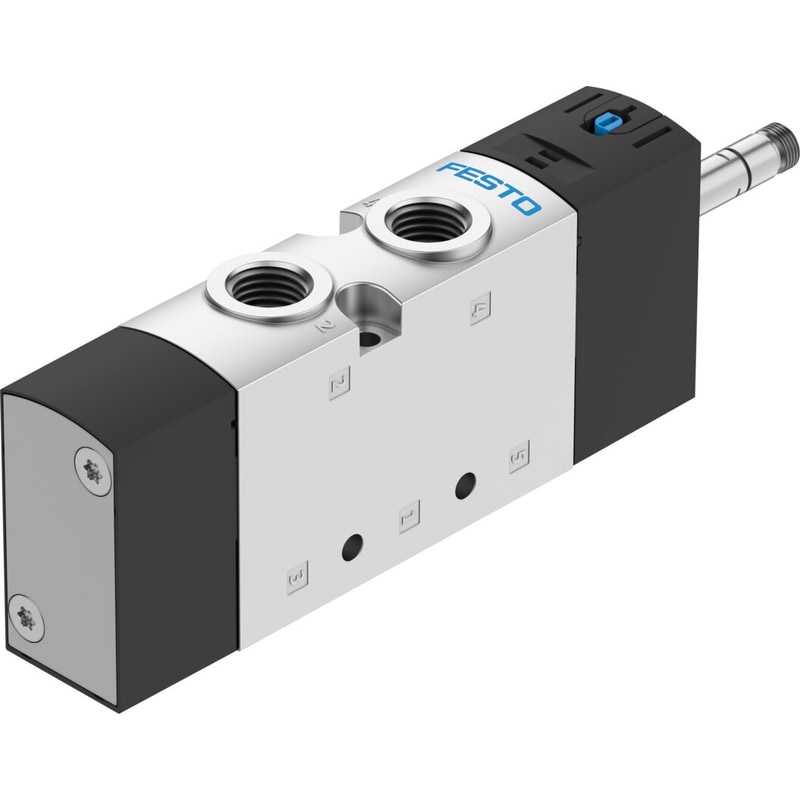

    VUVS-L25-M52-MD-G14-F8

    Rated 0 out of 5
    (0)
    $78.20 Add to cart
  • VUVS-L25-P53C-MD-G14-F8SKU:575523 Add to cart
    VUVS

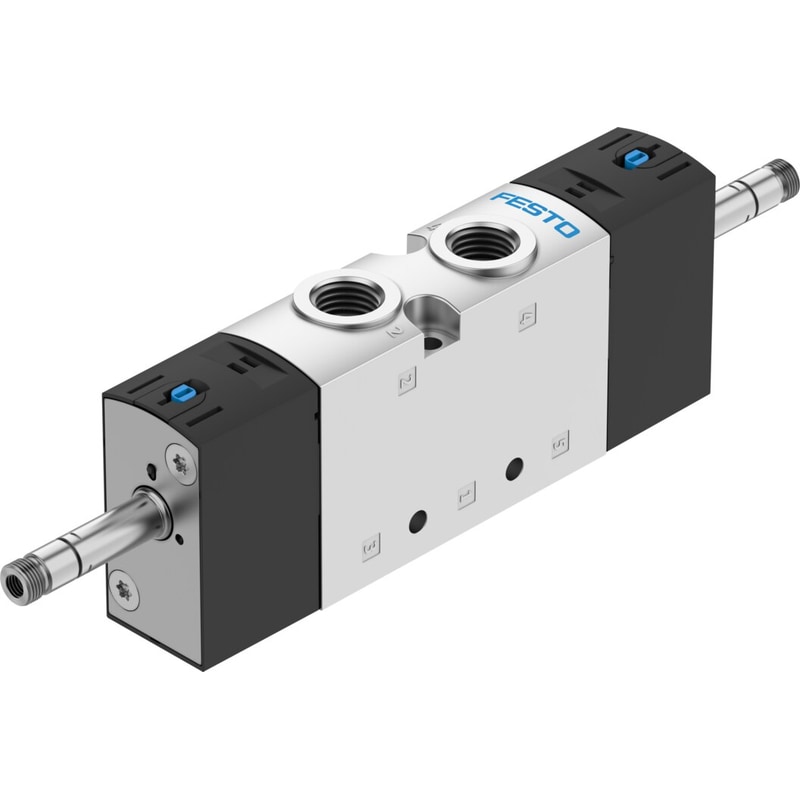

    VUVS-L25-P53C-MD-G14-F8
