| Series | D |
|---|---|
| Size | Mini |

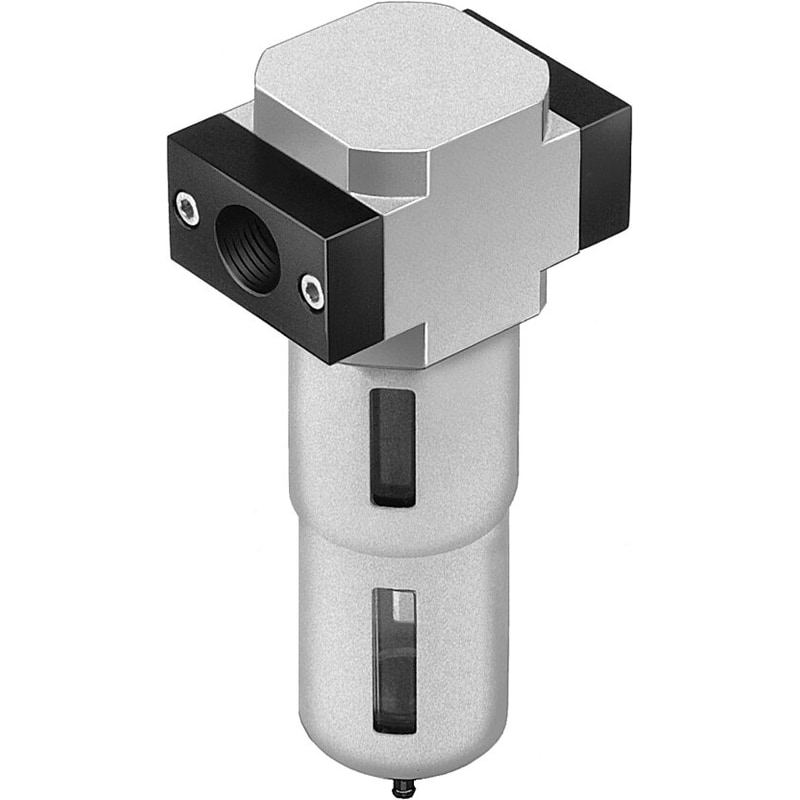

| Type code | LFMA |
| Design | Fiber filter |
| Grade of filtration | 0.01 µm |
| Condensate drain | Manually rotating |
| Symbol | 991519 |
| Operating pressure | 1 bar … 16 bar |
| Operating medium | Inert gasCompressed air as per ISO 8573-1:2010 [6:8:4] |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [1:7:2]Inert gas |
| Max. standard flow rate for air quality class | 410 l/min |
| Min. standard flow rate for air quality class | 100 l/min |
| Filter efficiency | 0.999999 |
| Bowl guard | Metal bowl guard |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Temperature of medium | 1.5 °C … 60 °C |
| Ambient temperature | -10 °C … 60 °C |
| Residual oil content | 0.01 mg/m³ |
| Type of mounting | With accessoriesOptionally:Line installation |
| Mounting position | Vertical +/- 5° |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G¼ |
| Housing material | Die-cast zinc |
| Material of bowl | PC |
| Note on materials | Free of copper and PTFERoHS-compliant |
| Product weight | 250 g |
| Weight | 0.924927 lbs |
|---|---|
| Dimensions | 7.165354 × 2.047244 × 3.070866 in |
| Series | D |
| Size | Mini |
| Structural design | Fiber filter |
| Grade of filtration | 0.01 µm |
| Condensate drain | Manually rotating |
| Symbol | 00991519 |
| Operating pressure | 1 bar … 16 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [6:8:4], Inert gas |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [1:7:2], Inert gas |
| Max. standard flow rate for air quality class | 410 l/min |
| Min. standard flow rate for air quality class | 100 l/min |
| Filter efficiency | 99.9999 % |
| Bowl guard | Metal bowl guard |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | 1.5 °C … 60 °C |
| Ambient temperature | -10 °C … 60 °C |
| Residual oil content | 0.01 mg/m³ |
| Type of mounting | With accessories |
| Mounting position | Vertical +/- 5° |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G¼ |
| Housing material | Die-cast zinc |
| Compressed air filter material | Borosilicate fiber |
| Material of bowl | PC |
| Note on materials | RoHS-compliant |
| Product weight | 250 g |
