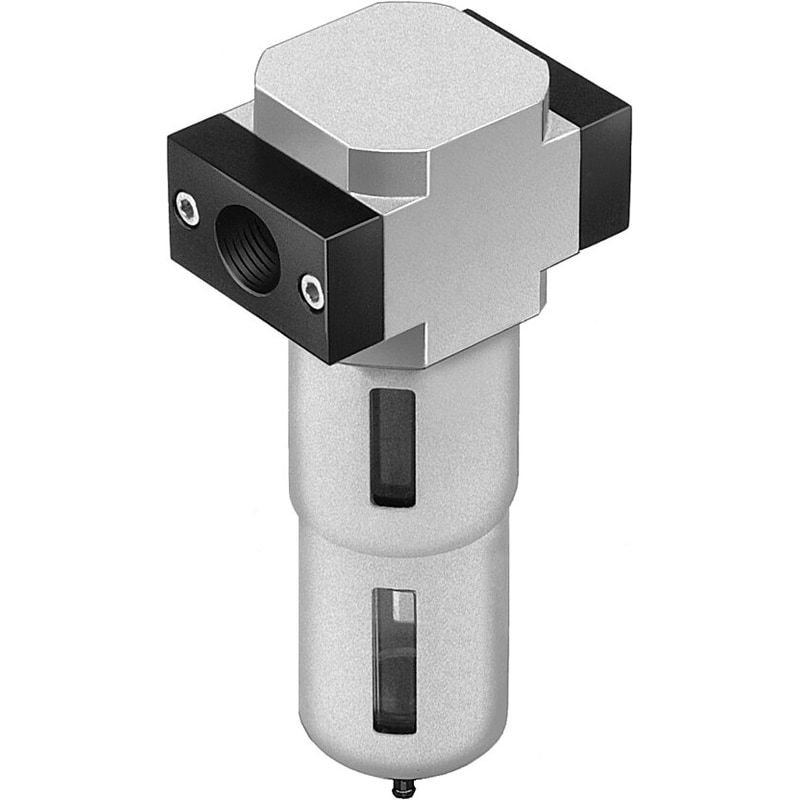

Name: LF-3/4-D-5M-MIDI
Brand: Festo
SKU: 162615
Availability: InStock

filter LF-3/4-D-5M-MIDI Degree of filtration 5 µm, with bowl guard and manual condensate drain. Size=Midi, Series=D, Assembly position=Vertical +/- 5°, Grade of filtration=5 µm, Condensate drain=manual rotary

Size	Midi
Series	D
Assembly position	Vertical +/- 5°
Grade of filtration	5 µm
Condensate drain	manual rotary
Design structure	Sintered filter with centrifugal separator
Max. condensate volume	43 cm3
Bowl guard	Metal bowl guard
Operating pressure	0 … 16 bar
Standard nominal flow rate	2,000 l/min
Operating medium	Compressed air to ISO 8573-1:2010 [-:9:-]Inert gases
Corrosion resistance classification CRC	2 – Moderate corrosion stress
Storage temperature	‘-10 … 60 °C

Weight	1.860922 lbs
Dimensions	8.582677 × 2.874016 × 3.976378 in
Size	Midi
Series	D
Mounting position	Vertical +/- 5°
Grade of filtration	5 µm
Condensate drain	Manually rotating
Structural design	Sinter filter with centrifugal separator
Bowl guard	Metal bowl guard
Symbol	00991519
Operating pressure	0 bar … 16 bar
Normal nominal flow rate (normalized to DIN 1343)	2000 l/min
Operating medium	Inert gas
Corrosion resistance class (CRC)	2 – Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Storage temperature	-10 °C … 60 °C
Air quality class at the output	Compressed air as per ISO 8573-1:2010 [6:8:4], Inert gas
Temperature of medium	-10 °C … 60 °C
Ambient temperature	-10 °C … 60 °C
Product weight	700 g
Type of mounting	With accessories
Pneumatic connection 1	G3/4
Pneumatic connection 2	G3/4
Note on materials	RoHS-compliant
Compressed air filter material	PE
Housing material	Die-cast zinc
Material of bowl	PC
