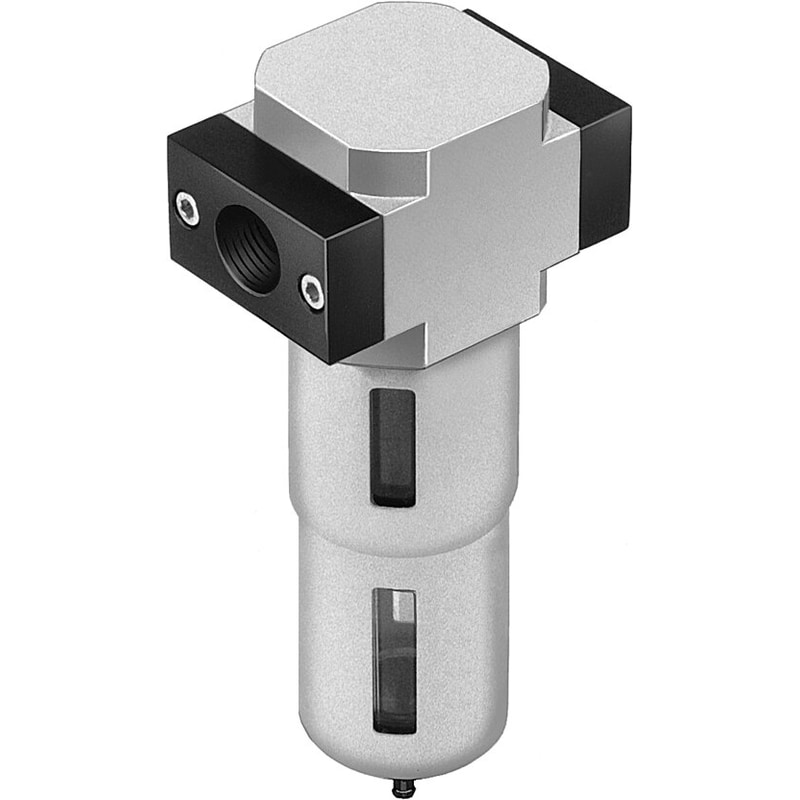

Name: LF-1/4-D-5M-MINI
Brand: Festo
SKU: 162611
Availability: InStock

filter LF-1/4-D-5M-MINI Degree of filtration 5 µm, with bowl guard and manual condensate drain. Size=Mini, Series=D, Assembly position=Vertical +/- 5°, Grade of filtration=5 µm, Condensate drain=manual rotary

Size	Mini
Series	D
Assembly position	Vertical +/- 5°
Grade of filtration	5 µm
Condensate drain	manual rotary
Design structure	Sintered filter with centrifugal separator
Max. condensate volume	22 cm3
Bowl guard	Metal bowl guard
Operating pressure	0 … 16 bar
Standard nominal flow rate	950 l/min
Operating medium	Compressed air to ISO 8573-1:2010 [-:9:-]Inert gases
Corrosion resistance classification CRC	2 – Moderate corrosion stress
Air purity class at output	Compressed air in accordance with ISO8573-1:2010 [6:8:4]Inert gases

Weight	0.858039 lbs
Dimensions	7.165354 × 3.070866 × 2.047244 in
Size	Mini
Series	D
Mounting position	Vertical +/- 5°
Grade of filtration	5 µm
Condensate drain	Manually rotating
Structural design	Sinter filter with centrifugal separator
Bowl guard	Metal bowl guard
Symbol	00991519
Operating pressure	0 bar … 16 bar
Normal nominal flow rate (normalized to DIN 1343)	950 l/min
Operating medium	Inert gas
Corrosion resistance class (CRC)	2 – Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Air quality class at the output	Compressed air as per ISO 8573-1:2010 [6:8:4], Inert gas
Temperature of medium	-10 °C … 60 °C
Ambient temperature	-10 °C … 60 °C
Product weight	250 g
Type of mounting	With accessories
Pneumatic connection 1	G1/4
Pneumatic connection 2	G¼
Note on materials	RoHS-compliant
Compressed air filter material	PE
Housing material	Die-cast zinc
Material of bowl	PC
