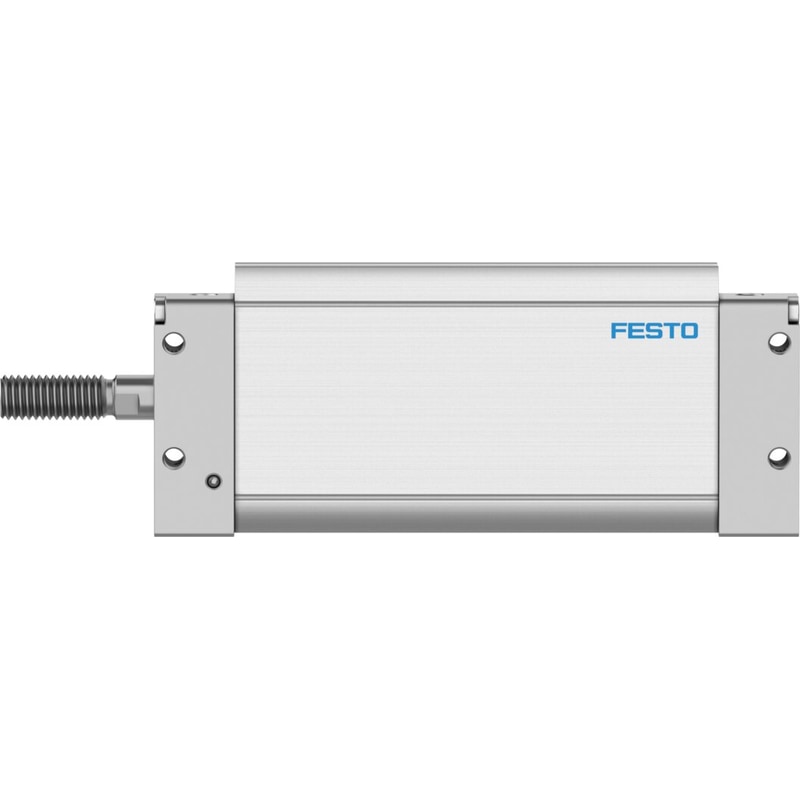

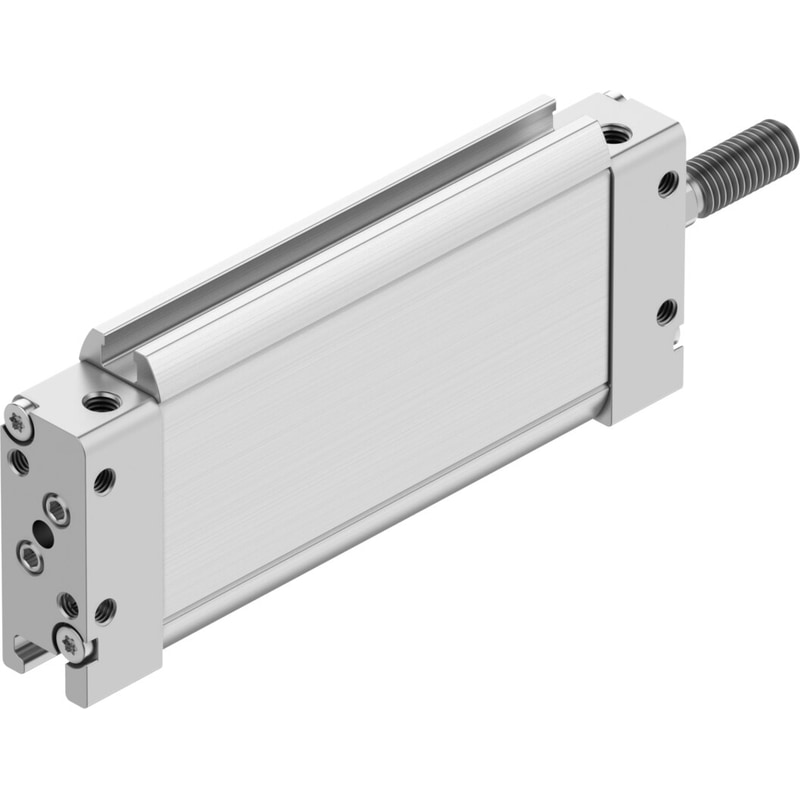

flat cylinder DZF-18-50-A-P-A Non-rotating, for position sensing, with elastic cushioning rings in end positions. Various mounting options, with or without additional mounting components. Stroke=50 mm, Piston diameter=(* 18 mm, * Equivalent diameter), Max. angular deflection of piston rod +/-=1,2 deg, Cushioning=P: Flexible cushioning rings/plates at both ends, Assembly position=Any
| Stroke | 50 mm |
|---|---|
| Piston diameter | 18 mmEquivalent diameter |
| Max. angular deflection of piston rod +/-Â | 1.2 deg |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Mode of operation | double-acting |
| Design structure | PistonPiston rod |
| Position detection | For proximity sensor |
| Protection against torque/guide | Oval piston |
| Operating pressure | 1 … 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRCÂ | 2 – Moderate corrosion stress |
