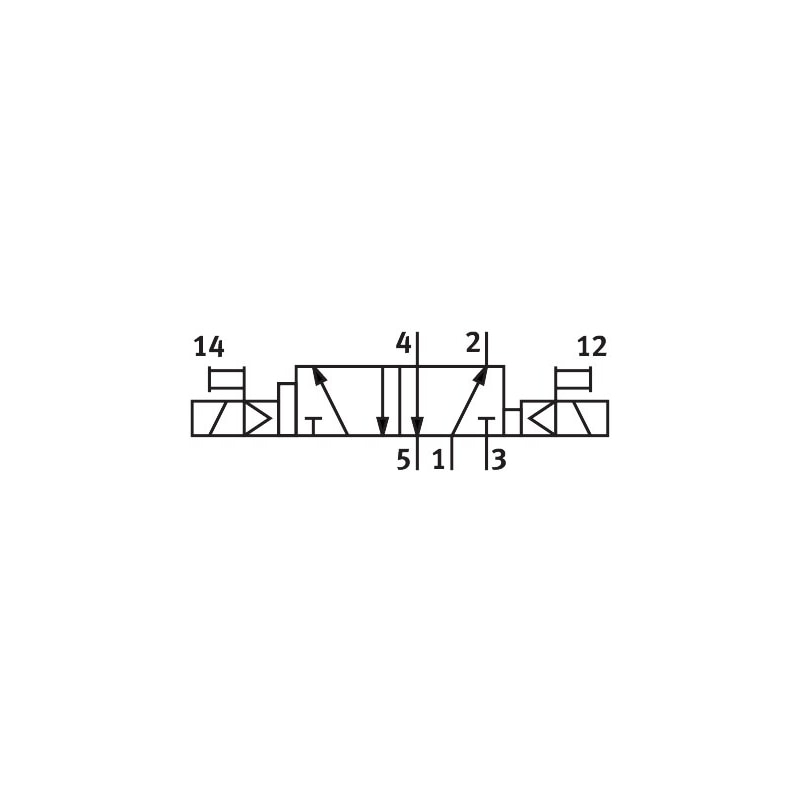

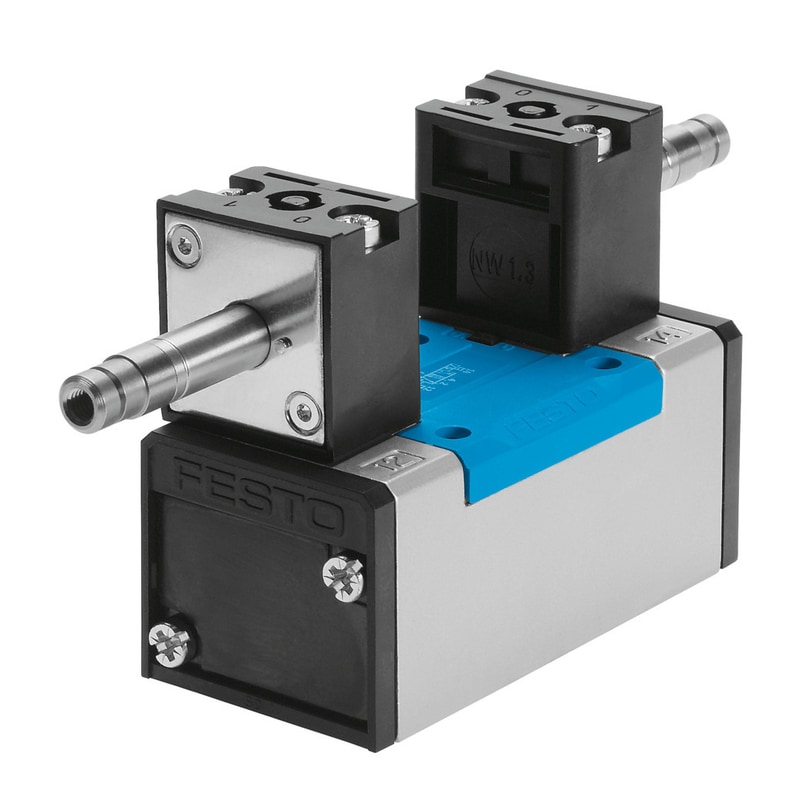

solenoid valve JMN1DH-5/2-D-3-C As per ISO 5599/1, with manual overrides, without solenoid coils or sockets. Solenoid coils and sockets should be ordered separately. Valve function=5/2 bistable-dominant, Type of actuation=electrical, Width=65 mm, Standard nominal flow rate=4500 l/min, Operating pressure=2 – 10 bar
| Valve function | 5/2 bistable-dominant |
|---|---|
| Type of actuation | electrical |
| Width | 65 mm |
| Standard nominal flow rate | 4,500 l/min |
| Operating pressure | 2 … 10 bar |
| Design structure | Piston slide |
| Protection class | IP65 |
| Authorisation | c UL us – Recognized (OL) |
| Maritime classification | see certificate |
| Nominal size | 14.5 mm |
| Grid dimension | 71 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
