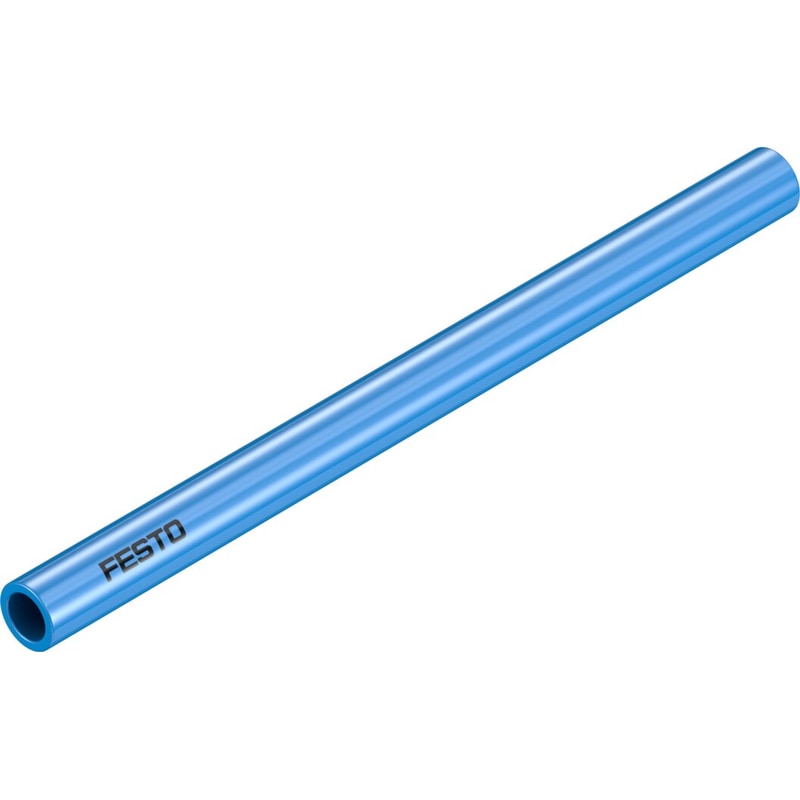

| Pneumatic tubing test conditions | Suitability for energy chains: >5 million cycles as per FN 942021 |
|---|---|
| Tubing characteristics | Suitable for energy chains in applications with high cycle rates |
| Outside diameter | 16 mm |
| Bending radius relevant for flow rate | 88 mm |
| Inside diameter | 11 mm |
| Min. bending radius | 45 mm |
| Type code | PUN |
| Temperature-dependent operating pressure | -0.95 bar … 10 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Material fire test | UL94 HB |
| Ambient temperature | -35 °C … 60 °C |
| Certification | German Technical Control Board (TÃœV) |
| Product weight by length | 0.1294 kg/m |
| Pneumatic connection | For plug connection outside diameter 16 mm |
| Color | Blue |
| Shore hardness | D 52 +/-3 |
| Note on materials | Free of copper and PTFERoHS-compliant |
| Material of pneumatic tubing | TPE-U(PU) |
| Weight | 0.308603 lbs |
|---|---|
| Dimensions | 19.88189 × 19.88189 × 6.102362 in |
| Outside diameter | 16 mm |
| Inside diameter | 11 mm |
| Temperature-dependent operating pressure | -0.95 bar – 10 bar |
| Ambient temperature | -35?C – 60?C |
