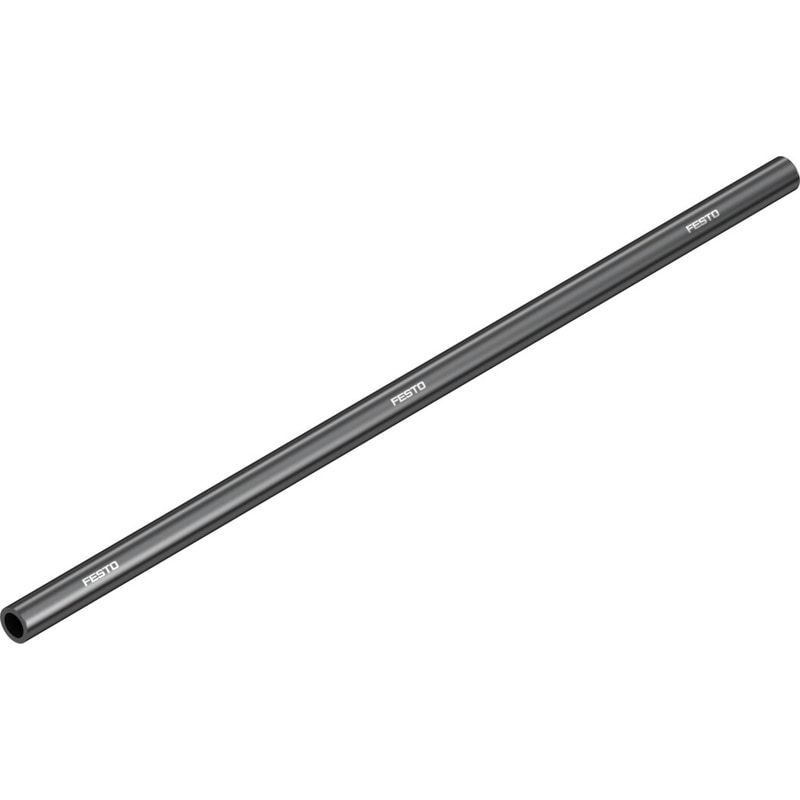

PUN-8X1,25-SW Plastic tubing (Pack of 50)

$125.50

SKU: 159667 Category: Tags: ,
Pneumatic tubing test conditions Suitability for energy chains: >5 million cycles as per FN 942021
Tubing characteristics Suitable for energy chains in applications with high cycle rates
Outside diameter 8 mm
Bending radius relevant for flow rate 37 mm
Inside diameter 5.7 mm
Min. bending radius 24 mm
Type code PUN
Temperature-dependent operating pressure -0.95 bar … 10 bar
Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-]
Material fire test UL94 HB
Ambient temperature -35 °C … 60 °C
Certification German Technical Control Board (TÃœV)
Product weight by length 0.0302 kg/m
Pneumatic connection For plug connection outside diameter 8 mmFor barbed fitting, inside diameter 6 mm, with union nutFor barbed fitting, inside diameter 6 mm
Color Black
Shore hardness D 52 +/-3
Note on materials Free of copper and PTFERoHS-compliant
Material of pneumatic tubing TPE-U(PU)
