Name: LF-3/8-D-MIDI-A
Brand: Festo
SKU: 159577
Availability: InStock

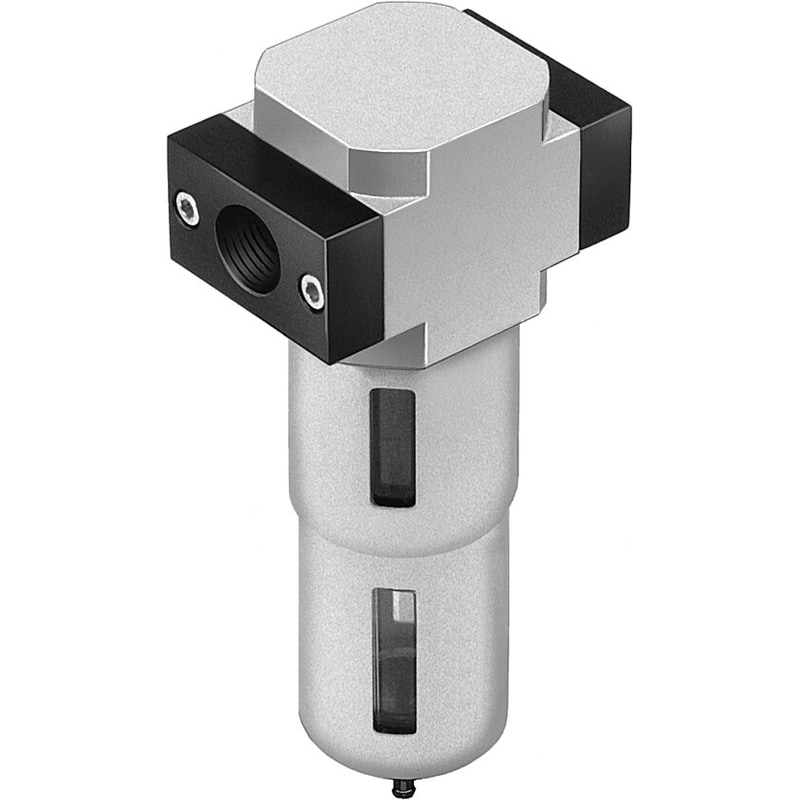

filter LF-3/8-D-MIDI-A With metal bowl guard. Size=Midi, Series=D, Assembly position=Vertical +/- 5°, Grade of filtration=40 µm, Condensate drain=fully automatic

Size	Midi
Series	D
Assembly position	Vertical +/- 5°
Grade of filtration	40 µm
Condensate drain	fully automatic
Design structure	Sintered filter with centrifugal separator
Max. condensate volume	43 cm3
Bowl guard	Metal bowl guard
Operating pressure	2 … 12 bar
Standard nominal flow rate	2,700 l/min
Operating medium	Compressed air to ISO 8573-1:2010 [7:9:-]Inert gases
Corrosion resistance classification CRC	2 – Moderate corrosion stress
Storage temperature	‘-10 … 60 °C

Weight	1.971153 lbs
Dimensions	8.464567 × 2.874016 × 3.897638 in
Size	Midi
Series	D
Mounting position	Vertical +/- 5°
Grade of filtration	40 µm
Condensate drain	Fully automatic
Structural design	Sinter filter with centrifugal separator
Bowl guard	Metal bowl guard
Symbol	00991520
Operating pressure	2 bar … 12 bar
Normal nominal flow rate (normalized to DIN 1343)	2700 l/min
Operating medium	Compressed air as per ISO 8573-1:2010 [7:9:-], Inert gas
Corrosion resistance class (CRC)	2 – Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Storage temperature	-10 °C … 60 °C
Air quality class at the output	Compressed air as per ISO 8573-1:2010 [7:8:4], Inert gas
Temperature of medium	5 °C … 60 °C
Ambient temperature	5 °C … 60 °C
Product weight	700 g
Type of mounting	With accessories
Pneumatic connection 1	G3/8
Pneumatic connection 2	G3/8
Note on materials	RoHS-compliant
Compressed air filter material	PE
Housing material	Die-cast zinc
Material of bowl	PC
