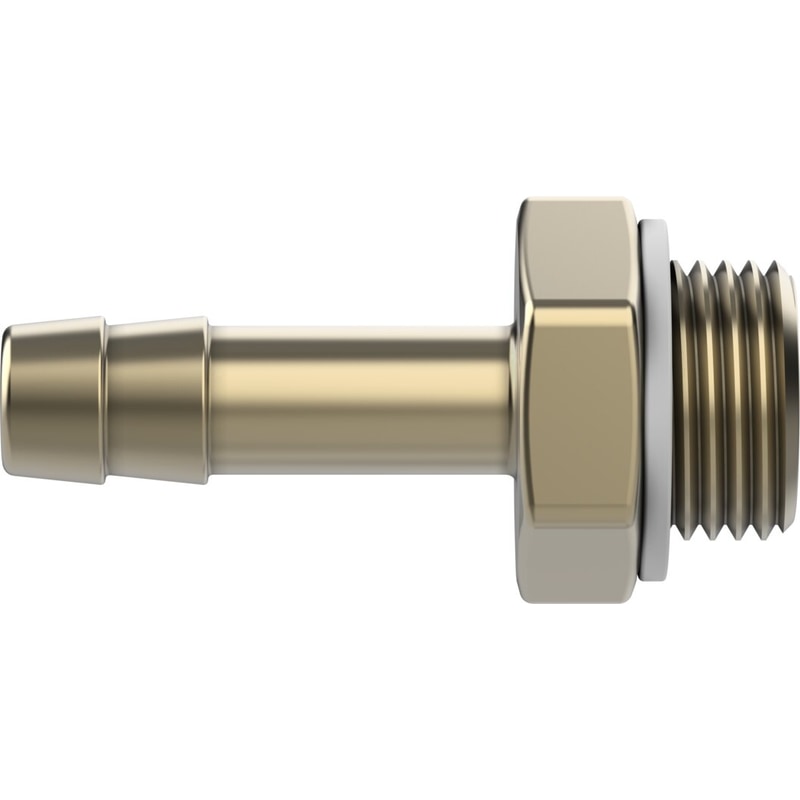

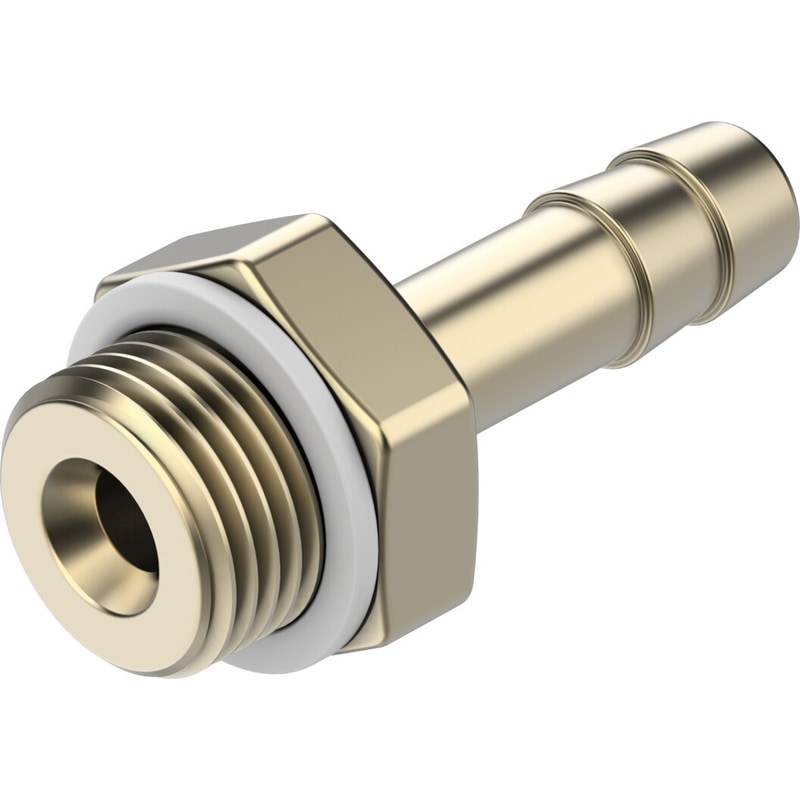

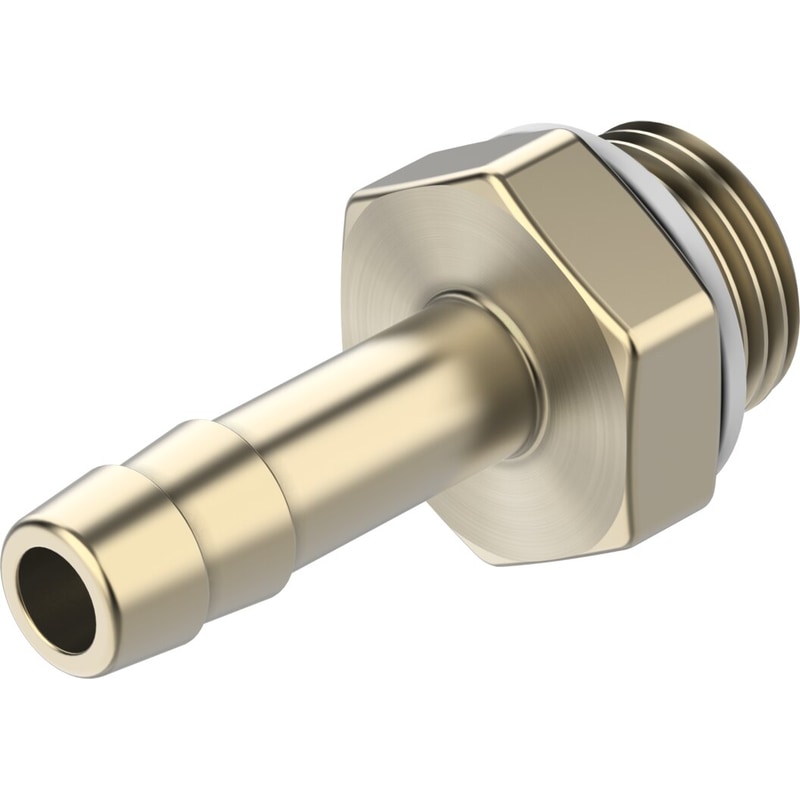

N-1/4-P-9-MS Barbed hose fitting

Name: N-1/4-P-9-MS Barbed hose fitting
Brand: Festo
SKU: 15632
Availability: InStock

$9.33

Price per unit

Sold in packs of 10

SKU: 15632 Category: C-P-N-P Tags: 2021u, fitting50, Pack of 10

Brand: Festo

barbed hose fitting
N-1/4-P-9-MS
Part number: 15632

Brass version

Fitting Type	Barbed Straight
Nominal size	6.5 mm
Type of seal on screw-in stud	Sealing ring
Operating pressure complete temperature range	‘-0.95 … 16 bar
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:-:-]
Note on operating and pilot medium	Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC	1 – Low corrosion stress
connection 1	Male thread G1/4
connection 2	For tubing internal diameter 9 mm
Materials note	Conforms to RoHS

Weight	0.046848 lbs
Dimensions	3.543307 × 2.755906 × 0.787402 in
Pneumatic connection, port 1	Male thread G1/4
Pneumatic connection, port 2	For tubing inside diameter of 9 mm
Nominal size	6.5 mm
