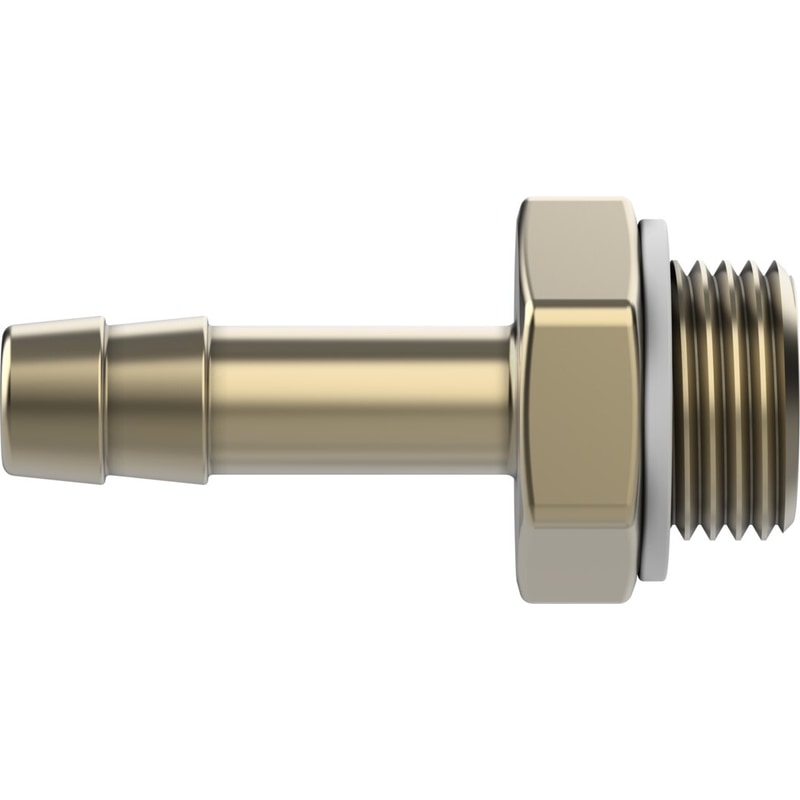

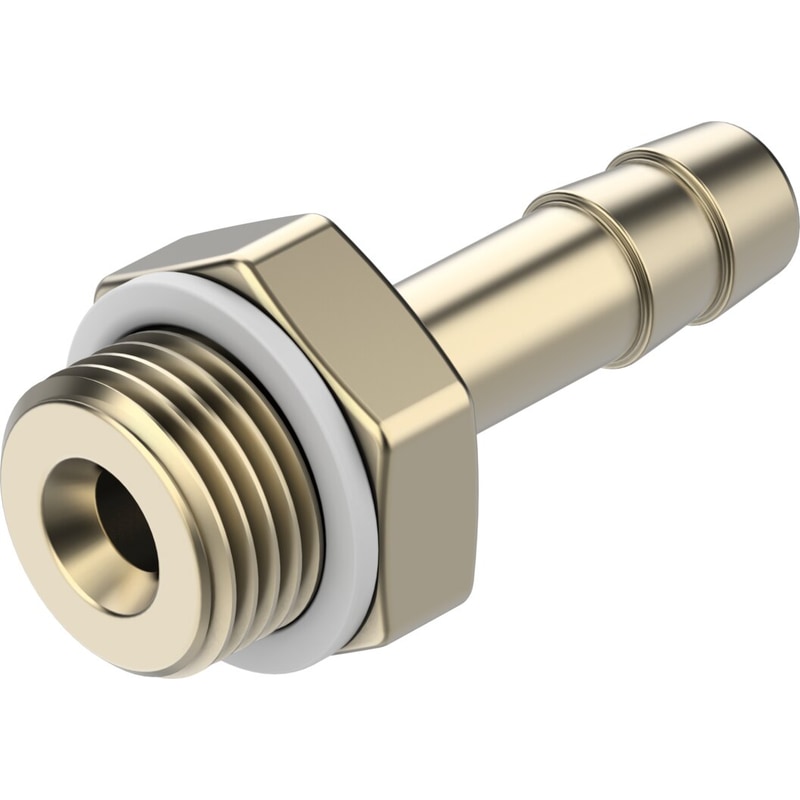

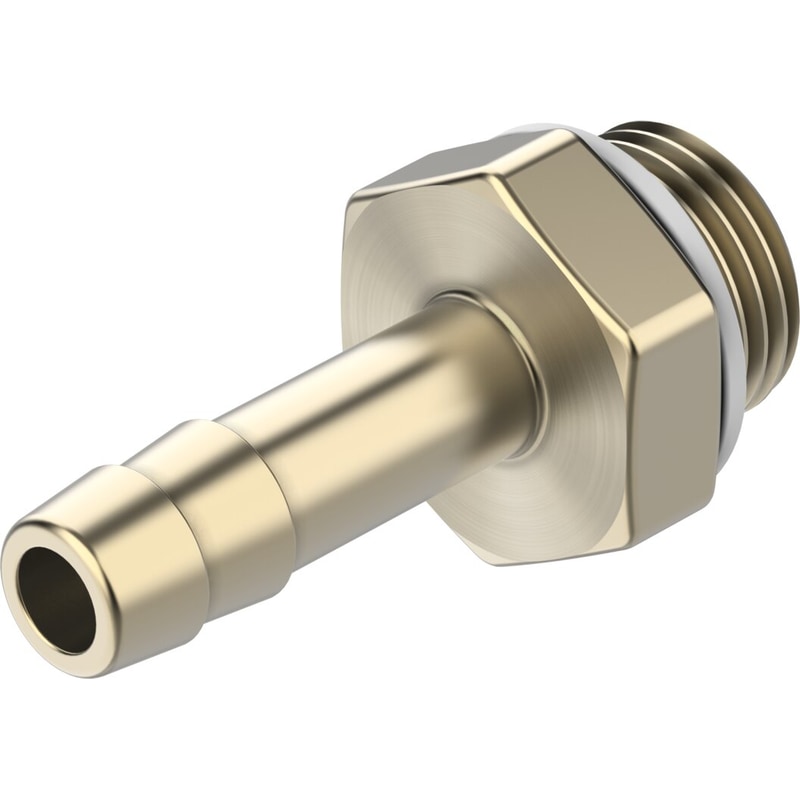

N-1/8-P-6-MS Barbed hose fitting

Name: N-1/8-P-6-MS Barbed hose fitting
Brand: Festo
SKU: 15630
Availability: InStock

$8.30

Price per unit

Sold in packs of 10

SKU: 15630 Category: C-P-N-P Tags: 2021u, fitting50, Pack of 10

Brand: Festo

barbed hose fitting
N-1/8-P-6-MS
Part number: 15630

Brass version

Fitting Type	Barbed Straight
Nominal size	4.5 mm
Type of seal on screw-in stud	Sealing ring
Operating pressure complete temperature range	‘-0.95 … 16 bar
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:-:-]
Note on operating and pilot medium	Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC	1 – Low corrosion stress
connection 1	Male thread G1/8
connection 2	For tubing outside diameter 8 mm
Materials note	Conforms to RoHS
