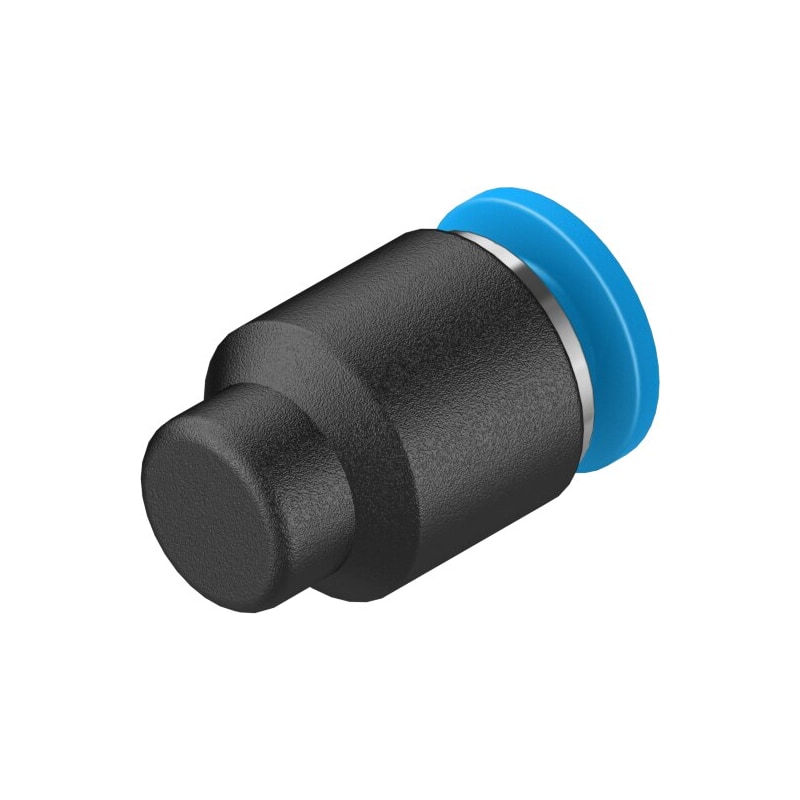

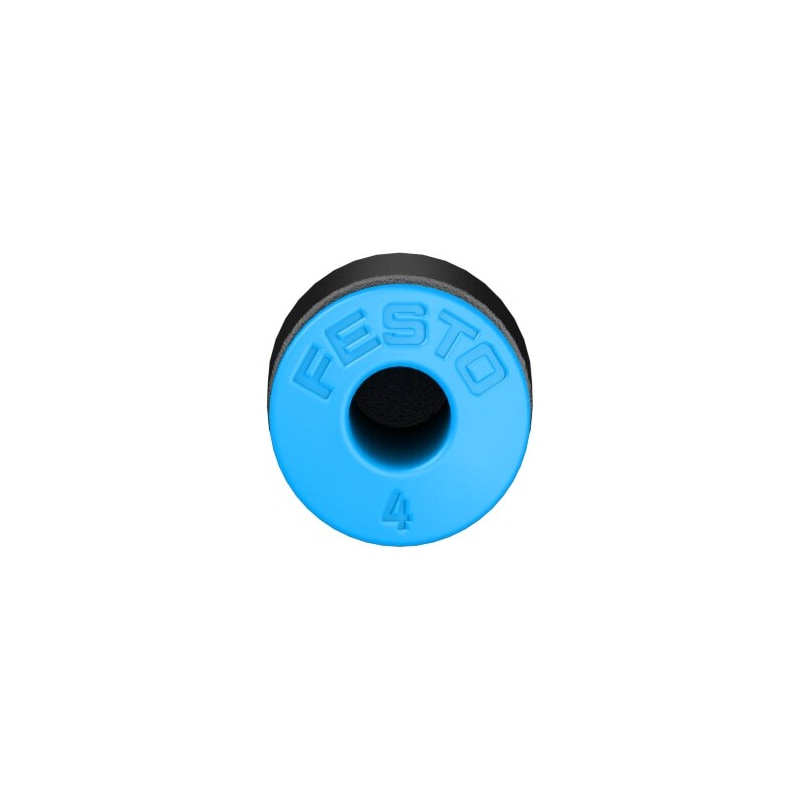

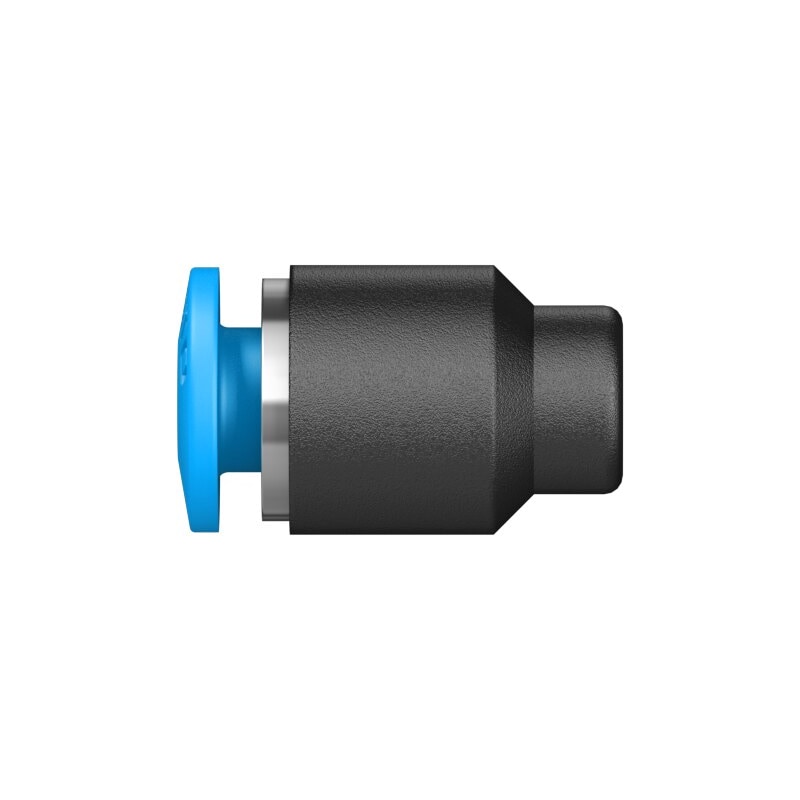

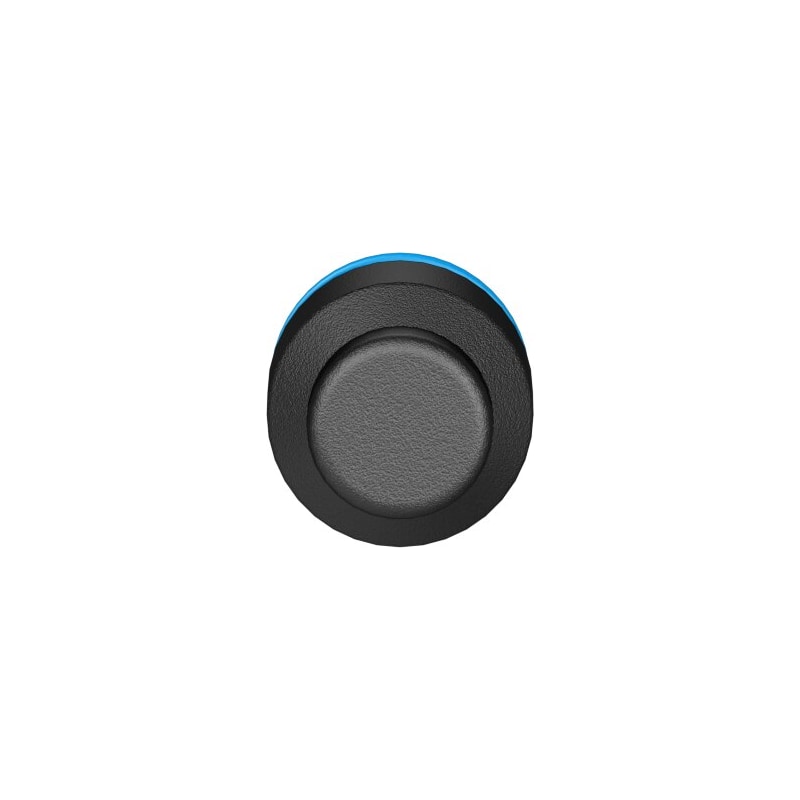

push-in cap QSC-3/16-U Size=Standard, Assembly position=Any, Container size=1, Design structure=Push/pull principle, Operating pressure complete temperature range=-0,95 – 10 bar
| Fitting Type | Push-in Plug |
|---|---|
| Size | Standard |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | ‘-0.95 … 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRCÂ | 1 – Low corrosion stress |
| Ambient temperature | ‘-10 … 60 °C |
| Maritime classification | see certificate |
| connection 1Â | 3/16″ outside diameter, for tubing |
| Colour of release ring | Grey |
| Materials note | Conforms to RoHS |
| Material housing | PBT |
| Material release ring | POM |
| Material of tubing seal | NBR |
| Material of tube retaining claw | High alloy steel, non-corrosive |
