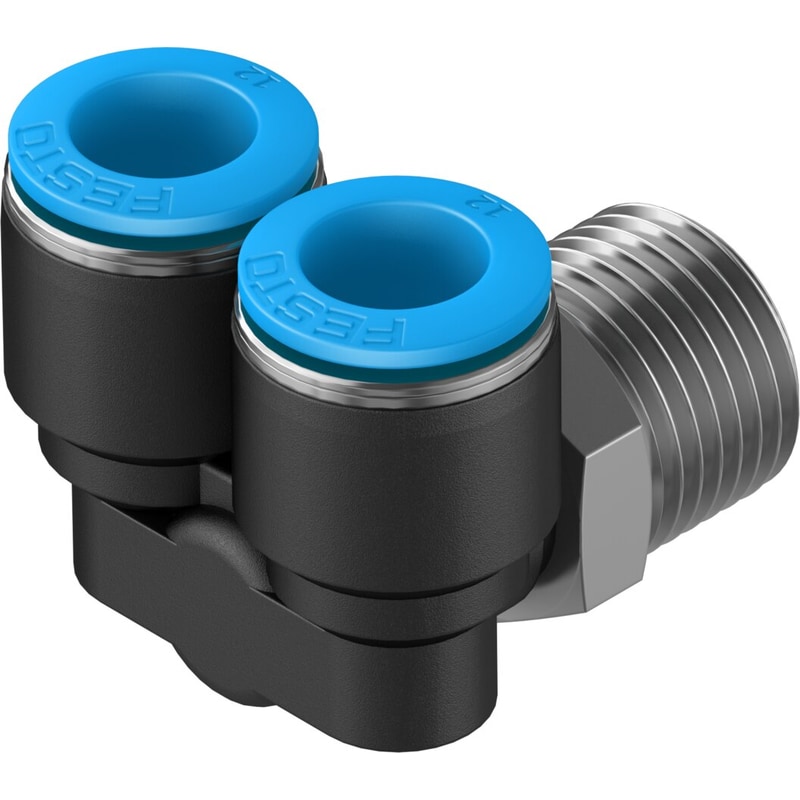

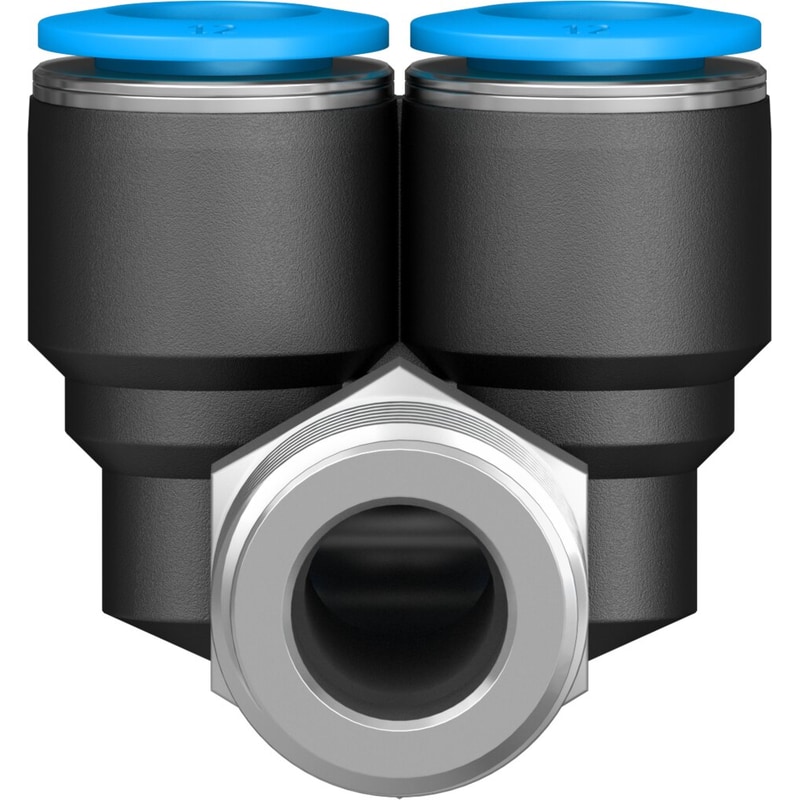

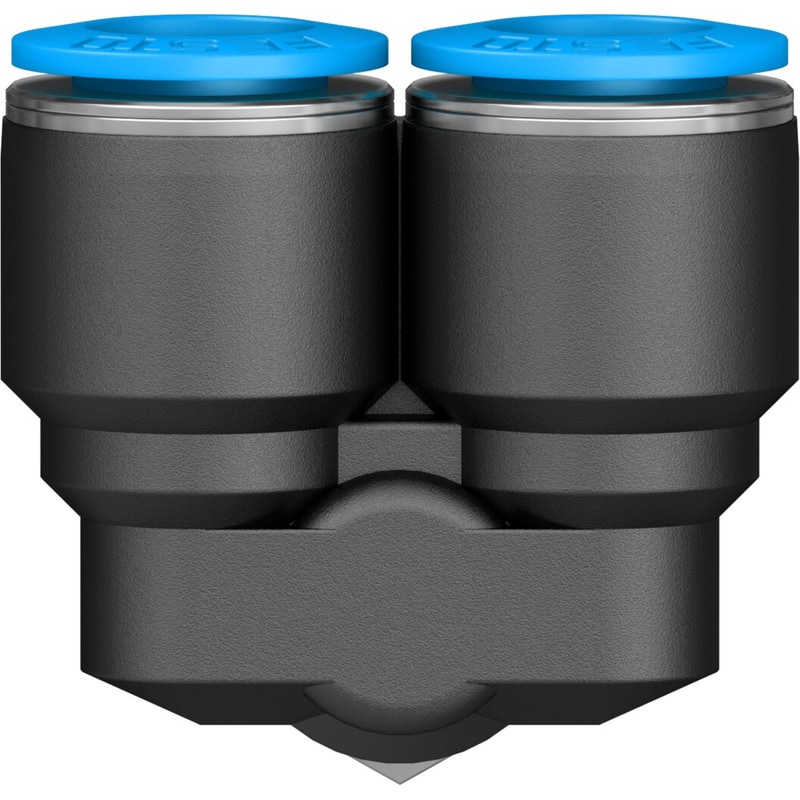

QSYL-1/8-5/16-U push-in T-fitting

$6.53

SKU: 153786 Category: Tag: Brand:

push-in T-fitting QSYL-1/8-5/16-U 360° orientable, male thread with external hexagon. Size=Standard, Nominal size=5,7 mm, Type of seal on screw-in stud=coating, Assembly position=Any, Container size=1

Fitting Type2 Tier Male Banjo
Size Standard
Nominal size 5.7 mm
Type of seal on screw-in stud coating
Assembly position Any
Container size 1
Design structure Push/pull principle
Operating pressure complete temperature range ‘-0.95 … 10 bar
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:-:-]
Note on operating and pilot medium Lubricated operation possible
Corrosion resistance classification CRC 1 – Low corrosion stress
Ambient temperature ‘-10 … 60 °C
Maritime classification see certificate
Max. tightening torque 8 Nm
Product weight 21 g
Number of outputs 2
Number of supply lines 1
connection 1 Male thread NPT1/8-27
connection 2 5/16″ outside diameter, for tubing
Colour of release ring Grey
Fitting Type

2 Tier Male Banjo

Size

Standard

Nominal size

5.7 mm

Type of seal on screw-in stud

coating

Assembly position

Any

Container size

1

Design structure

Push/pull principle

Operating pressure complete temperature range

-0.95 … 10 bar

Operating medium

Compressed air in accordance with ISO8573-1:2010 [7:-:-]

Note on operating and pilot medium

Lubricated operation possible

Corrosion resistance classification CRC

1 – Low corrosion stress

Ambient temperature

-10 … 60 °C

Maritime classification

see certificate

Max. tightening torque

8 Nm

Product weight

21 g

Number of outputs

2

Number of supply lines

1

connection 1

Male thread NPT1/8-27

connection 2

5/16" outside diameter, for tubing

Colour of release ring

Grey
