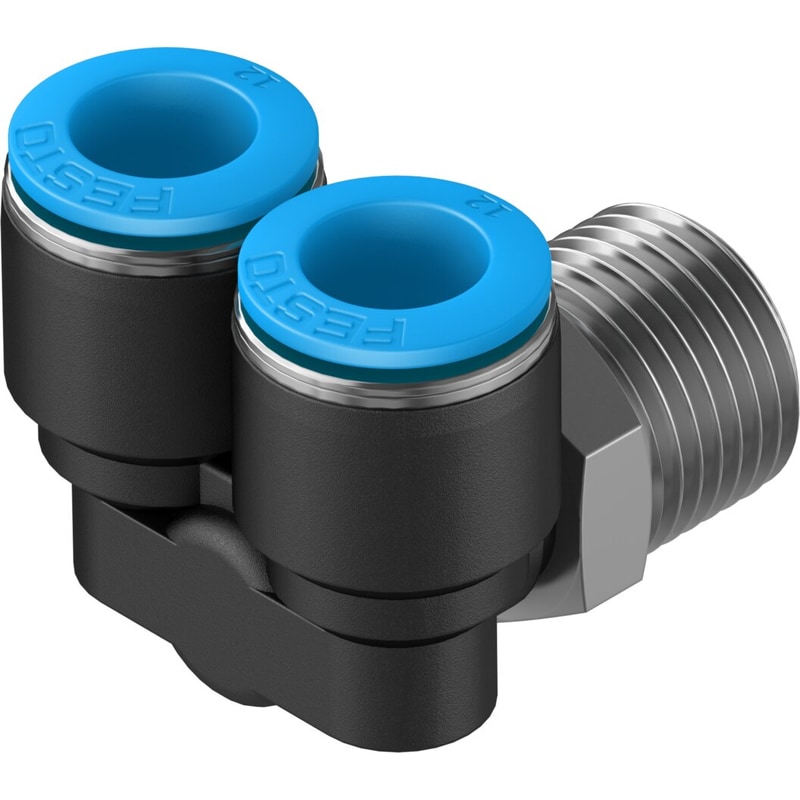

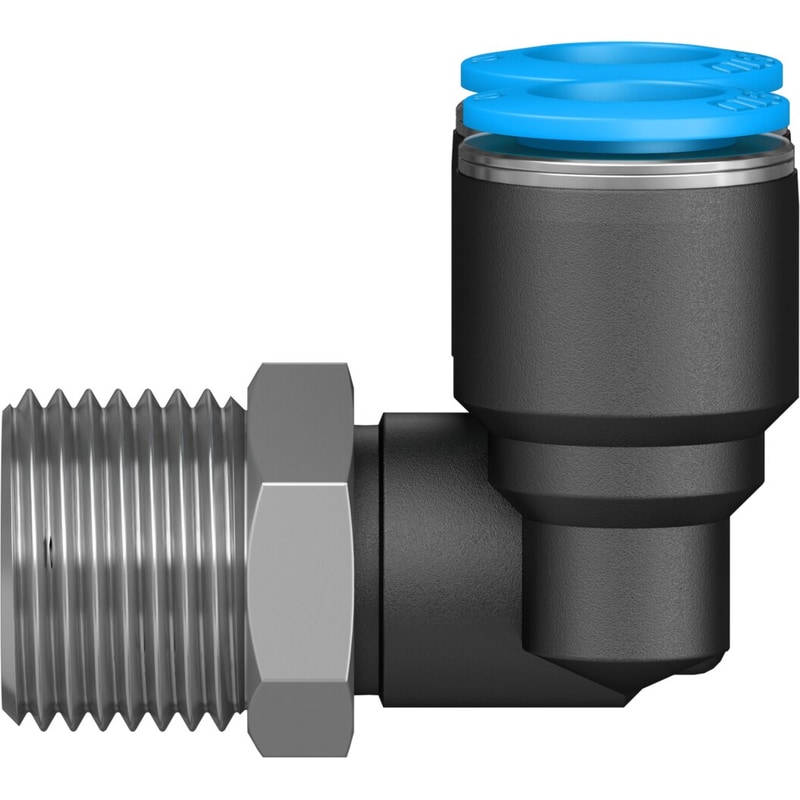

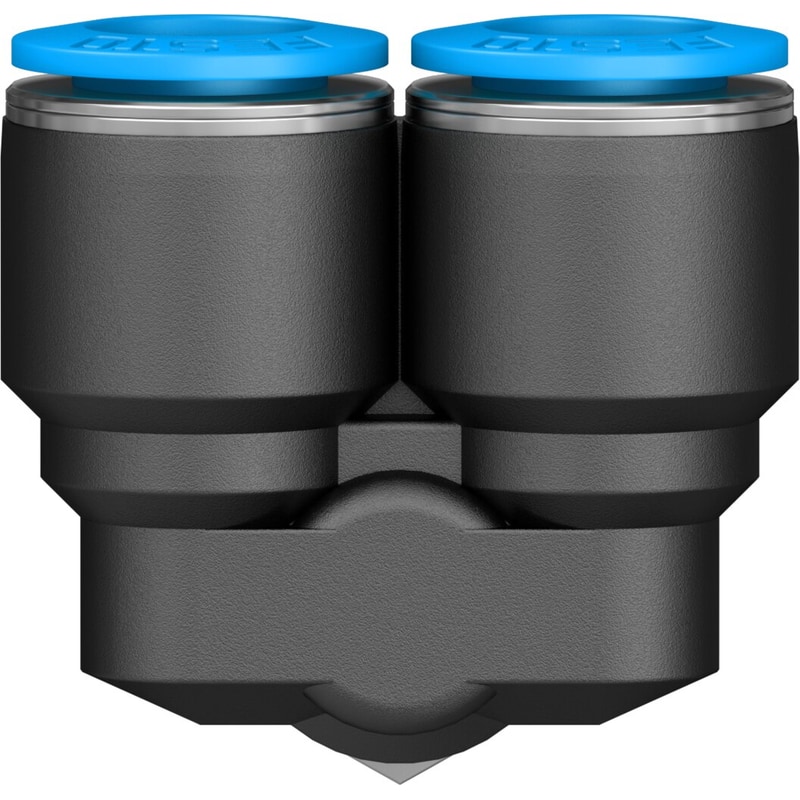

push-in T-fitting QSYL-1/4-5/32-U 360° orientable, male thread with external hexagon. Size=Standard, Nominal size=3,9 mm, Type of seal on screw-in stud=coating, Assembly position=Any, Container size=1
| Fitting Type | 2 Tier Male Banjo |
|---|---|
| Size | Standard |
| Nominal size | 3.9 mm |
| Type of seal on screw-in stud | coating |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | ‘-0.95 … 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 – Low corrosion stress |
| Ambient temperature | ‘-10 … 60 °C |
| Maritime classification | see certificate |
| Max. tightening torque | 14 Nm |
| Product weight | 21 g |
| Number of outputs | 2 |
| Number of supply lines | 1 |
| connection 1 | Male thread NPT1/4-18 |
| connection 2 | 5/32″ outside diameter, for tubing |
| Colour of release ring | Grey |
