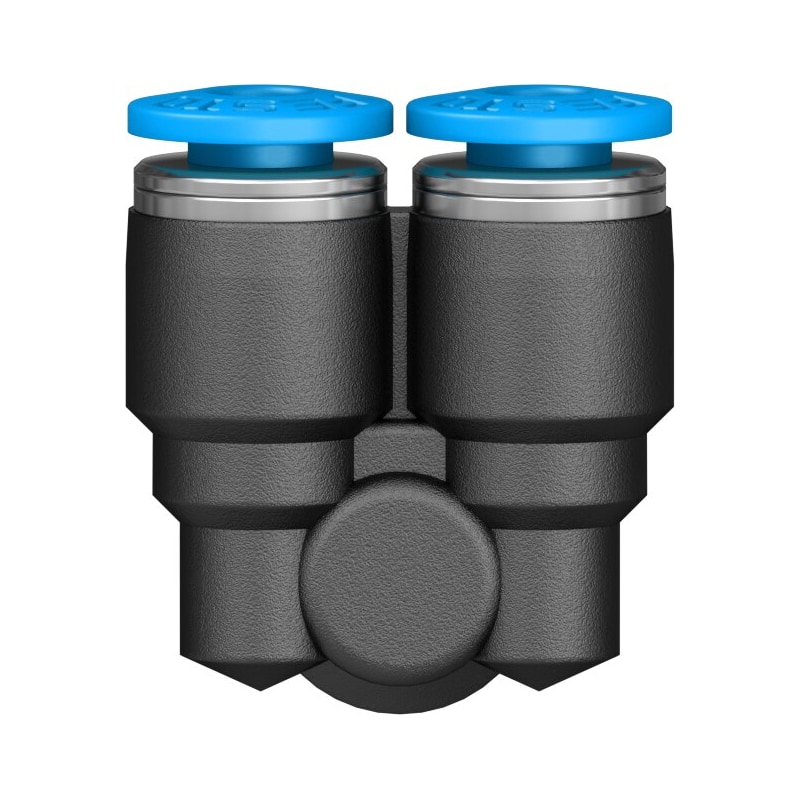

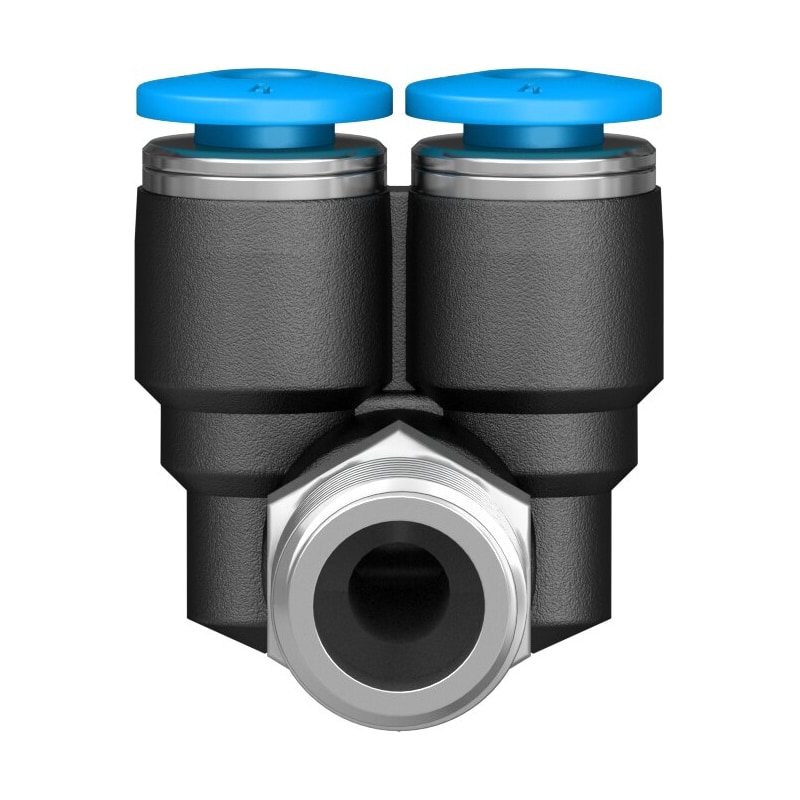

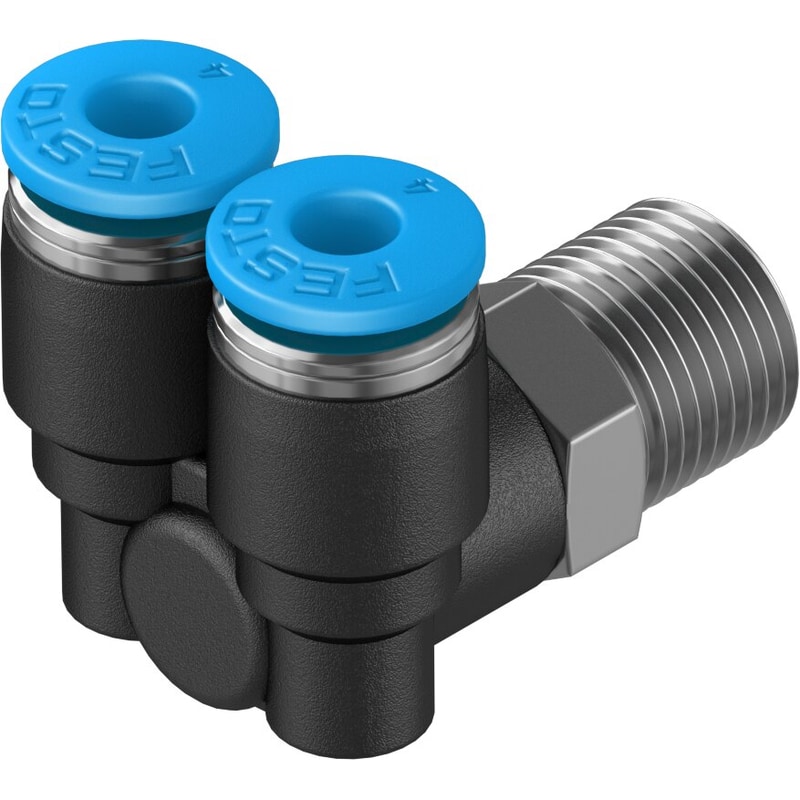

QSYL-1/8-4 push-in Y-fitting

$5.36

SKU: 153172 Category: Tag: Brand:

push-in Y-fitting QSYL-1/8-4 360° orientable, male thread with external hexagon. Size=Standard, Nominal size=3,9 mm, Type of seal on screw-in stud=coating, Assembly position=Any, Container size=1

Fitting Type2 Tier Male Banjo
Size Standard
Nominal size 3.9 mm
Type of seal on screw-in stud coating
Assembly position Any
Container size 1
Design structure Push/pull principle
Operating pressure complete temperature range ‘-0.95 … 6 bar
Temperature dependent operating pressure ‘-0.95 … 14 bar
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer’s declaration at www.festo.com
Note on operating and pilot medium Lubricated operation possible
Corrosion resistance classification CRC 1 – Low corrosion stress
Ambient temperature ‘-10 … 80 °C
Maritime classification see certificate
Product weight 13 g
Number of outputs 2
Number of supply lines 1
connection 1 Male thread R1/8
connection 2 For tubing outside diameter 4 mm
Colour of release ring blue
Fitting Type

2 Tier Male Banjo

Size

Standard

Nominal size

3.9 mm

Type of seal on screw-in stud

coating

Assembly position

Any

Container size

1

Design structure

Push/pull principle

Operating pressure complete temperature range

-0.95 … 6 bar

Temperature dependent operating pressure

-0.95 … 14 bar

Operating medium

Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer's declaration at http://www.festo.com

Note on operating and pilot medium

Lubricated operation possible

Corrosion resistance classification CRC

1 – Low corrosion stress

Ambient temperature

-10 … 80 °C

Maritime classification

see certificate

Product weight

13 g

Number of outputs

2

Number of supply lines

1

connection 1

Male thread R1/8

connection 2

For tubing outside diameter 4 mm

Colour of release ring

blue
