| Valve function | 5/2, monostable |
|---|---|
| Maritime classification | See certificate |
| Lap | Overlap |
| Actuation type | Electrical |
| Width | 42 mm |
| Standard nominal flow rate | 1200 l/min |
| Pneumatic working port | G1/4Sub-base, size 1 as per ISO 5599-1 |
| Operating voltage | Via solenoid coil, to be ordered separately |
| Operating pressure | 2 bar … 10 bar |
| Design | Piston gate valve |
| Reset method | Pneumatic spring |
| Degree of protection | IP65 |
| Nominal width | 8 mm |
| Width dimension | 43 mm |
| Type code | MFH |
| Exhaust air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Conforms to standard | ISO 5599-1 |
| Manual override | Non-detentingDetenting via accessory |
| ISO code | 151 |
| Type of control | Pilot-controlled |
| Pilot air supply port | Internal |
| Symbol | 991049 |
| Switching time off | 35 ms |
| On switching time | 23 ms |
| Max. positive test pulse with 0 signal | 2200 µs |
| Max. negative test pulse on 1 signal | 3700 µs |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Temperature of medium | -10 °C … 60 °C |
| Noise level | 85 dB(A) |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5 °C … 40 °C |
| Product weight | 390 g |
| Electrical connection | Via F coil, to be ordered separately |
| Type of mounting | With through-holeOn sub-base |
| Pilot air port 12 | Sub-base, size 1 as per ISO 5599-1 |
| Pilot air port 14 | Sub-base, size 1 as per ISO 5599-1 |
| Pneumatic connection 1 | Sub-base, size 1 as per ISO 5599-1 |
| Pneumatic connection 2 | Sub-base, size 1 as per ISO 5599-1 |
| Pneumatic connection 3 | Sub-base, size 1 as per ISO 5599-1 |
| Pneumatic connection 4 | Sub-base, size 1 as per ISO 5599-1 |
| Pneumatic connection 5 | Sub-base, size 1 as per ISO 5599-1 |
| Note on materials | RoHS-compliant |
| Seals material | HNBRNBR |
| Housing material | Die-cast aluminum |
ISO-CNOMO & NAMUR directional control valves

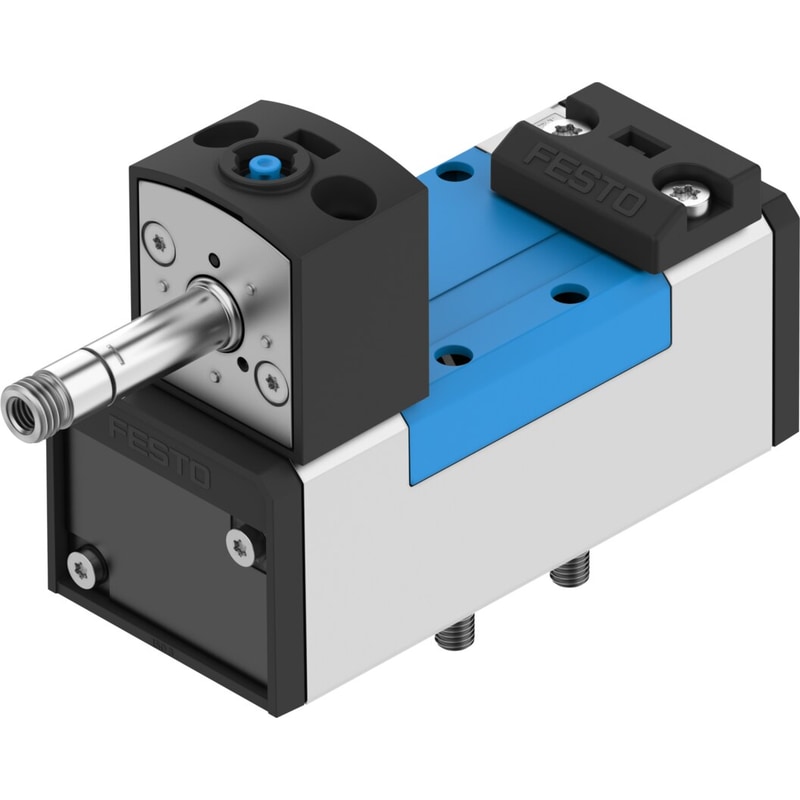

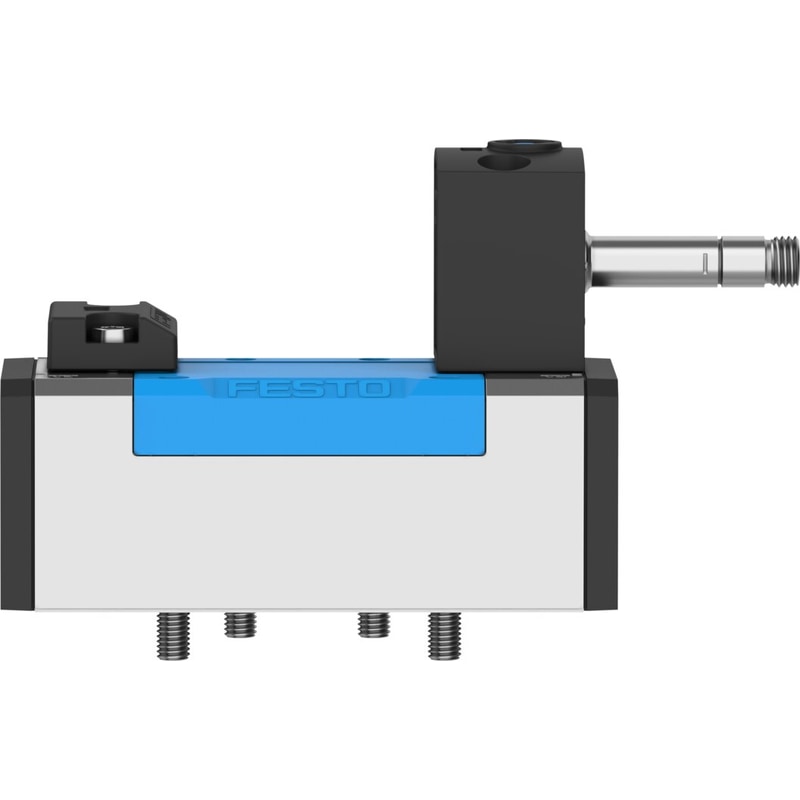

MFH-5/2-D-1-C
$182.07
Electrically actuated standards-based valves to ISO 5599-1.
| Weight | 0.775516 lbs |
|---|---|
| Dimensions | 7.283465 × 3.937008 × 1.771654 in |
