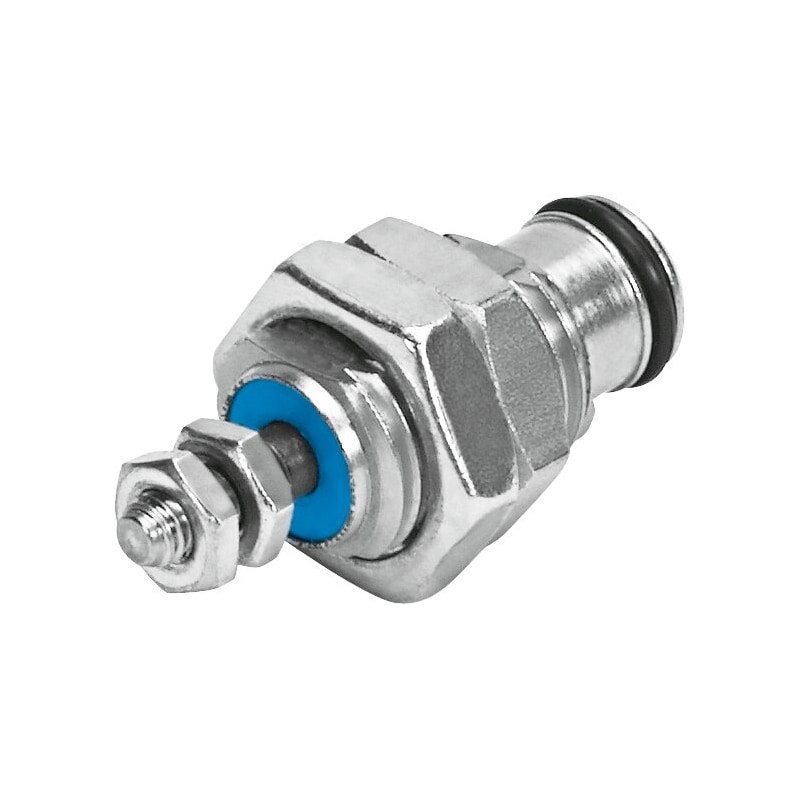

cartridge cylinder EGZ-6-10 With double-ended male thread on cylinder housing . Stroke=10 mm, Piston diameter=6 mm, Cushioning=No cushioning, Assembly position=Any, Mode of operation=(* single-acting, * pushing action)
| Stroke | 10 mm |
|---|---|
| Piston diameter | 6 mm |
| Cushioning | No cushioning |
| Assembly position | Any |
| Mode of operation | single-actingpushing action |
| Design structure | PistonPiston rodCylinder barrel |
| Position detection | No |
| Variants | Single-ended piston rod |
| Operating pressure | 2 … 8 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Corrosion resistance classification CRCÂ | 2 – Moderate corrosion stress |
| Ambient temperature | ‘-20 … 80 °C |
| Theoretical force at 6 bar | 14 N |
