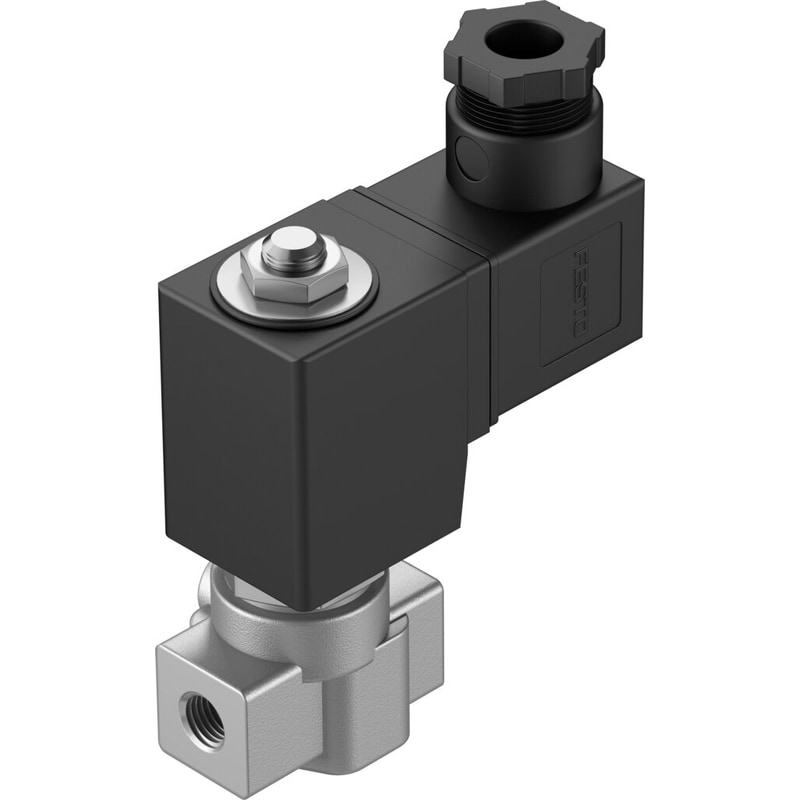

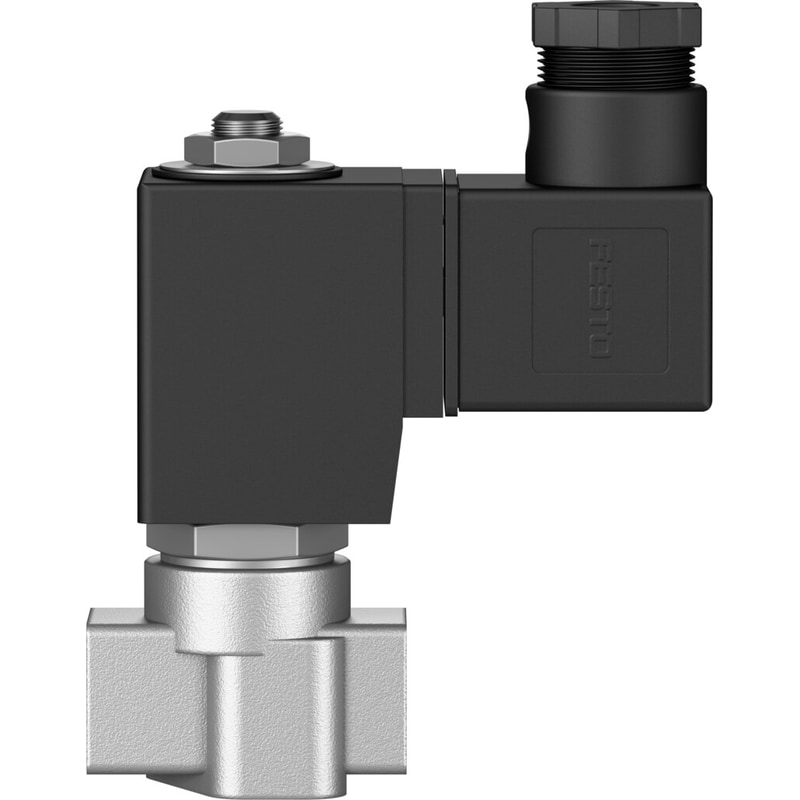

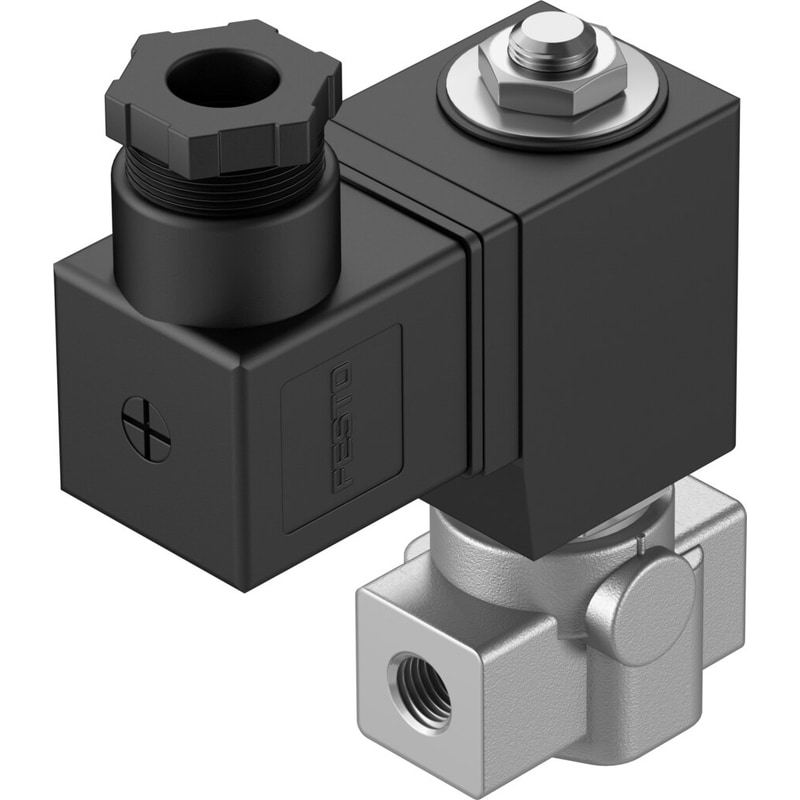

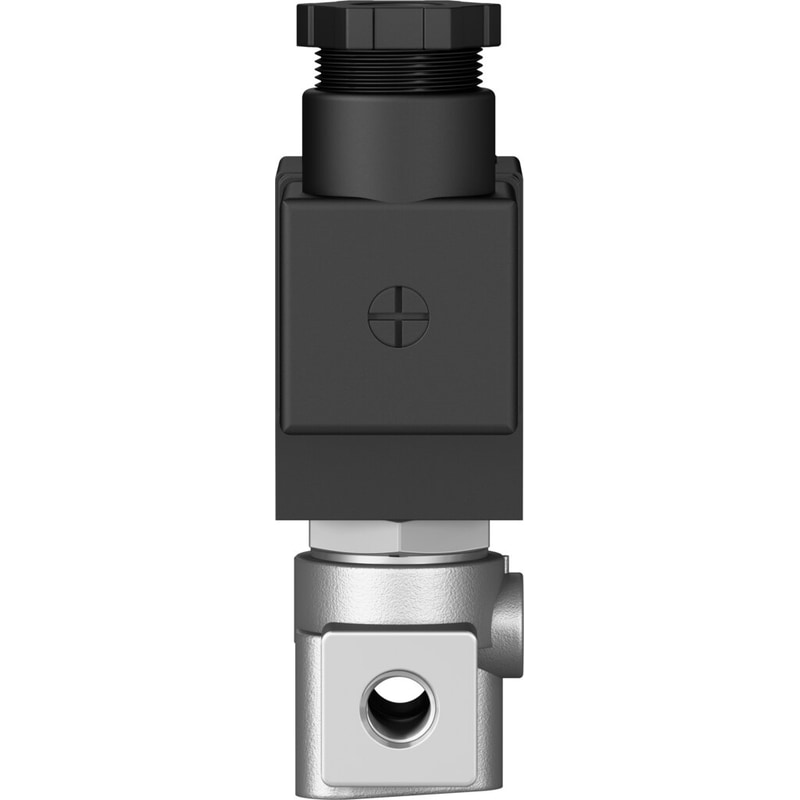

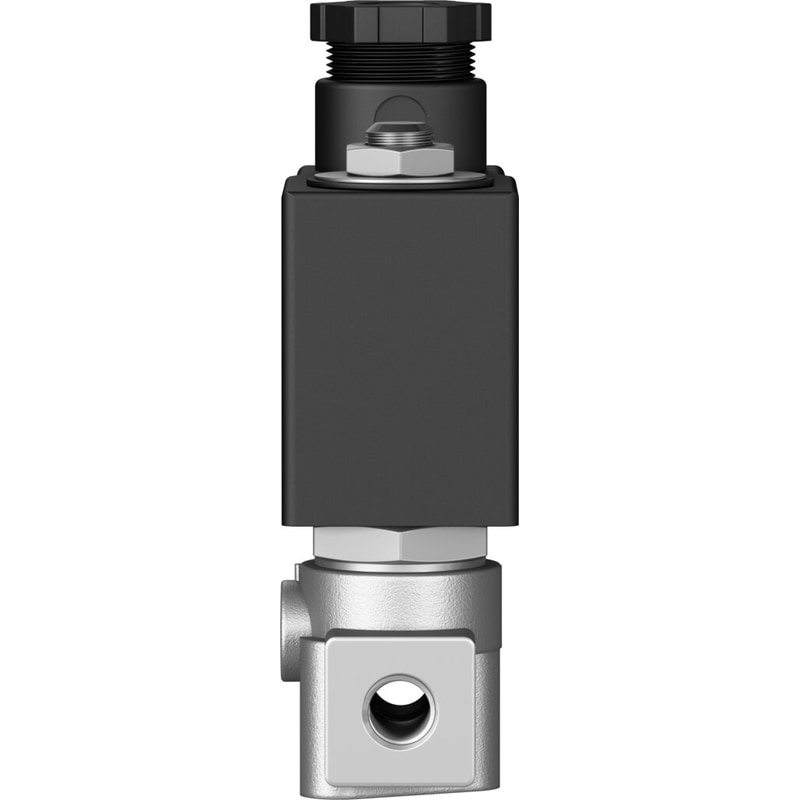

| Type code | VZWD |
|---|---|
| Design | Directly controlled poppet valve |
| Actuation type | Electrical |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Line installation |
| Fitting connection | 1/8 NPT |
| Electrical connection | Rectangular designas per EN 175301-803PlugForm A |
| Nominal width | 1.5 mm |
| Valve function | 2/2, closed, monostable |
| Manual override | None |
| Flow direction | Non-reversible |
| Medium | Other flow media on requestNeutral liquidsInert gasCompressed air as per ISO 8573-1:2010 [7:4:4]WaterMineral oil |
| Nominal pressure of fitting PN | 100 |
| Differential pressure | 0 bar |
| Coil characteristics | 110 V AC: 50/60 Hz, initial power 19.0 VA, holding power 16.0 VA |
| Insulation class | F |
| Permissible voltage fluctuations | +/- 10 % |
| Duty cycle | 1 |
| Reset method | Mechanical spring |
| Type of control | Direct |
| Symbol | 992979 |
| Medium pressure | 0 bar … 85 bar |
| Temperature of medium | -10 °C … 80 °C |
| Ambient temperature | -10 °C … 35 °C |
| Leak rate to EN 12266-1 | A |
| Flow rate Kv | 0.09 m³/h |
| Standard nominal flow rate | 95 l/min |
| On switching time | 20 ms |
| Switching time off | 18 ms |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Housing material | High-alloy stainless steel |
| Material number of housing | 1.4305 |
| Seals material | FPM |
| Product weight | 500 g |
| Degree of protection | IP65 |
| CE marking (see declaration of conformity) | As per EU low voltage directive |
| Corrosion resistance class (CRC) | 3 – High corrosion stress |
| Design | Directly actuated poppet valve |
|---|---|
| Flow rate Kv | 0.09 m?/h |
| Connection Process valve | 1/8 NPT |
| Type of actuation | Electric |
