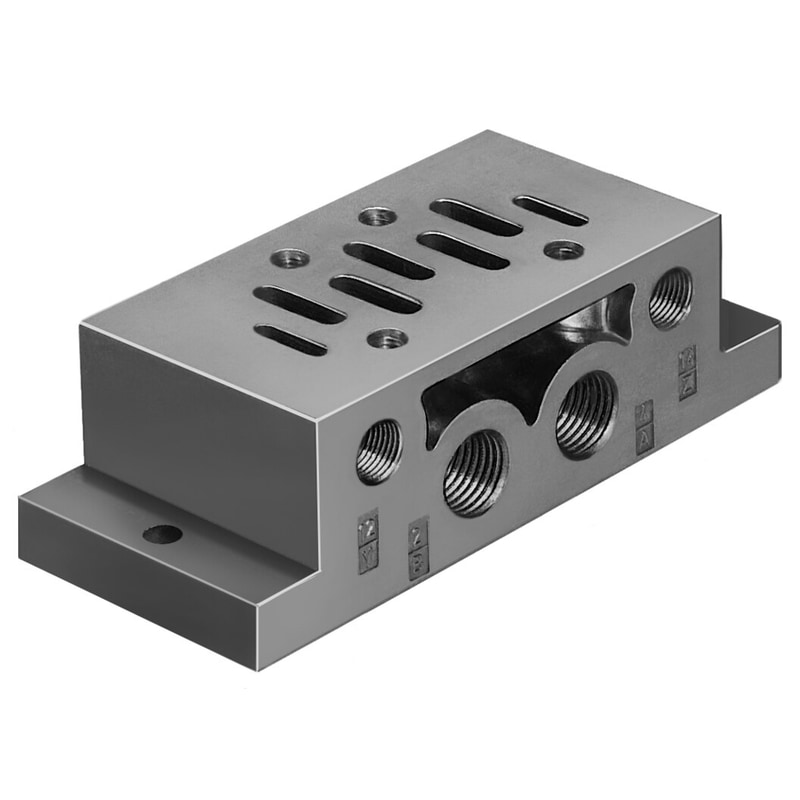

individual sub-base NAS-1/4-NPT-1A Based on standard ISO 5599-1, connection at side. Length=24 mm, Operating pressure=16 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible (subsequently required for further operation), Medium temperature=-10 – 60 °C
| Length | 24 mm |
|---|---|
| Operating pressure | 16 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Medium temperature | ‘-10 … 60 °C |
| Ambient temperature | ‘-10 … 60 °C |
| Mounting method for sub-base | with through hole |
| Pneumatic connection, port 1Â | NPT1/4-18 |
| Pneumatic connection, port 2Â | NPT1/4-18 |
| Pneumatic connection, port 4Â | NPT1/4-18 |
