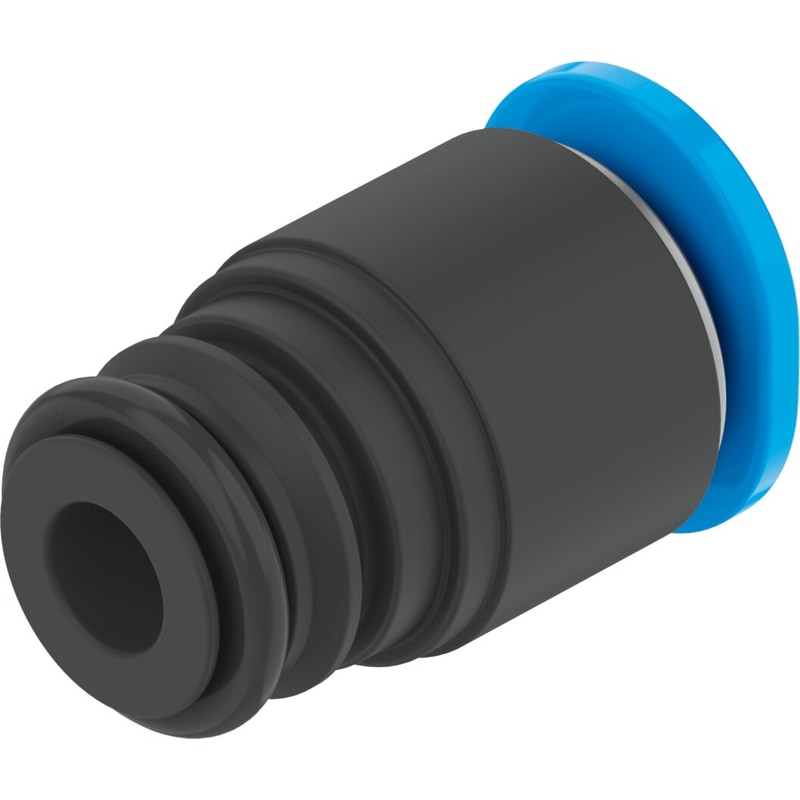

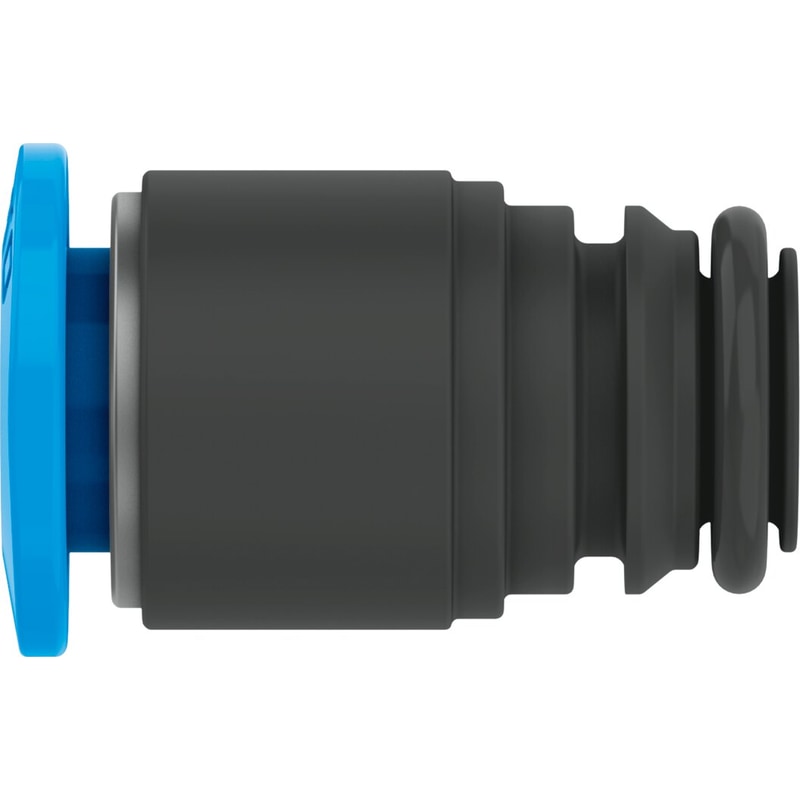

cartridge QSPK10-6 With push-in connector, straight Size=Mini, Nominal size=3,7 mm, Type of seal on screw-in stud=O-ring, Assembly position=Any, Container size=10
Fitting Type | n/a |
---|---|
Size | Mini |
Nominal size | 3.7 mm |
Type of seal on screw-in stud | O-ring |
Assembly position | Any |
Container size | 10 |
Design structure | Push/pull principle |
Operating pressure complete temperature range | ‘-0.95 … 10 bar |
Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
Note on operating and pilot medium | Lubricated operation possible |
Corrosion resistance classification CRCÂ | 1 – Low corrosion stress |
Ambient temperature | ‘-5 … 60 °C |
Maritime classification | see certificate |
Product weight | 1.8 g |
connection 1Â | Cartridge 10 mm |
connection 2Â | For tubing outside diameter 6 mm |
Colour of release ring | blue |
Materials note | Conforms to RoHS |
Material housing | PA-reinforced |
Material release ring | POM |
