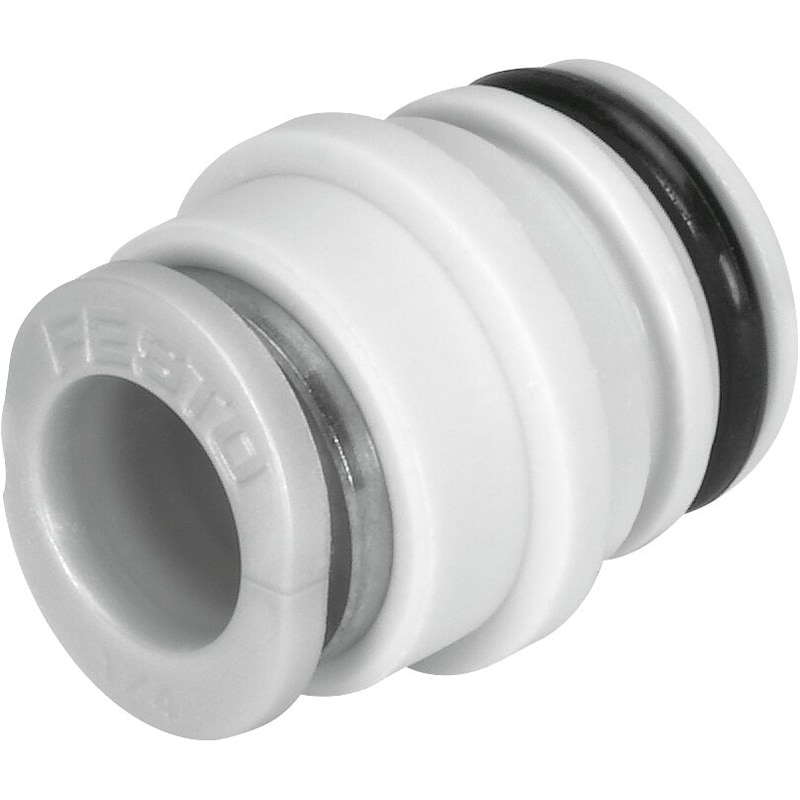

QSPKG14-1/4-U Cartridge

Name: QSPKG14-1/4-U Cartridge
Brand: Festo
SKU: 132932
Availability: InStock

$2.35

Price per unit

Sold in packs of 10

SKU: 132932 Category: QSPKG Tags: 2021u, fitting50

Brand: Festo

cartridge QSPKG14-1/4-U Size=Mini, Nominal size=3,9 mm, Assembly position=Any, Container size=10, Design structure=Push/pull principle

Fitting Type	n/a
Size	Mini
Nominal size	3.9 mm
Assembly position	Any
Container size	10
Design structure	Push/pull principle
Operating pressure complete temperature range	‘-0.95 … 10 bar
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:-:-]
Note on operating and pilot medium	Lubricated operation possible
Corrosion resistance classification CRC	1 – Low corrosion stress
Ambient temperature	‘-5 … 60 °C
Maritime classification	see certificate
Product weight	2.3 g
connection 1	QSP…14
connection 2	1/4″ outside diameter, for tubing
Colour of release ring	Grey
Materials note	Conforms to RoHS
Material housing	PA-reinforced
Material release ring	POM
Material of tubing seal	NBR

Pneumatic connection, port 1	Cartridge 14 mm
Pneumatic connection, port 2	For tubing outside diameter of 1/4"
Operating pressure complete temperature range	-0.95 bar – 10 bar
Ambient temperature	-5?C – 60?C
Nominal size	3.9 mm
