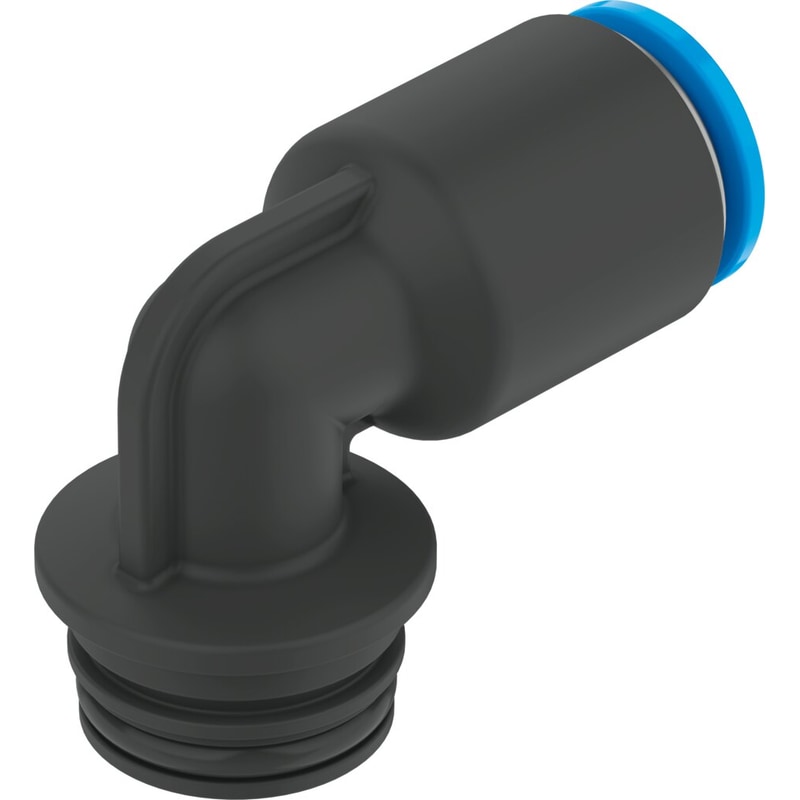

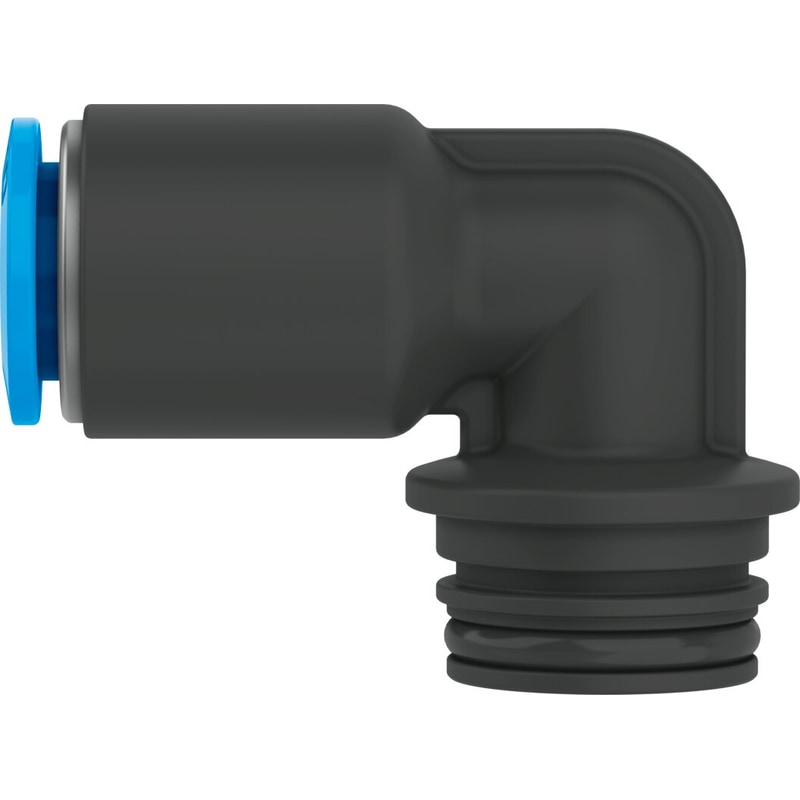

cartridge QSPLK18-3/8-U With push-in connector, L-form Nominal size=6,5 mm, Assembly position=Any, Container size=10, Design structure=Push/pull principle, Operating pressure complete temperature range=-0,95 – 10 bar
| Fitting Type | n/a |
|---|---|
| Nominal size | 6.5 mm |
| Assembly position | Any |
| Container size | 10 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | ‘-0.95 … 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRCÂ | 1 – Low corrosion stress |
| Ambient temperature | ‘-5 … 60 °C |
| Maritime classification | see certificate |
| Product weight | 10.9 g |
| connection 1Â | QSP…18 |
| connection 2Â | 3/8″ outside diameter, for tubing |
| Colour of release ring | Grey |
| Materials note | Conforms to RoHS |
| Material housing | PA-reinforced |
| Material release ring | POM |
| Material of tubing seal | NBR |
| Material of tube retaining claw | High alloy steel, non-corrosive |
