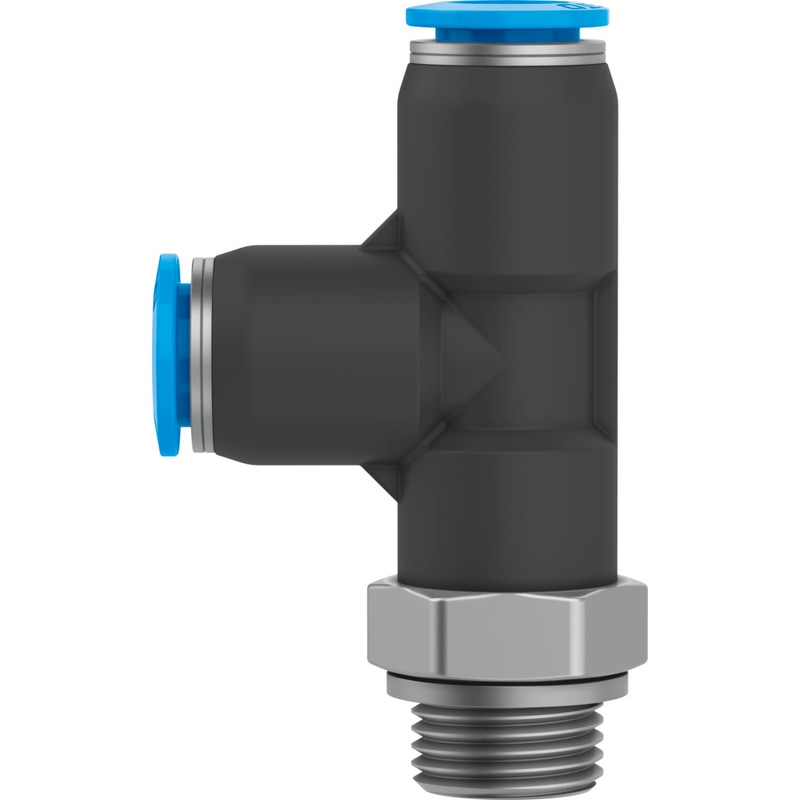

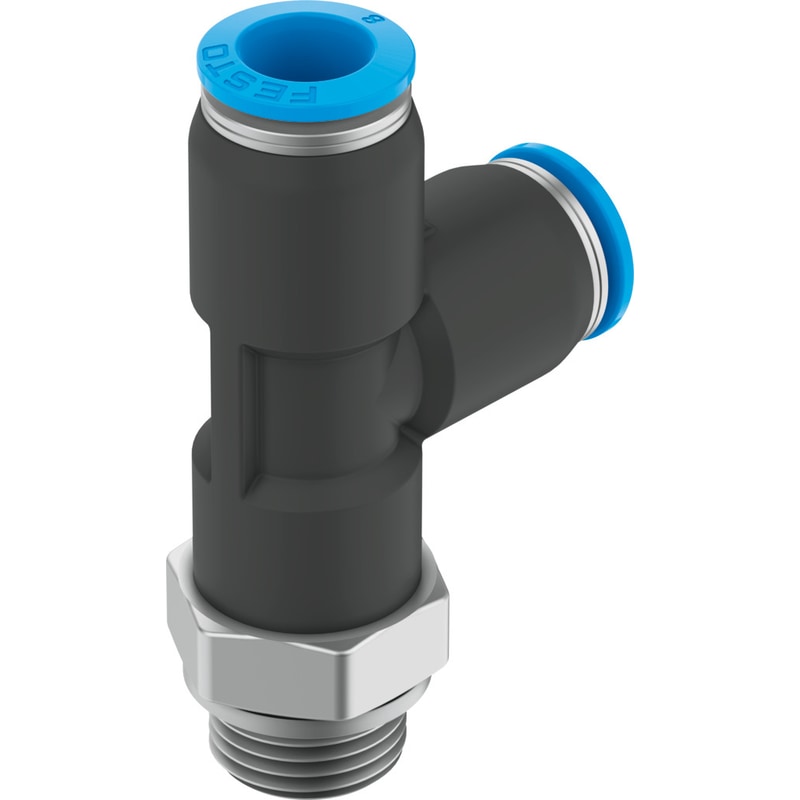

QSTL-G1/8-8-50 Push-in T-fitting (Pack of 50)

$410.00

Sold in Pack of 50

SKU: 132077 Category: Tags: , Brand:

push-in T-fitting QSTL-G1/8-8-50 360° orientable, male thread with external hexagon. Size=Standard, Nominal size=6 mm, Type of seal on screw-in stud=Sealing ring, Assembly position=Any, Container size=50

Fitting TypeMale Run Tee
Size Standard
Nominal size 6 mm
Type of seal on screw-in stud Sealing ring
Assembly position Any
Container size 50
Design structure Push/pull principle
Operating pressure complete temperature range ‘-0.95 … 6 bar
Temperature dependent operating pressure ‘-0.95 … 14 bar
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer’s declaration at www.festo.com
Note on operating and pilot medium Lubricated operation possible
Corrosion resistance classification CRC 1 – Low corrosion stress
Ambient temperature ‘-10 … 80 °C
Maritime classification see certificate
Nominal tightening torque 7 Nm
Tolerance for nominal tightening torque ± 20 %
Product weight 19 g
Number of outputs 2
Number of supply lines 1
connection 1 Male thread G1/8
Fitting Type

Male Run Tee

Size

Standard

Nominal size

6 mm

Type of seal on screw-in stud

Sealing ring

Assembly position

Any

Container size

50

Design structure

Push/pull principle

Operating pressure complete temperature range

-0.95 … 6 bar

Temperature dependent operating pressure

-0.95 … 14 bar

Operating medium

Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer's declaration at http://www.festo.com

Note on operating and pilot medium

Lubricated operation possible

Corrosion resistance classification CRC

1 – Low corrosion stress

Ambient temperature

-10 … 80 °C

Maritime classification

see certificate

Nominal tightening torque

7 Nm

Tolerance for nominal tightening torque

± 20 %

Product weight

19 g

Number of outputs

2

Number of supply lines

1

connection 1

Male thread G1/8
