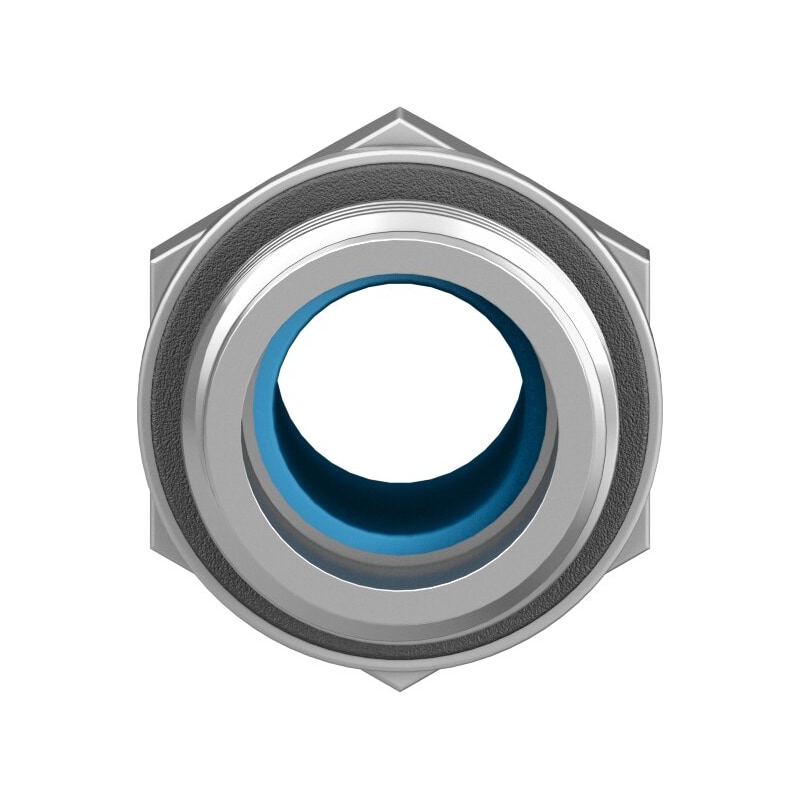

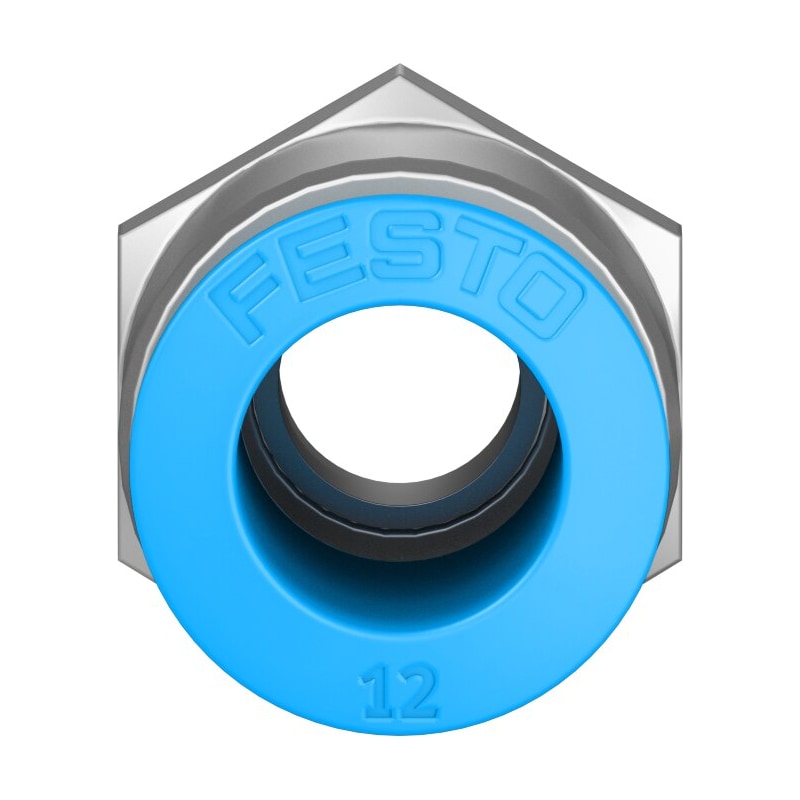

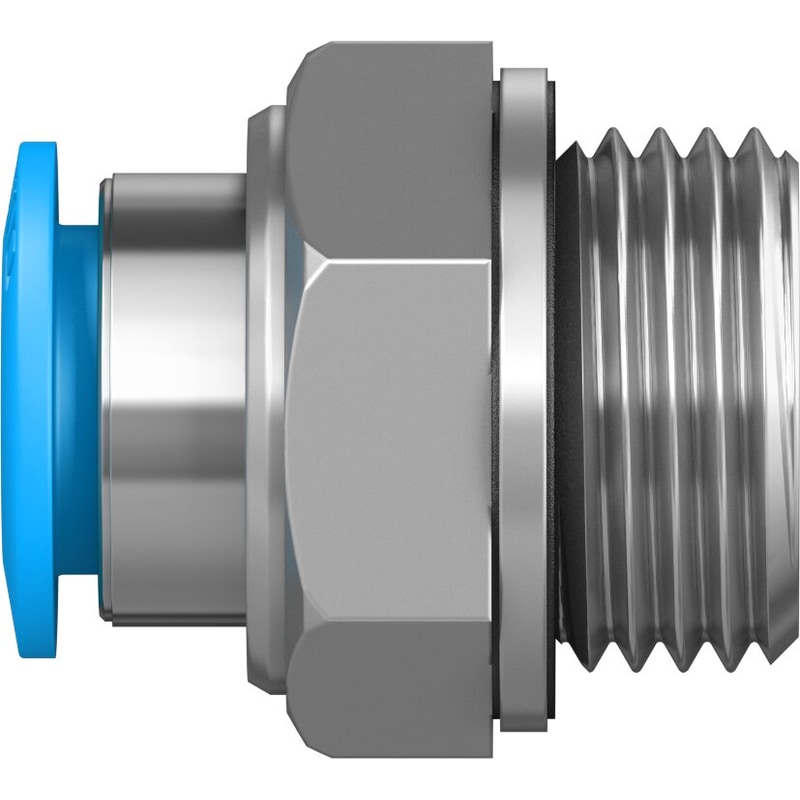

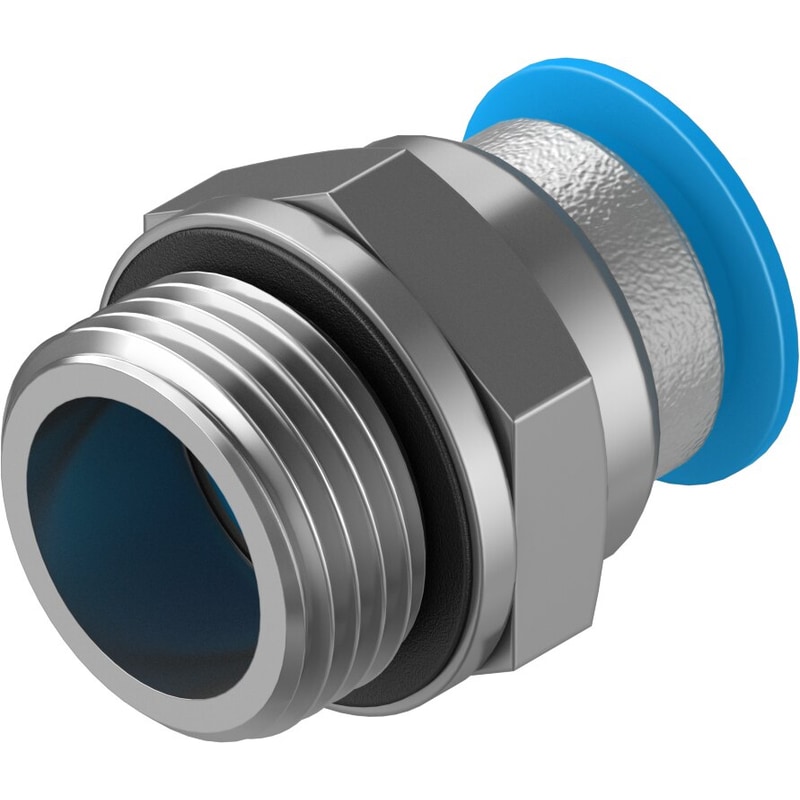

push-in fitting QS-G1/2-12-20 male thread with external hexagon. Size=Standard, Nominal size=11 mm, Type of seal on screw-in stud=Sealing ring, Assembly position=Any, Container size=20
| Fitting Type | Male Straight |
|---|---|
| Size | Standard |
| Nominal size | 11 mm |
| Type of seal on screw-in stud | Sealing ring |
| Assembly position | Any |
| Container size | 20 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | ‘-0.95 … 6 bar |
| Temperature dependent operating pressure | ‘-0.95 … 14 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer’s declaration at www.festo.com |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRCÂ | 1 – Low corrosion stress |
| Ambient temperature | ‘-10 … 80 °C |
| Maritime classification | see certificate |
| Nominal tightening torque | 26 Nm |
| Tolerance for nominal tightening torque | ± 20 % |
| Product weight | 39 g |
| connection 1Â | Male thread G1/2 |
| connection 2Â | 12mm outside diameter, for tubing |
| Colour of release ring | blue |
