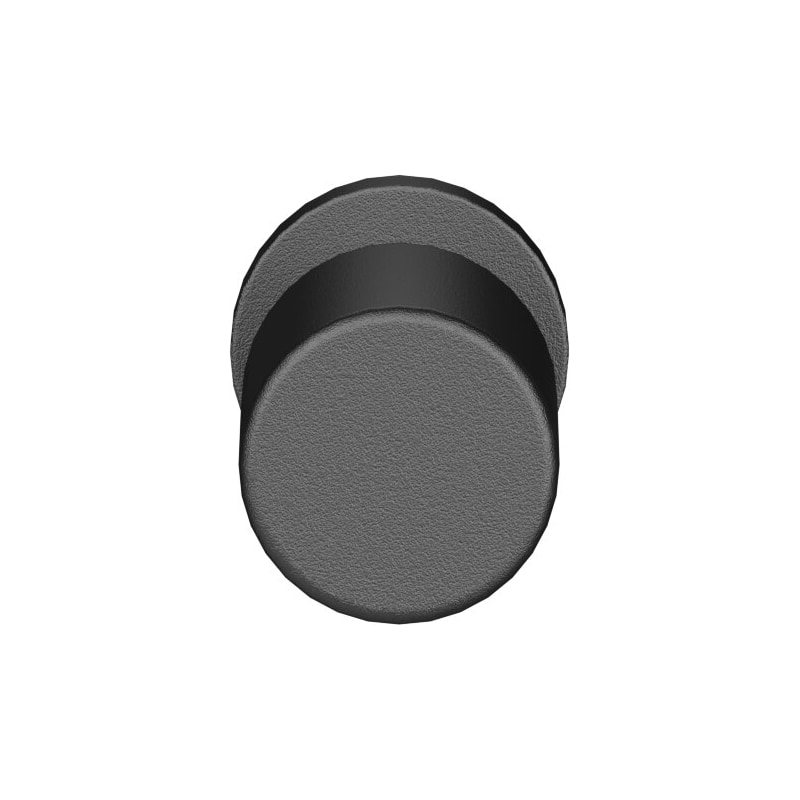

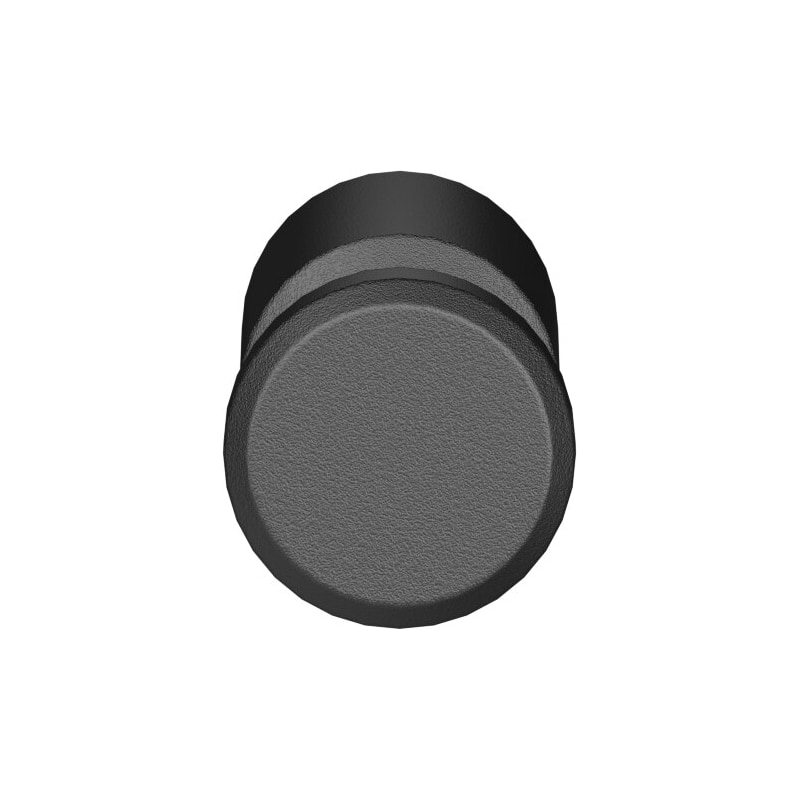

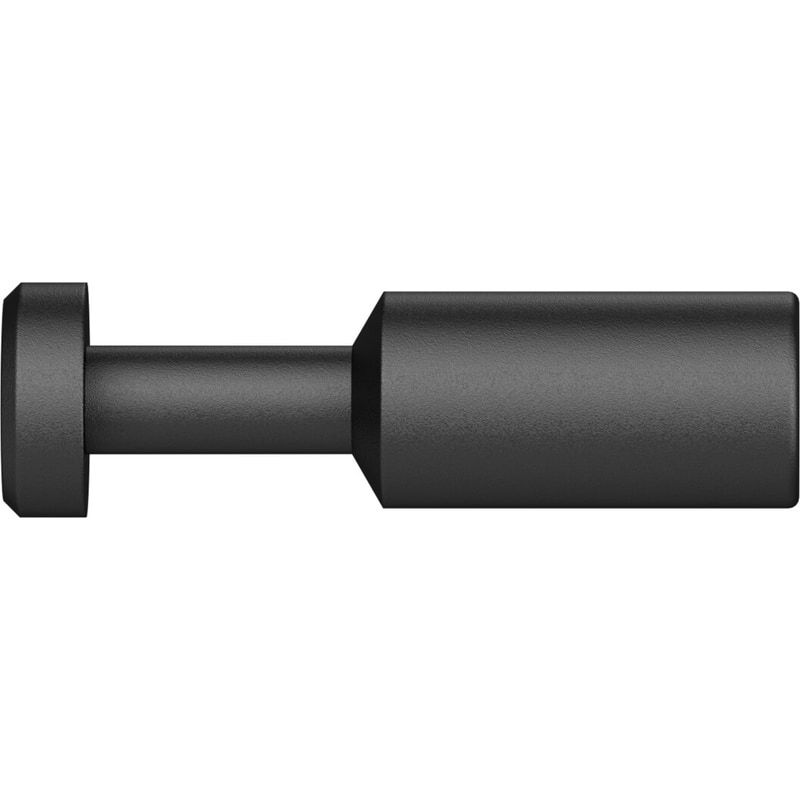

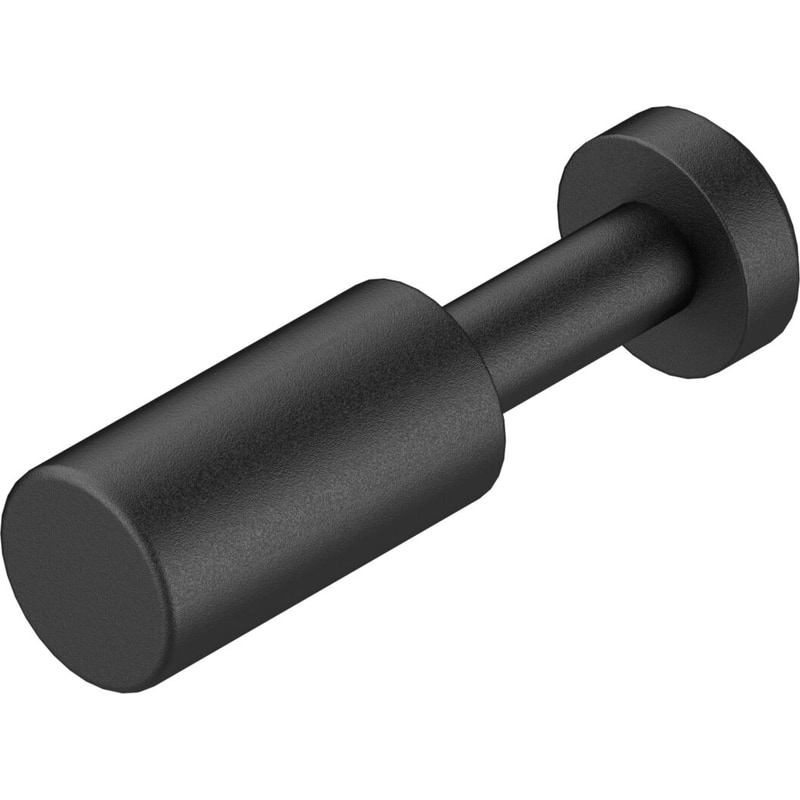

blanking plug QSC-12H-20 Size=Standard, Assembly position=Any, Container size=20, Operating pressure complete temperature range=-0,95 – 6 bar, Temperature dependent operating pressure=-0,95 – 14 bar
| Fitting Type | Push-in Plug |
|---|---|
| Size | Standard |
| Assembly position | Any |
| Container size | 20 |
| Operating pressure complete temperature range | ‘-0.95 … 6 bar |
| Temperature dependent operating pressure | ‘-0.95 … 14 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer’s declaration at www.festo.com |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRCÂ | 1 – Low corrosion stress |
| Ambient temperature | ‘-10 … 80 °C |
| Maritime classification | see certificate |
| Product weight | 2.5 g |
| connection 1Â | Push-in sleeve QS-12 |
| Materials note | Conforms to RoHS |
| Material housing | PBT |
