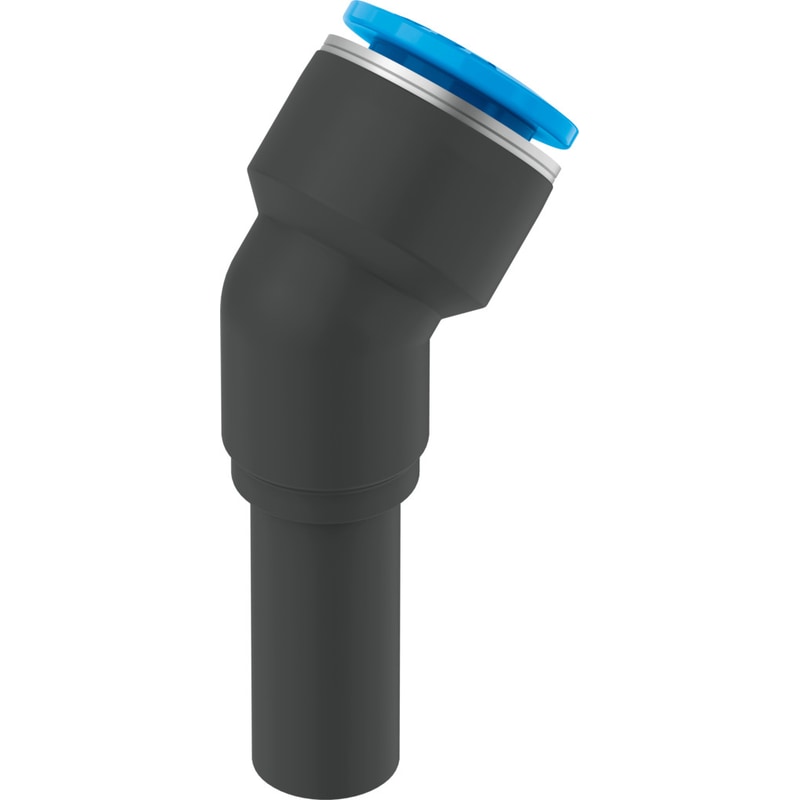

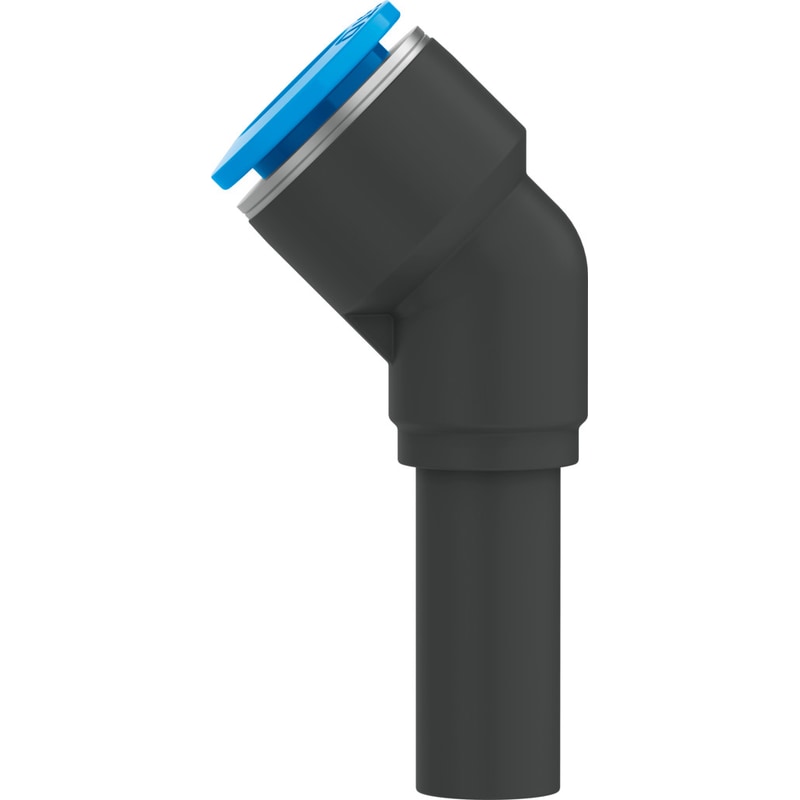

push-in connector QSW-6HL with push-in sleeve. Size=Standard, Nominal size=2,7 mm, Assembly position=Any, Container size=10, Design structure=Push/pull principle
| Fitting Type | 45Ëš Plug-in Elbow |
|---|---|
| Size | Standard |
| Nominal size | 2.7 mm |
| Assembly position | Any |
| Container size | 10 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | ‘-0.95 … 6 bar |
| Temperature dependent operating pressure | ‘-0.95 … 14 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer’s declaration at www.festo.com |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRCÂ | 1 – Low corrosion stress |
| Ambient temperature | ‘-10 … 80 °C |
| Maritime classification | see certificate |
| Product weight | 2.1 g |
| connection 1Â | Push-in sleeve QS-6 |
| connection 2Â | For tubing outside diameter 6 mm |
| Colour of release ring | blue |
| Materials note | Conforms to RoHS |
| Material housing | PBT |
| Material release ring | POM |
