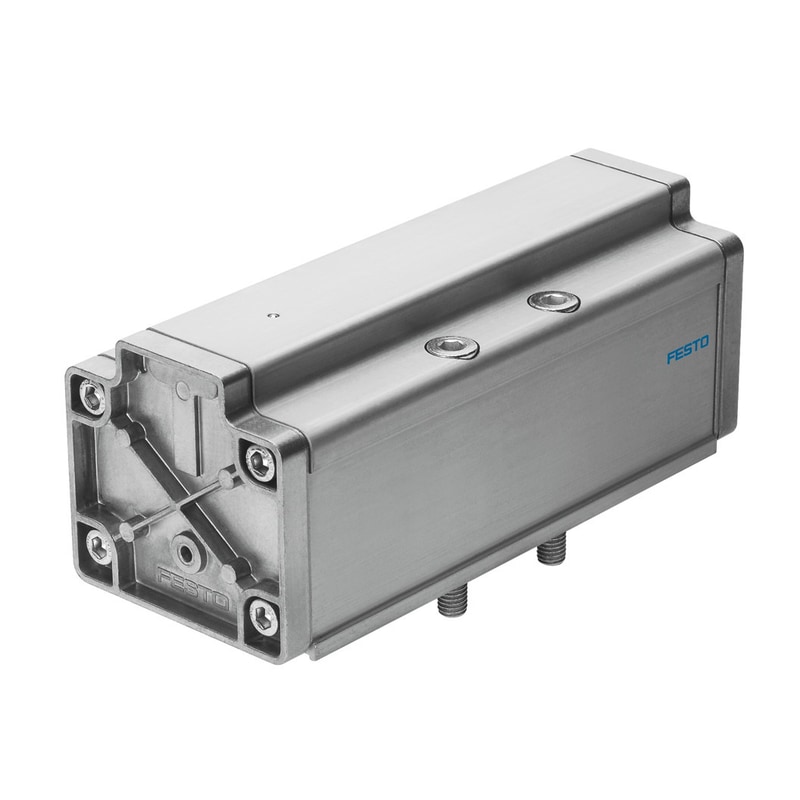

pneumatic valve J-5/2-3/4-D-4 With mounting screws, without sub-base Valve function=5/2 bistable, Type of actuation=pneumatic, Width=76 mm, Standard nominal flow rate=6000 l/min, Operating pressure=-0,9 – 16 bar
| Valve function | 5/2 bistable |
|---|---|
| Type of actuation | pneumatic |
| Width | 76 mm |
| Standard nominal flow rate | 6,000 l/min |
| Operating pressure | ‘-0.9 … 16 bar |
| Design structure | Piston slide |
| Nominal size | 18 mm |
| Grid dimension | 82 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
| Assembly position | Any |
| Conforms to standard | ISO 5599-1 |
| Manual override | None |
