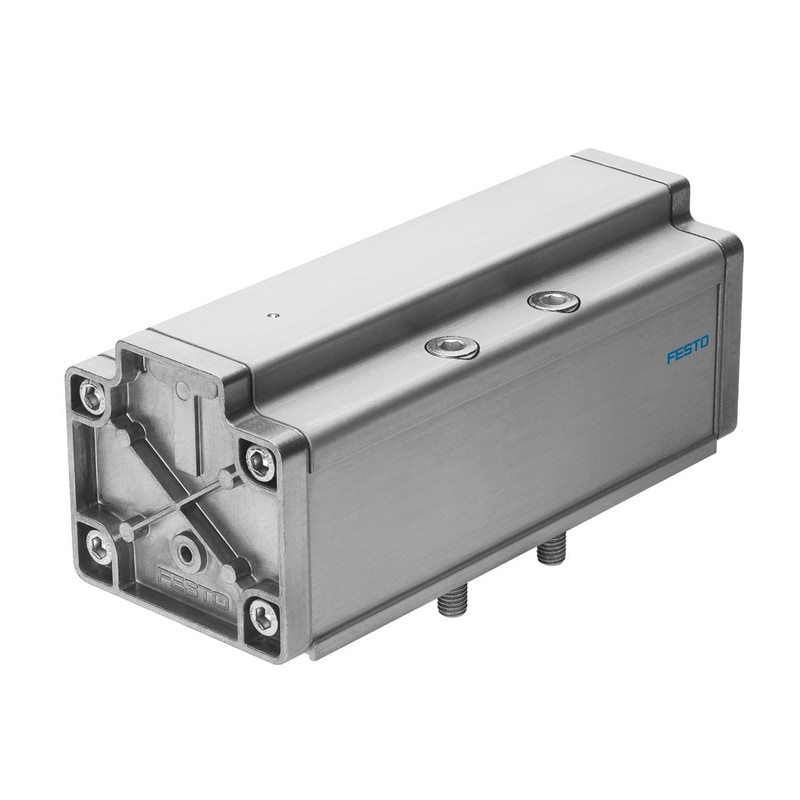

pneumatic valve VL-5/2-3/4-D-4 5/2-way function, pneumatically actuated, with spring return Valve function=5/2 monostable, Type of actuation=pneumatic, Width=76 mm, Standard nominal flow rate=6000 l/min, Operating pressure=-0,9 – 16 bar
Valve function | 5/2 monostable |
---|---|
Type of actuation | pneumatic |
Width | 76 mm |
Standard nominal flow rate | 6,000 l/min |
Operating pressure | ‘-0.9 … 16 bar |
Design structure | Piston slide |
Type of reset | mechanical spring |
Nominal size | 18 mm |
Grid dimension | 82 mm |
Exhaust-air function | throttleable |
Sealing principle | soft |
Assembly position | Any |
Conforms to standard | ISO 5599-1 |
