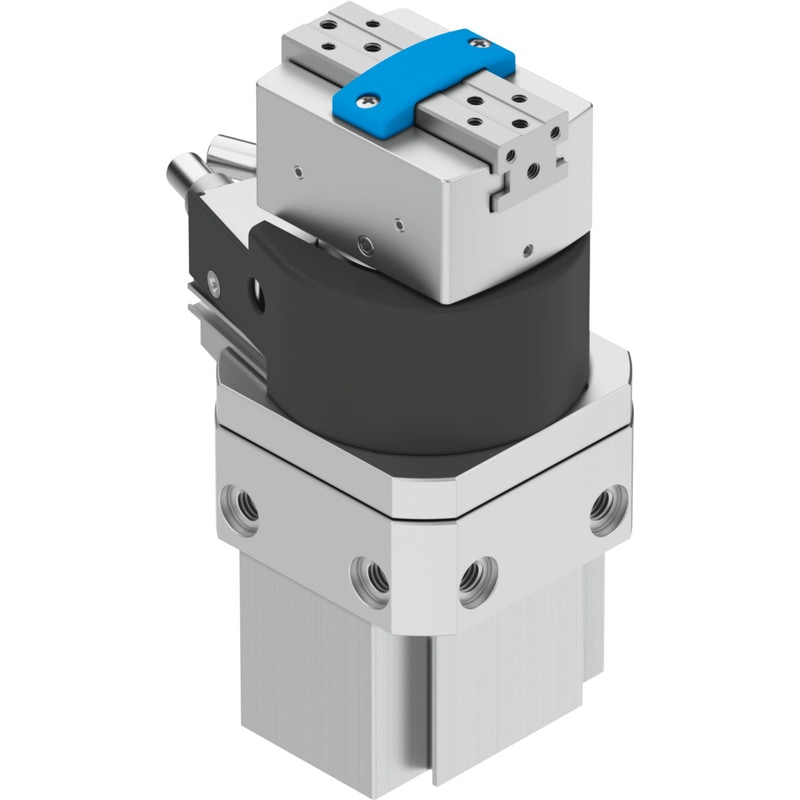

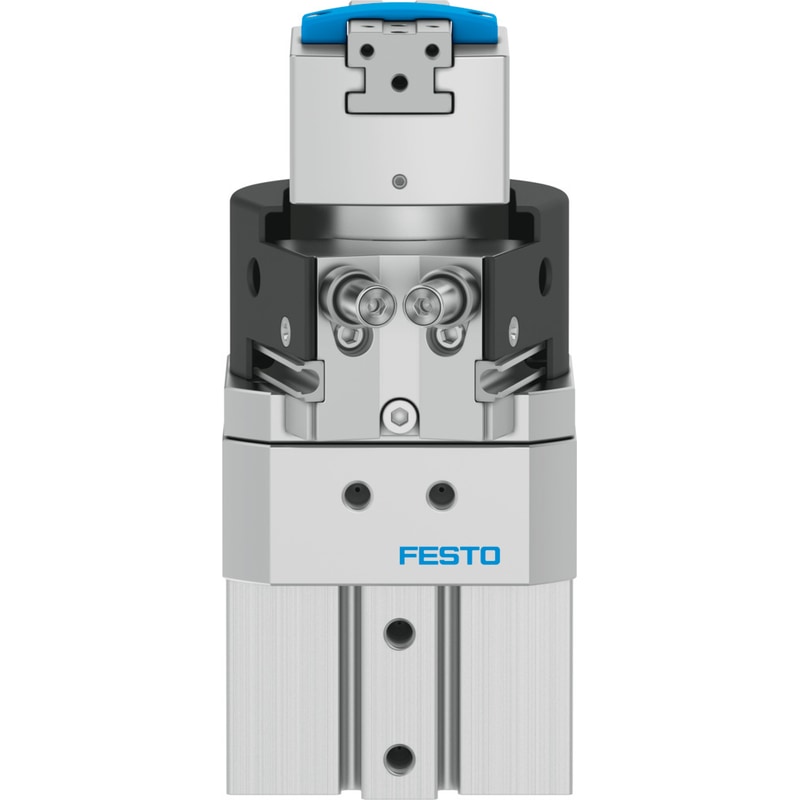

| Size | 16 |
|---|---|
| Adjustment range of swivel angle | 0 deg … 210 deg |
| Stroke per gripper jaw | 4.5 mm |
| Max. gripper jaw angular play ax, ay | 0.1 deg |
| Max. gripper jaw backlash Sz | 0.02 mm |
| Swivel angle | 210 deg |
| Pneumatic gripper repetition accuracy | 0.01 mm |
| Repetition accuracy of swivel angle | 0.02 deg |
| Number of gripper jaws | 2 |
| Quarter turn actuator cushioning | Pneumatic shock absorber at both ends |
| Cushioning | Shock absorber at both ends, self-adjusting, with metal fixed stop |
| Cushioning adjustment range | 1.3 mm |
| Mounting position | Any |
| Quarter turn actuator fine tuning | -2.5 deg |
| Mode of operation | Double-acting |
| Gripper function | Parallel |
| Structural design | with parallel gripper and gripper actuator |
| Position sensing, pneumatic gripper | With proximity sensor |
| Quarter turn actuator position sensing | With proximity sensor |
| Symbol | 00991893 |
| Operating pressure | 3 bar … 8 bar |
| Max. operating frequency of pneumatic gripper | 4 Hz |
| Max. swivel frequency at 6Â bar | 1.5 Hz |
| Min. opening time at 6 bar | 40 ms |
| Min. closing time at 6 bar | 60 ms |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | 5 °C … 60 °C |
| Gripping force per gripper jaw at 6 bar, opening | 58 N |
| Gripping force per gripper jaw at 6 bar, opening | 116 N |
| Gripping force per gripper jaw at 6 bar, closing | 51 N |
| Gripping force per gripper jaw at 6 bar, closing | 102 N |
| Maximum force on gripper jaw Fz, static | 150 N |
| Maximum torque on gripper jaw, Mx static | 11 Nm |
| Maximum torque on gripper jaw, My static | 11 Nm |
| Maximum torque on gripper jaw, Mz static | 11 Nm |
| Theoretical torque at 6 bar | 1.25 Nm |
| Product weight | 730 g |
| Max. mass per external gripper finger | 50 g |
| Max. mass per external gripper finger, throttled | 200 g |
| Weight | 1.835701 lbs |
|---|---|
| Dimensions | 6.220472 × 2.913386 × 3.937008 in |
| Size | 16 |
| Adjustment range of swivel angle | 0 deg … 210 deg |
| Stroke per gripper jaw | 4.5 mm |
| Max. gripper jaw angular play ax, ay | 0.1 deg |
| Max. gripper jaw backlash Sz | 0.02 mm |
| Swivel angle | 210 deg |
| Pneumatic gripper repetition accuracy | 0.01 mm |
| Repetition accuracy of swivel angle | 0.02 deg |
| Number of gripper jaws | 2 |
| Quarter turn actuator cushioning | Pneumatic shock absorber at both ends |
| Cushioning | Self-adjusting, Shock absorber at both ends, with metal fixed stop |
| Cushioning adjustment range | 1.3 mm |
| Mounting position | Any |
| Quarter turn actuator fine tuning | -2.5 deg |
| Mode of operation | Double-acting |
| Gripper function | Parallel |
| Structural design | with parallel gripper and gripper actuator |
| Position sensing, pneumatic gripper | With proximity sensor |
| Quarter turn actuator position sensing | With proximity sensor |
| Symbol | 00991893 |
| Operating pressure | 3 bar … 8 bar |
| Max. operating frequency of pneumatic gripper | 4 Hz |
| Max. swivel frequency at 6Â bar | 1.5 Hz |
| Min. opening time at 6 bar | 40 ms |
| Min. closing time at 6 bar | 60 ms |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | 5 °C … 60 °C |
| Gripping force per gripper jaw at 6 bar, opening | 116 N |
| Gripping force per gripper jaw at 6 bar, closing | 102 N |
| Maximum force on gripper jaw Fz, static | 150 N |
| Maximum torque on gripper jaw, Mx static | 11 Nm |
| Maximum torque on gripper jaw, My static | 11 Nm |
| Maximum torque on gripper jaw, Mz static | 11 Nm |
| Theoretical torque at 6 bar | 1.25 Nm |
| Product weight | 730 g |
| Max. mass per external gripper finger | 50 g |
| Max. mass per external gripper finger, throttled | 200 g |
| Type of mounting | Via through-hole and centering sleeve | With dovetail slot |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Drive shaft material | Steel |
| Cover material | Aluminum, POM |
| Seals material | NBR |
| Housing material | Wrought aluminum alloy |
| Gripper jaw material | High-alloy stainless steel |
