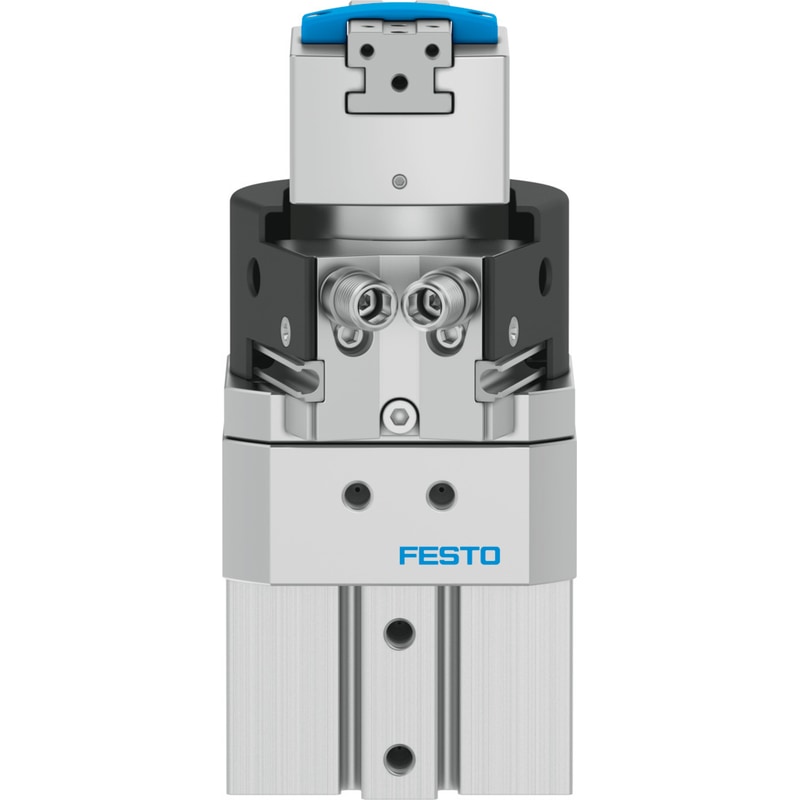

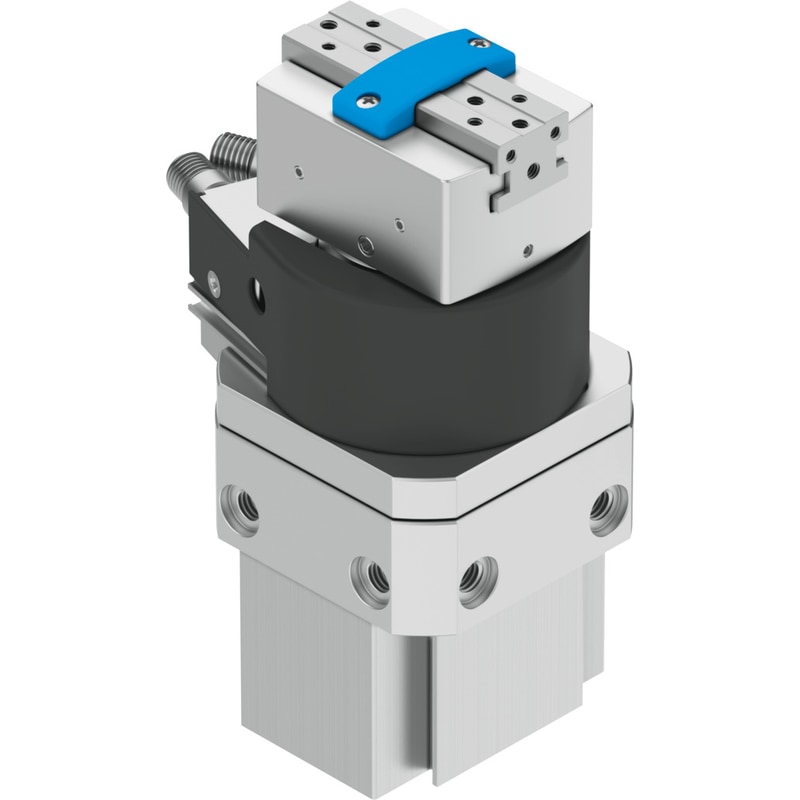

HGDS-PP-16-P1-A-B

$1,846.87

SKU: 1187959
UNSPSC: 23153025
GTIN: 4052568228231

SKU: 1187959 Category:
Festo

swivel/gripper unit HGDS-PP-16-P1-A-B with elastic cushioning and fixed stop. Size=16, Rotation angle adjustment range=0 – 210 deg, Stroke per gripper jaw=4,5 mm, Max. angular gripper jaw backlash ax,ay=0,1 deg, Max. gripper jaw backlash Sz=0,02 mm

Size

16

Rotation angle adjustment range

0 … 210 deg

Stroke per gripper jaw

4.5 mm

Max. angular gripper jaw backlash ax,ay

0.1 deg

Max. gripper jaw backlash Sz

0.02 mm

Swivel angle

210 deg

Number of gripper fingers

2

Cushioning of swivel drive

Elastic cushioning rings/pads at both ends, end positions adjustable, with fixed stop

Assembly position

Any

Fine adjustment of swivel drive

-6 deg

Mode of operation

double-acting

Gripper function

Parallel

Design structure

Swivel driveWith parallel gripper and gripper drive
