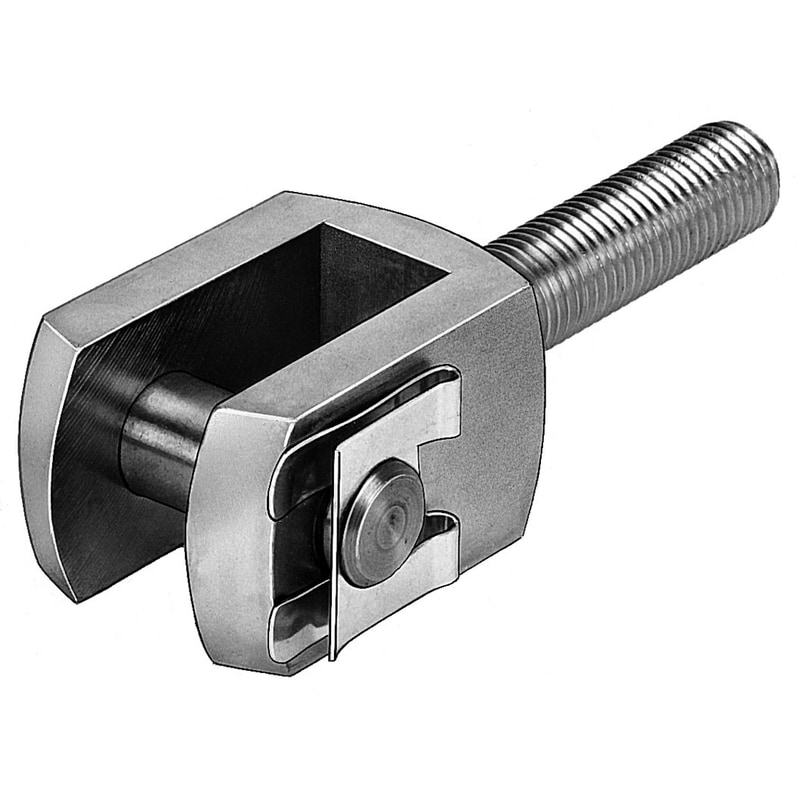

rod clevis SGA-M20X1,5 With male thread, for swivelling cylinder mounting. Size=M20x1,5, Radial deviation +/-=5 mm, Angle compensation +/-=120 deg, Assembly position=Any, Threaded connection=Male thread M20x1.5
| Size | M20x1,5 |
|---|---|
| Radial deviation +/-Â | 5 mm |
| Angle compensation +/-Â | 120 deg |
| Assembly position | Any |
| Threaded connection | Male thread M20x1.5 |
| Corrosion resistance classification CRCÂ | 1 – Low corrosion stress |
| Ambient temperature | ‘-40 … 150 °C |
| Product weight | 954 g |
| Materials note | Free of copper and PTFEConforms to RoHS |
| Material mounting pin | steel, galvanized |
| Material rod eye | SteelGalvanised |
| Material lock | Spring steel, galvanised |
