DSMI-40-270-A-B

$1,679.39

SKU: 561691
UNSPSC: 31251504
GTIN: 4052568208868

SKU: 561691 Category: Tag:
Festo

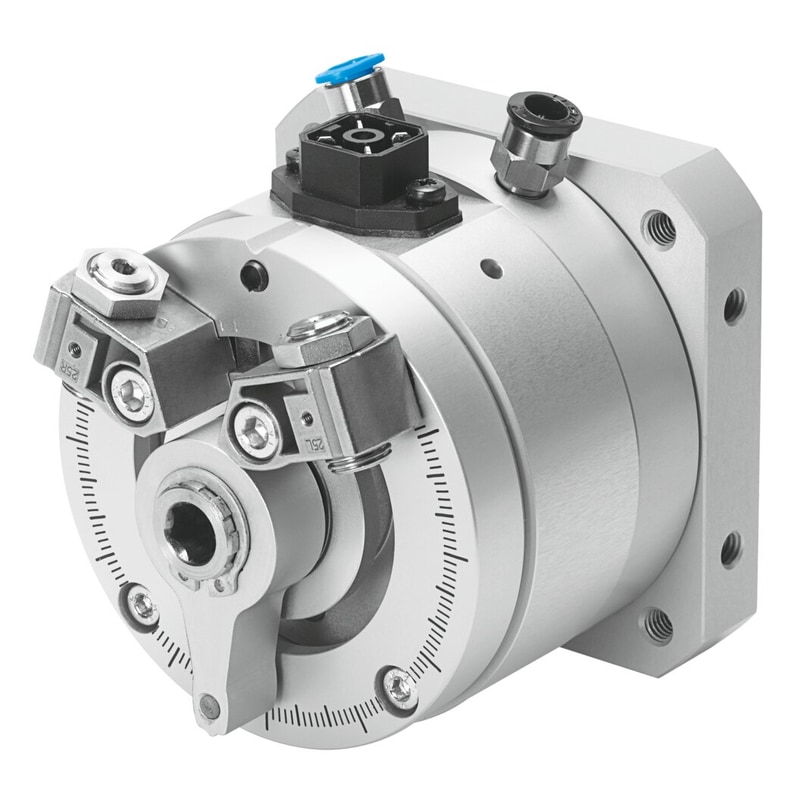

semi-rotary drive DSMI-40-270-A-B with integrated displacement encoder. Optional endposition sensing via proximity sensors type SME/SMT-10F-…-KL. Rotation angle adjustment range=0 – 270 deg, Stroke shortening in the end-positions=5 °, Smallest positioning stroke=(* 5° for positioning, * 15° with Soft Stop), Piston diameter=40 mm, Swivel angle=0 – 272 deg

Rotation angle adjustment range  0 … 270 deg
Stroke shortening in the end-positions  5 °
Smallest positioning stroke  5° for positioning15° with Soft Stop
Piston diameter  40 mm
Swivel angle  0 … 272 deg
Cushioning  P: Flexible cushioning rings/plates at both ends
Mounting position, positioning  Any
Mounting position, soft stop  Horizontal
Measuring method: displacement encoder  Analogue
Design structure  Drive shaft with ball bearingRotary vane
Position detection  For proximity sensorWith integrated angular displacement encoder
Operating pressure, positioning / soft stop  4 … 8 bar
Max. swivel frequency at 6 bar  2 Hz
Rotation angle adjustment range

0 … 270 deg

Stroke shortening in the end-positions

5 °

Smallest positioning stroke

5° for positioning15° with Soft Stop

Piston diameter

40 mm

Swivel angle

0 … 272 deg

Cushioning

P: Flexible cushioning rings/plates at both ends

Mounting position, positioning

Any

Mounting position, soft stop

Horizontal

Measuring method: displacement encoder

Analogue

Design structure

Drive shaft with ball bearingRotary vane

Position detection

For proximity sensorWith integrated angular displacement encoder

Operating pressure, positioning / soft stop

4 … 8 bar

Max. swivel frequency at 6 bar

2 Hz
