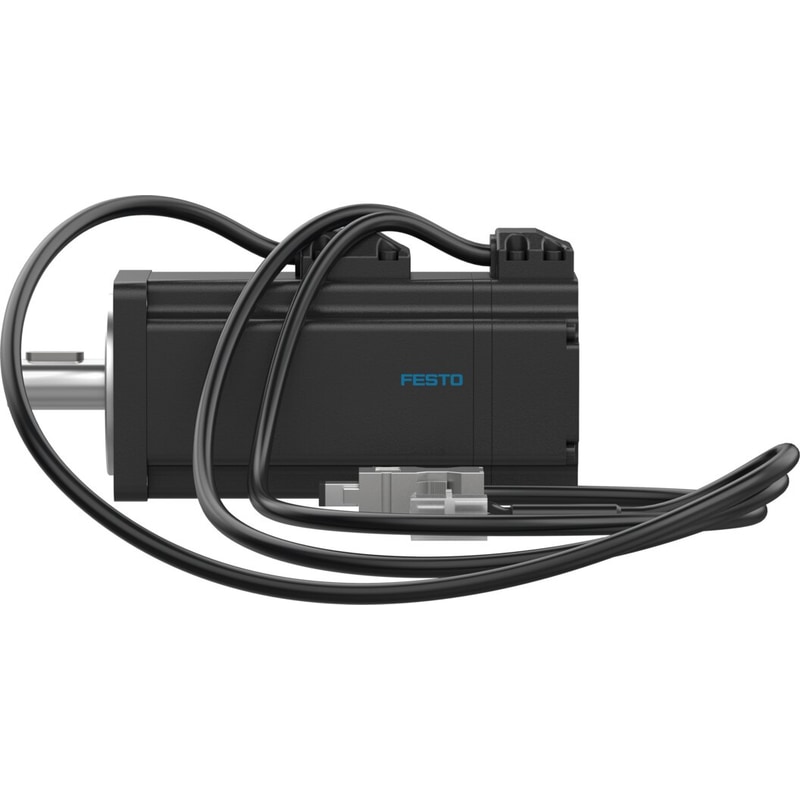

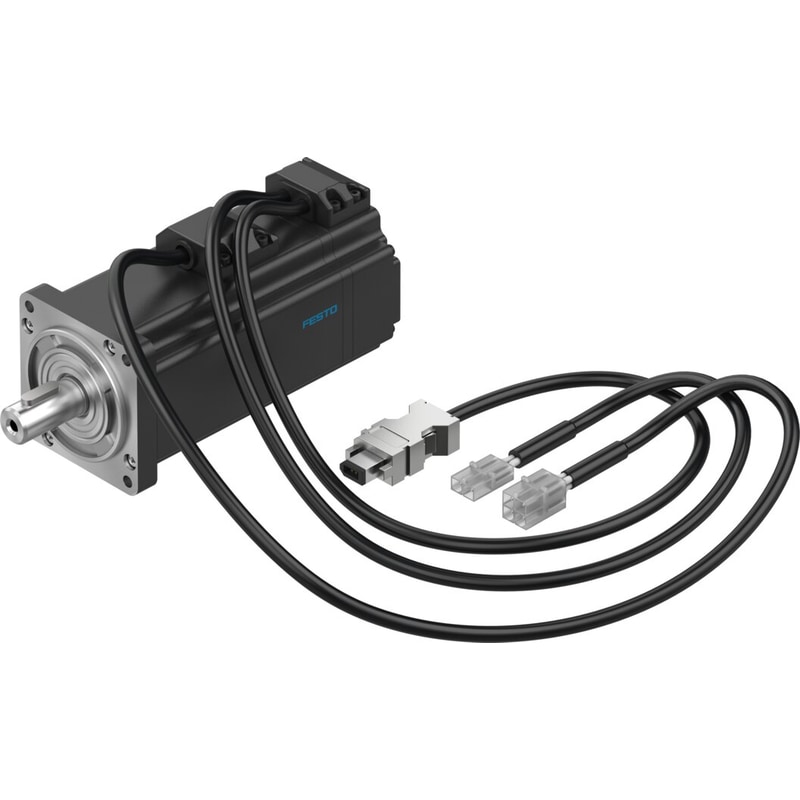

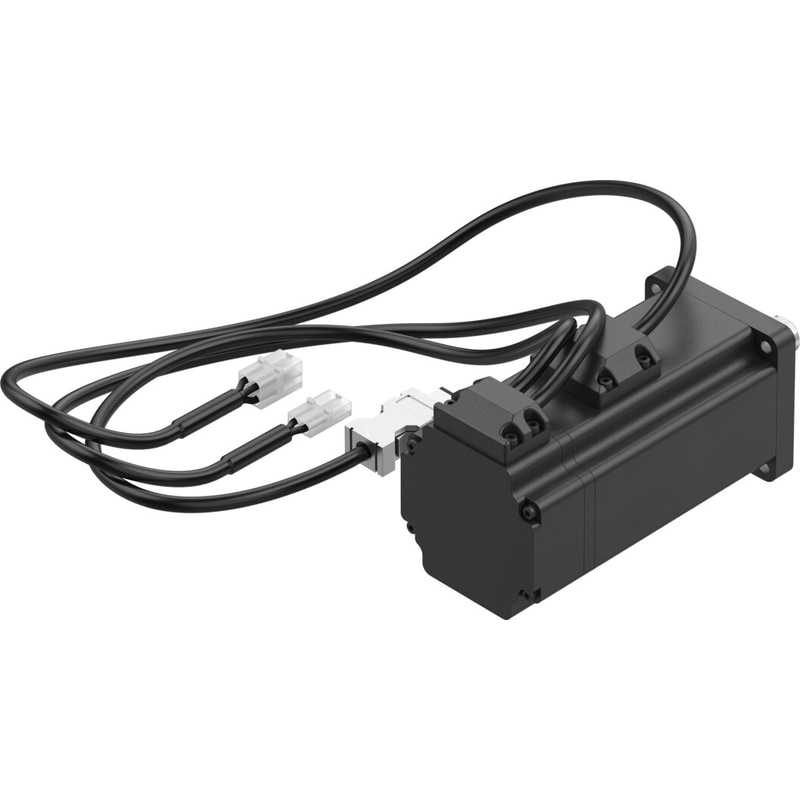

Ambient temperature | -15 °C … 40 °C |
---|---|
Note on ambient temperature | Up to 60 °C with derating of -1.5% per degree Celsius |
Max. installation height | 4000 m |
Information on max. installation height | with 1,000 m and longer only with derating of -1.0% per 100 m |
Storage temperature | -20 °C … 55 °C |
Relative air humidity | 0 – 90 % |
Conforms to standard | IEC 60034 |
Thermal class according to EN 60034-1 | F |
Max. winding temperature | 155 °C |
Rating class according to EN 60034-1 | S1 |
Temperature monitoring | Digital motor temperature transmission via Nikon A format |
Motor type as per EN 60034-7 | IM B5 IM V1 IM V3 |
Mounting position | Any |
Degree of protection | IP65 |
Note on degree of protection | IP40 for motor shaft without rotary shaft seal IP54 for motor shaft with rotary shaft seal IP65 for motor housing without connection technology |
Concentricity, coaxiality, axial runout according to DIN SPEC 42955 | N |
Balancing quality | G 2.5 |
Storage lifetime, under nominal conditions | 20000 h |
Featherkey shaft design | DIN 6885 A 5 x 5 x 16 |
Electrical connection 1, connection type | Plug |
Electrical connection 1, connection technology | Connection diagram RE |
Electrical connection 1, number of pins/wires | 6 |
Electrical connection for input 1, connection pattern | 00995792 |
Contamination level | 2 |
Note on materials | RoHS-compliant |
Corrosion resistance class (CRC) | 0 – No corrosion stress |
LABS conformity | VDMA24364 zone III |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Certification | c UL us – Recognized (OL) |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU low voltage directive As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK instructions for electrical equipment To UK RoHS instructions |
Certificate issuing authority | UL E342973 |
Nominal operating voltage DC | 300 V |
DC nominal voltage | 300 V |
Type of winding switch | Star inside |
Number of pole pairs | 3 |
Stall torque | 0.7 Nm |
Nominal torque | 0.64 Nm |
Peak torque | 1.92 Nm |
Nominal rotary speed | 3000 1/min |
Max. rotational speed | 6000 1/min |
Max. mechanical speed | 10000 1/min |
Motor nominal power | 200 W |
Continuous stall current | 1.5 A |
Motor nominal current | 1.4 A |
Peak current | 4.2 A |
Motor constants | 0.48 Nm/A |
Voltage constant, phase-to-phase | 29 mVmin |
Phase-phase winding resistance | 11.2 Ohm |
Winding inductance phase-phase | 20.9 mH |
Electric time constant | 1.87 ms |
Measuring flange | 255 x 255 x 8 mm, aluminum |
Total output inertia moment | 0.234 kgcm² |
Product weight | 1400 g |
Permissible axial shaft load | 90 N |
Permissible radial shaft load | 180 N |
Rotor position sensor | Absolute encoder, multi-turn |
Rotor position sensor for manufacturer designation | MAR-MX50AHN00 |
Rotor position encoder for absolutely detectable revolutions | 65536 |
Rotor position sensor interface | Nikon A-format |
Rotor position sensor measuring principle | Optical |
Rotor position encoder for DC operating voltage | 5 V |
Rotor position encoder for DC operating voltage range | 4.75 V … 5.25 V |
Rotor position encoder for positional values per revolution | 1048576 |
Rotor position sensor resolution | 20 bit |
Rotor position encoder system accuracy angle measurement | -120 arcsec … 120 arcsec |
Brake holding torque | 1.3 Nm |
Brake DC operating voltage | 24 V |
Brake power consumption | 7.2 W |
