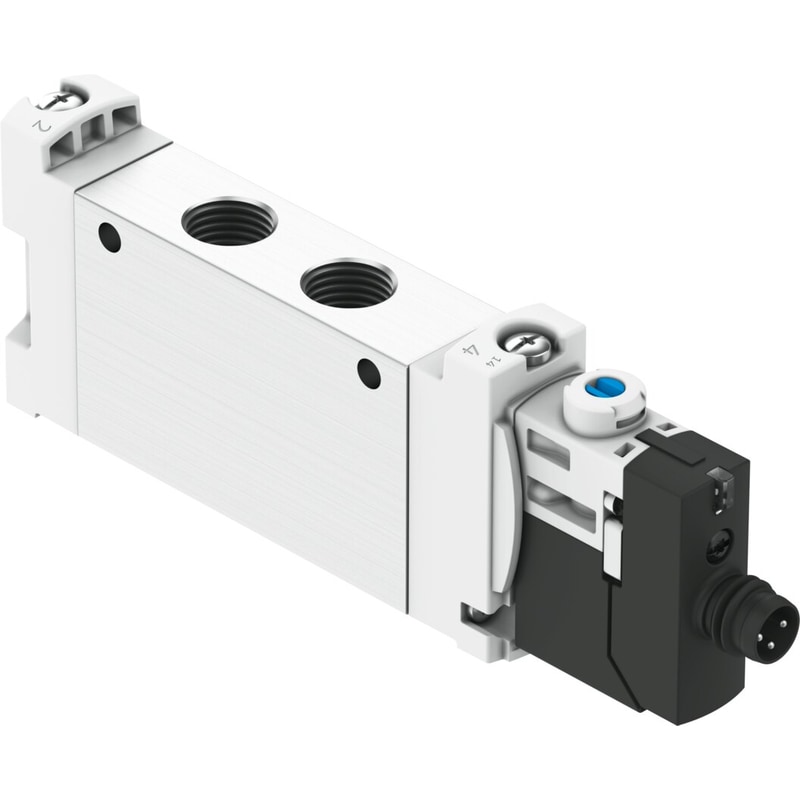

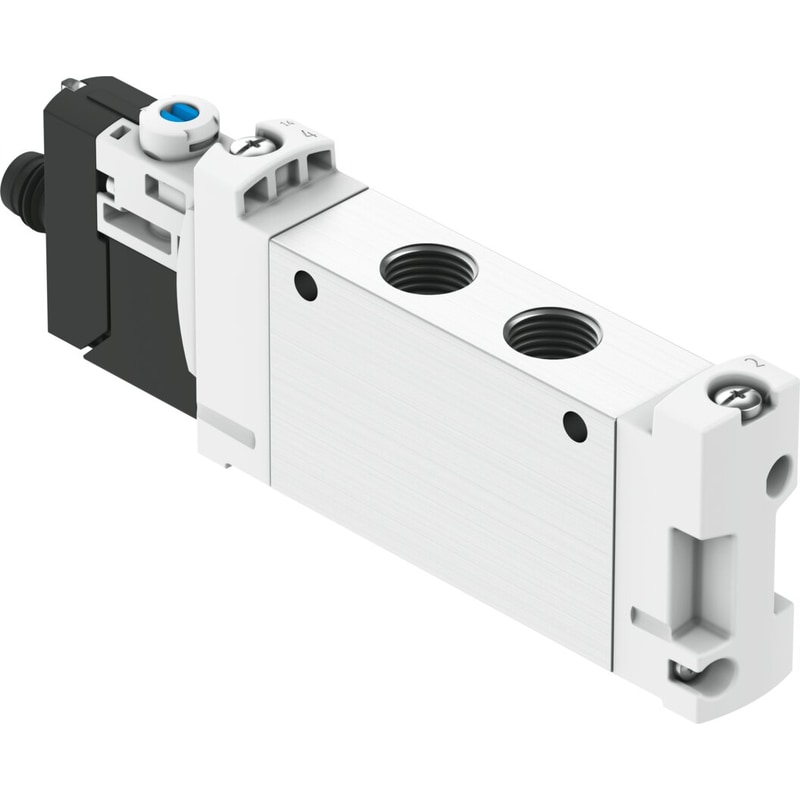

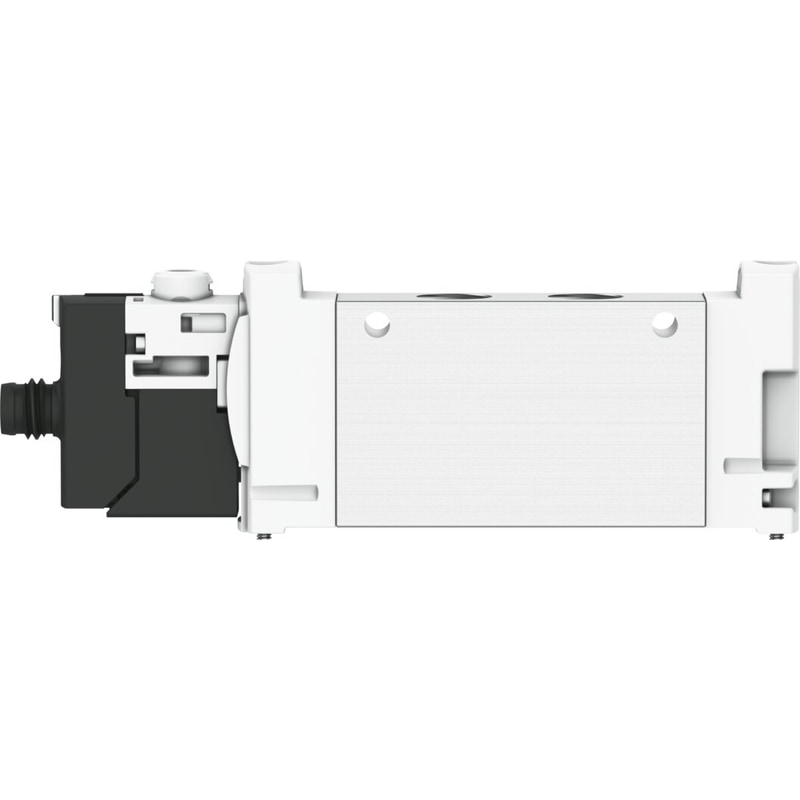

VUVG-LK14-M52-AT-G18-1R8L-S

$54.90

SKU: 8042567
UNSPSC: 40141603
GTIN: 4052568286934

SKU: 8042567 Category:
Festo

The interior of this universal valve has a new design that is an outstanding combination of flow intensity and compact design. Both as an individual valve or as a valve manifold, the entire VUVG family is designed to cater precisely for all requirements.

Valve function 5/2, monostable
Lap Overlap
Actuation type Electrical
Valve size 14 mm
Standard nominal flow rate 660 l/min
Pneumatic working port G1/8
Operating voltage 24V DC
Operating pressure 2.5 bar … 7 bar
Design Piston gate valve
Reset method Pneumatic spring
Degree of protection IP65
Type code VUVG
Exhaust air function With flow control option
Sealing principle Soft
Mounting position Any
Manual override Non-detentingDetenting
Type of control Pilot-controlled
Pilot air supply port Internal
Flow direction Non-reversible
Symbol 00992908
Signal status display LED
Max. switching frequency 2 Hz
Switching time off 24 ms
On switching time 14 ms
Duty cycle 100%
Max. positive test pulse with 0 signal 1600 µs
Max. negative test pulse on 1 signal 3000 µs
Coil characteristics 24 V DC: 0.8 W
Permissible voltage fluctuations +/- 10 %
Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media Operation with oil lubrication possible (required for further use)
Vibration resistance Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
Shock resistance Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27
