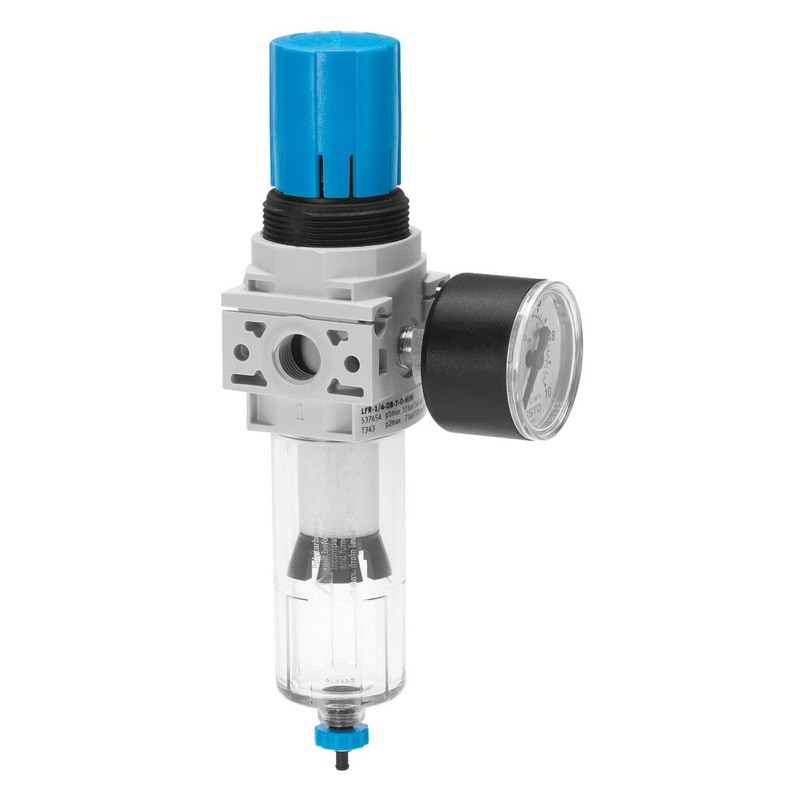

filter regulator LFR-1/4-DB-7-MINI-H Output pressure max. 7 bar, with pressure gauge, 40 µ filtration grade. Size=Mini, Width=44 mm, Series=DB, Actuator lock=Rotary knob with lock, Assembly position=Vertical +/- 5°
| Size | Mini |
|---|---|
| Width | 44 mm |
| Series | DB |
| Actuator lock | Rotary knob with lock |
| Assembly position | Vertical +/- 5° |
| Grade of filtration | 40 µm |
| Condensate drain | semi-automatic |

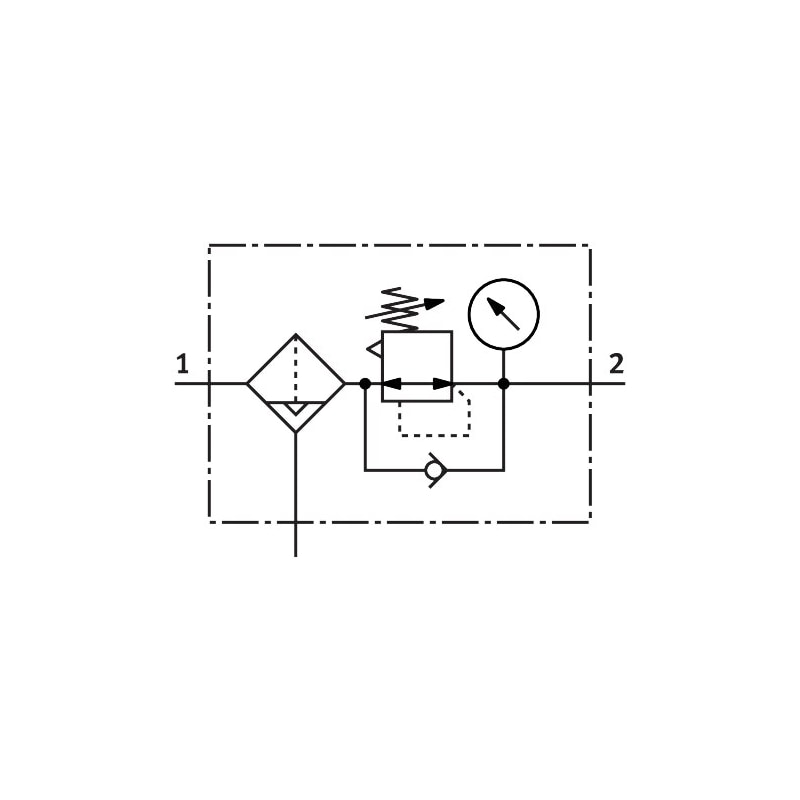

| Design structure | Filter regulator with pressure gauge |
| Controller function | with secondary exhaustwith return flow |
| Pressure gauge | with pressure gauge |
| Operating pressure | 1.5 … 10 bar |
| Pressure regulation range | 0.5 … 7 bar |
| Max. pressure hysteresis | 0.5 bar |
