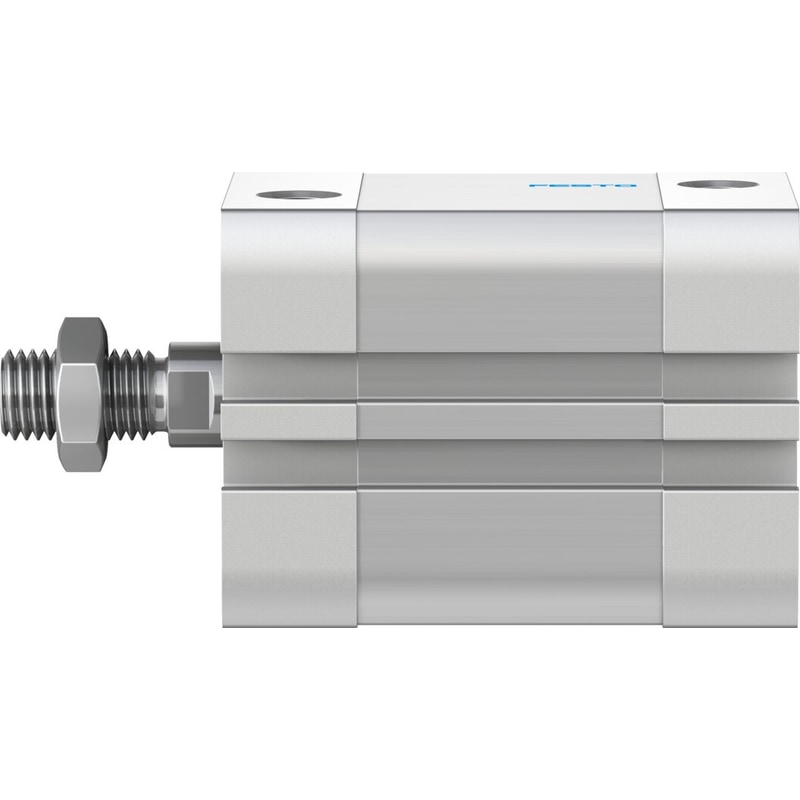

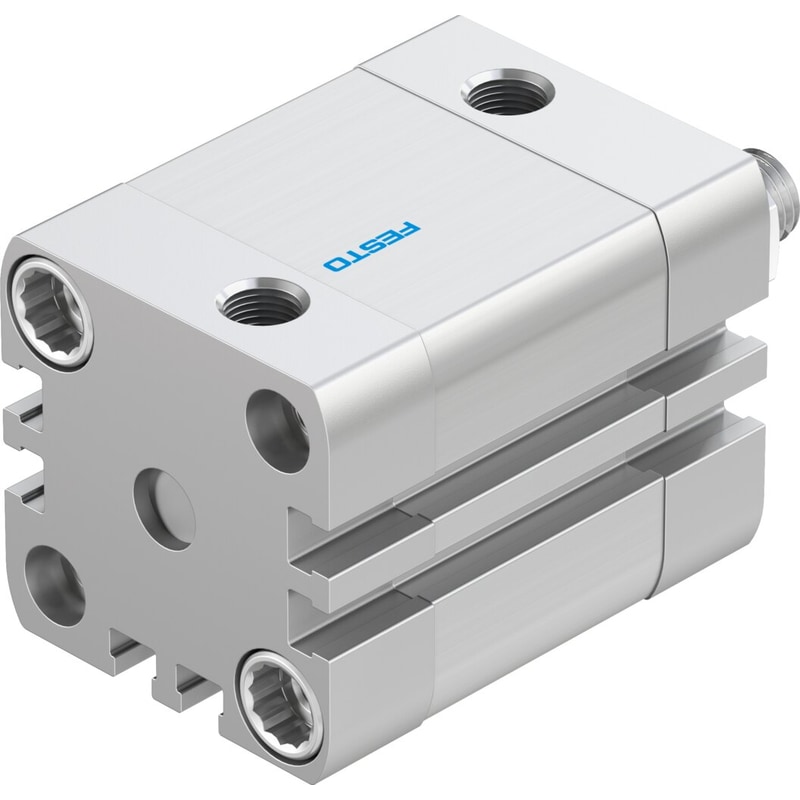

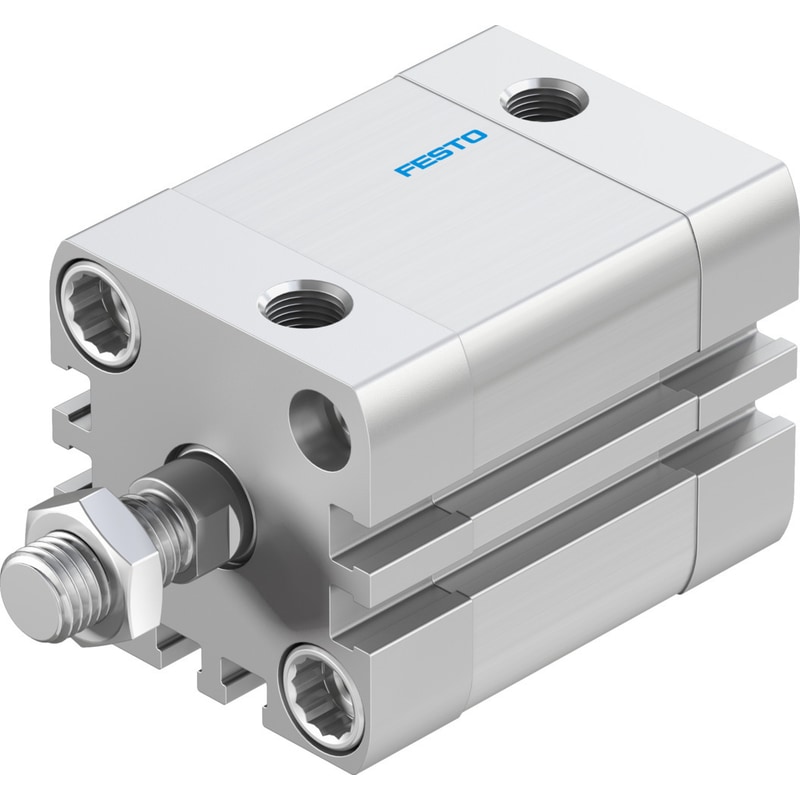

ADN-1 1/4″-3/4″-A-P-A

$101.30

SKU: 557083
UNSPSC: 31251504
GTIN:

SKU: 557083 Category: Tag: Brand:

compact cylinder ADN-11/4″-3/4″-A-P-A Per ISO 21287, with position sensing and external piston rod thread Stroke=0,75 “, Piston diameter=1 1/4”, Piston rod thread=UNF3/8-24, Cushioning=P: Flexible cushioning rings/plates at both ends, Assembly position=Any

Stroke0.75 “
Piston diameter1 1/4″
Piston rod threadUNF3/8-24
Cushioning P: Flexible cushioning rings/plates at both ends
Assembly position Any
Conforms to standard ISO 21287
Piston-rod endMale thread
Design structure PistonPiston rodProfile barrel
Position detection For proximity sensor
Variants Single-ended piston rod
Operating pressure 1 … 10 bar
Mode of operationdouble-acting
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Stroke

0.75 "

Piston diameter

1 1/4"

Piston rod thread

UNF3/8-24

Cushioning

P: Flexible cushioning rings/plates at both ends

Assembly position

Any

Conforms to standard

ISO 21287

Piston-rod end

Male thread

Design structure

PistonPiston rodProfile barrel

Position detection

For proximity sensor

Variants

Single-ended piston rod

Operating pressure

1 … 10 bar

Mode of operation

double-acting

Operating medium

Compressed air in accordance with ISO8573-1:2010 [7:4:4]
