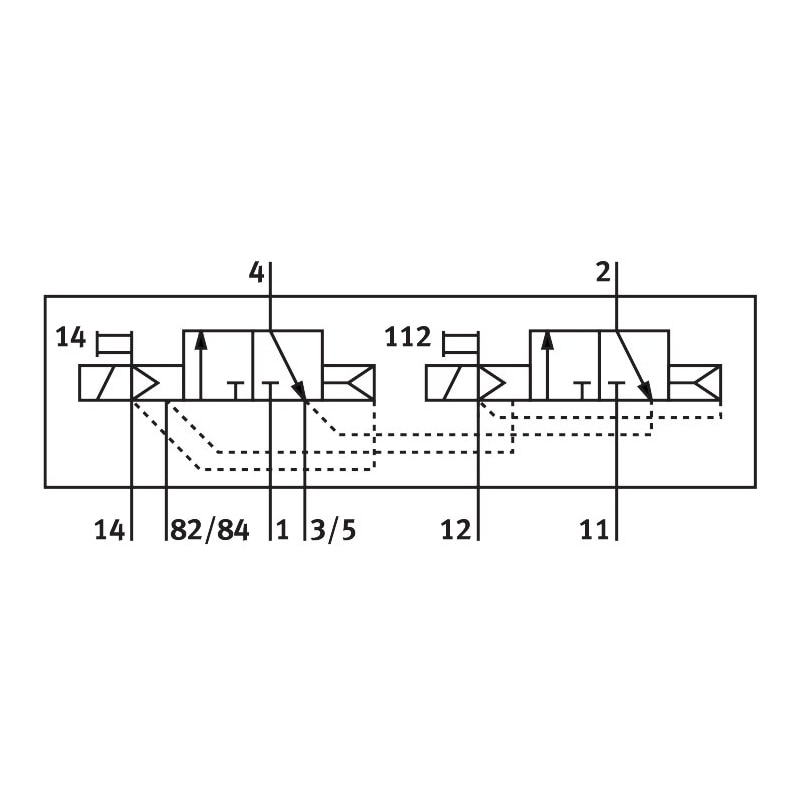

solenoid valve CPV14-M1H-2X3-GLS-K-1/8 For valve terminal CPV. The valve housing contains two 3/2-way valves, both of which are normally closed. Valve function=3/2 closed, monostable, Type of actuation=electrical, Valve size=14 mm, Standard nominal flow rate=800 l/min, Operating pressure=-0,9 – 10 bar
Valve function | 3/2 closed, monostable |
---|---|
Type of actuation | electrical |
Valve size | 14 mm |
Standard nominal flow rate | 800 l/min |
Operating pressure | ‘-0.9 … 10 bar |
Design structure | Piston slide |
Type of reset | Air spring |
Protection class | IP65 |
Nominal size | 6 mm |
Exhaust-air function | not throttleable |
Sealing principle | soft |
Assembly position | Any |
Manual override | detentingPushing |
