GRF-PK-3

$247.67

SKU: 4565
UNSPSC: 40141603
GTIN: 4052568110536

SKU: 4565 Category: Tag: Brand:

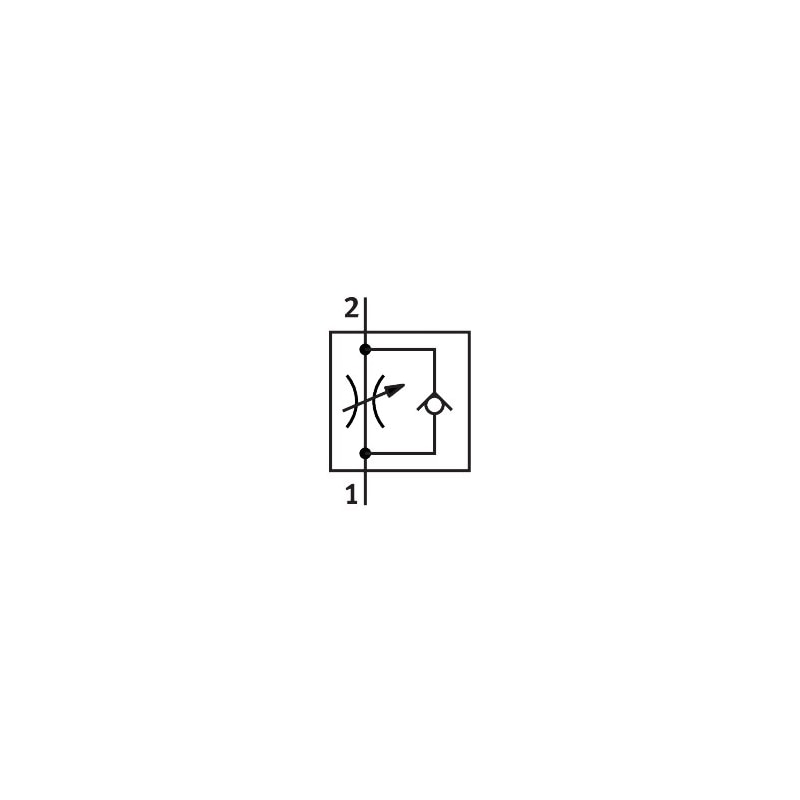

one-way flow control valve GRF-PK-3 With sub-base 2n and barbed fitting for tubing ND 3. Valve function=One-way flow control function, Pneumatic connection, port 1=PK-3, Pneumatic connection, port 2=PK-3, Adjusting element=Knurled screw, Mounting type=with through hole

Valve function One-way flow control function
Pneumatic connection, port 1 PK-3
Pneumatic connection, port 2 PK-3
Adjusting element Knurled screw
Mounting type with through hole
Standard nominal flow rate in flow control direction 45 l/min
Standard nominal flow rate in non-return direction 45 l/min
Operating pressure 0.5 … 8 bar
Ambient temperature ‘-10 … 60 °C
Material housing Wrought Aluminium alloy
Assembly position Any
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:-:-]
Note on operating and pilot medium Lubricated operation possible (subsequently required for further operation)
Valve function

One-way flow control function

Pneumatic connection, port 1

PK-3

Pneumatic connection, port 2

PK-3

Adjusting element

Knurled screw

Mounting type

with through hole

Standard nominal flow rate in flow control direction

45 l/min

Standard nominal flow rate in non-return direction

45 l/min

Operating pressure

0.5 … 8 bar

Ambient temperature

-10 … 60 °C

Material housing

Wrought Aluminium alloy

Assembly position

Any

Operating medium

Compressed air in accordance with ISO8573-1:2010 [7:-:-]

Note on operating and pilot medium

Lubricated operation possible (subsequently required for further operation)
