CK-1/4-PK-6 (Pack of 10)

$30.00

SKU: 2030
UNSPSC: 27131613
GTIN: 4052568008161
Sold in Pack of 10

SKU: 2030 Category:
Festo

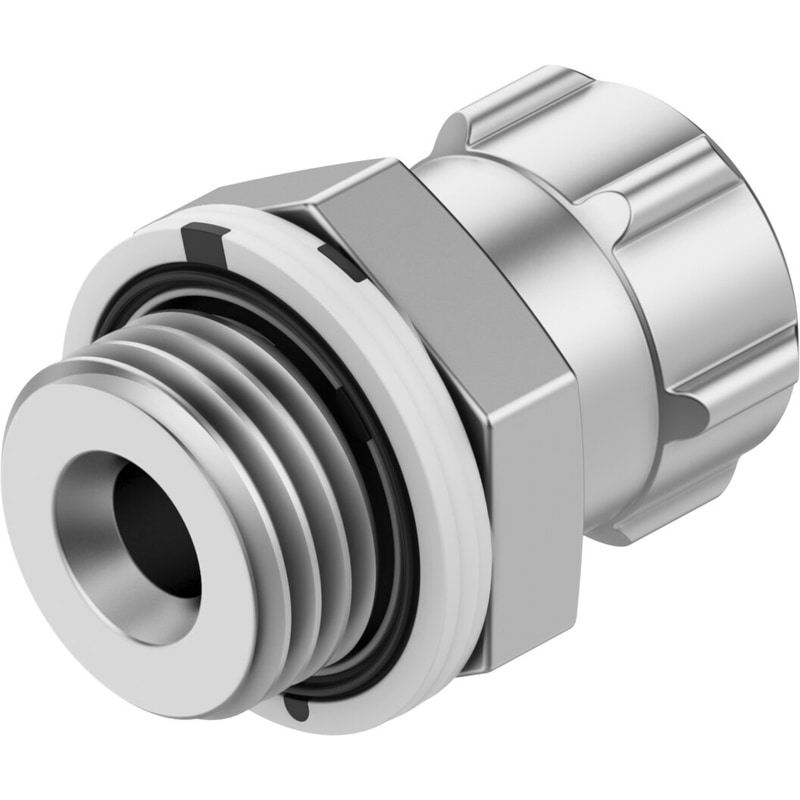

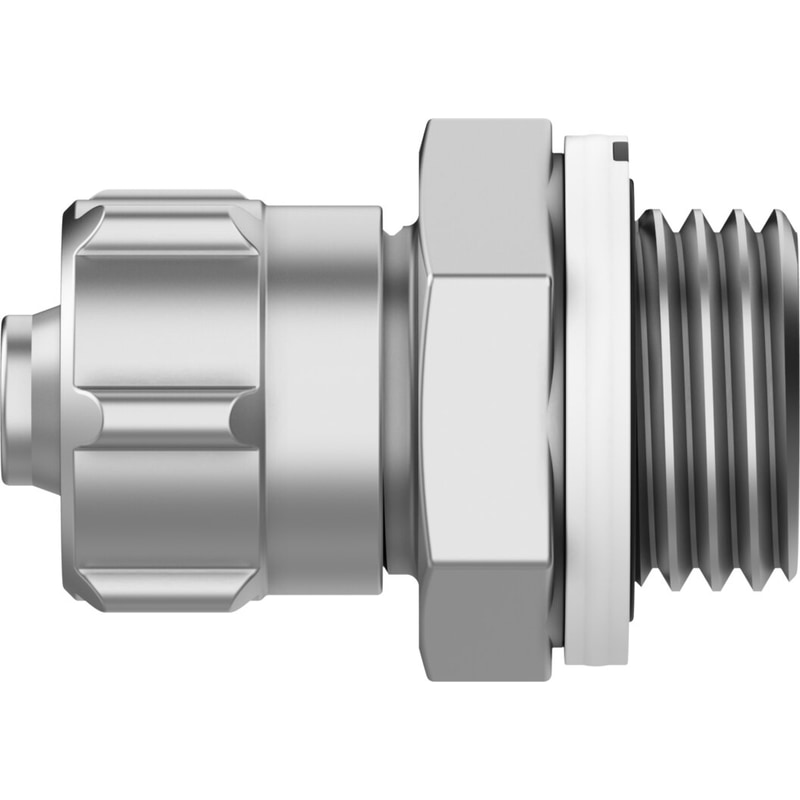

quick connector CK-1/4-PK-6 Male thread with sealing ring, metal version. Nominal size=4,9 mm, Type of seal on screw-in stud=Sealing ring, Assembly position=Any, Operating medium=(* Compressed air in accordance with ISO8573-1:2010 [7:-:-], * Water as per manufacturer’s declaration at www.festo.com), Note on operating and pilot medium=Lubricated operation possible

Fitting Type

n/a

Nominal size

4.9 mm

Type of seal on screw-in stud

Sealing ring

Assembly position

Any

Operating medium

Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer's declaration at http://www.festo.com

Note on operating and pilot medium

Lubricated operation possible

Corrosion resistance classification CRC

2 – Moderate corrosion stress

Ambient temperature

-10 … 60 °C

Maritime classification

see certificate

connection 1

Male thread G1/4

connection 2

For tubing outside diameter 8 mm

Materials note

Conforms to RoHS

Material housing

Aluminium
