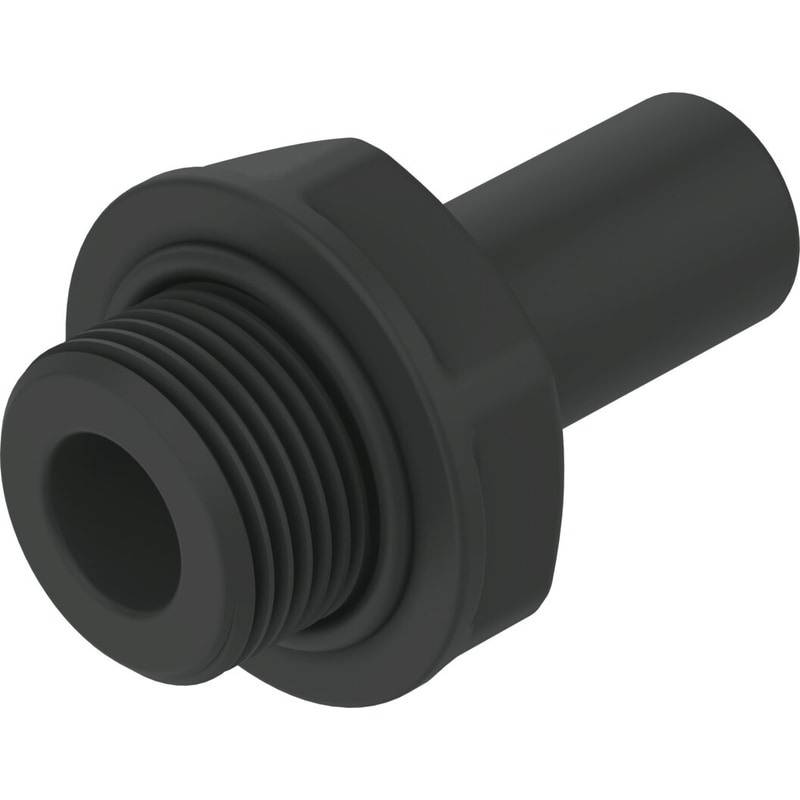

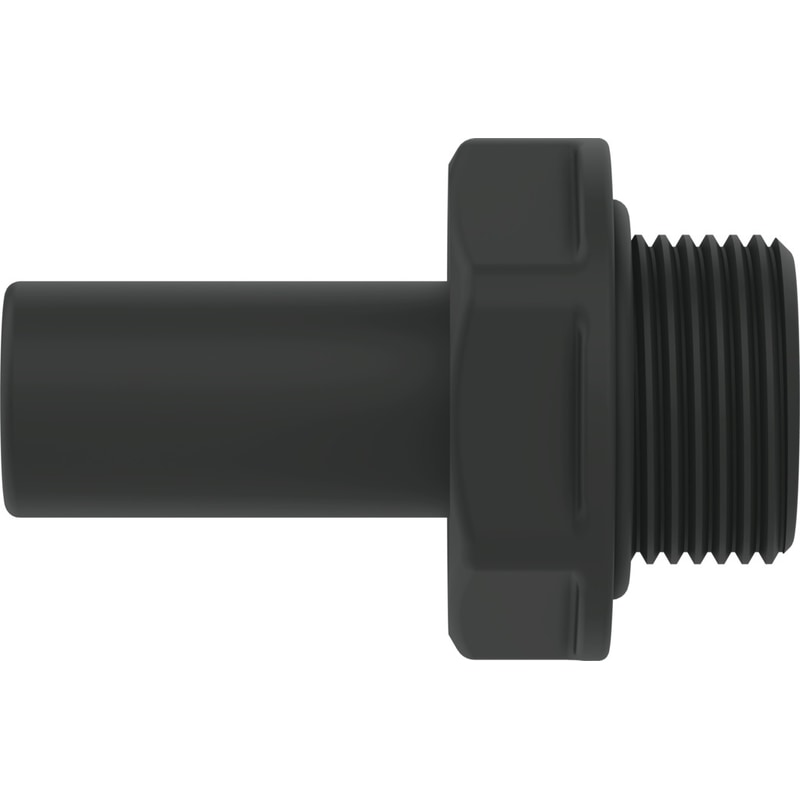

CQ-1-28H

$43.86

SKU: 194589
UNSPSC: 27131613
GTIN: 4052568080617

SKU: 194589 Category: Tag: Brand:

push-in fitting CQ-1-28H For high flow rates. Nominal size=23 mm, Type of seal on screw-in stud=Sealing ring, Assembly position=Any, Container size=1, Design structure=Push/pull principle

Fitting TypePush-in Sleeve
Nominal size 23 mm
Type of seal on screw-in stud Sealing ring
Assembly position Any
Container size 1
Design structure Push/pull principle
Operating pressure complete temperature range ‘-0.95 … 7 bar
Temperature dependent operating pressure ‘-0.95 … 10 bar
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:-:-]
Note on operating and pilot medium Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC 2 – Moderate corrosion stress
Ambient temperature ‘-25 … 70 °C
Maritime classification see certificate
Nominal tightening torque 62.5 Nm
Tolerance for nominal tightening torque ± 20 %
Product weight 200 g
connection 1 Male thread G1
connection 2 Push-in sleeve CQ-28
Materials note Contains PWIS substancesConforms to RoHS
Material housing Brass
Fitting Type

Push-in Sleeve

Nominal size

23 mm

Type of seal on screw-in stud

Sealing ring

Assembly position

Any

Container size

1

Design structure

Push/pull principle

Operating pressure complete temperature range

-0.95 … 7 bar

Temperature dependent operating pressure

-0.95 … 10 bar

Operating medium

Compressed air in accordance with ISO8573-1:2010 [7:-:-]

Note on operating and pilot medium

Lubricated operation possible (subsequently required for further operation)

Corrosion resistance classification CRC

2 – Moderate corrosion stress

Ambient temperature

-25 … 70 °C

Maritime classification

see certificate

Nominal tightening torque

62.5 Nm

Tolerance for nominal tightening torque

± 20 %

Product weight

200 g

connection 1

Male thread G1

connection 2

Push-in sleeve CQ-28

Materials note

Contains PWIS substancesConforms to RoHS

Material housing

Brass
