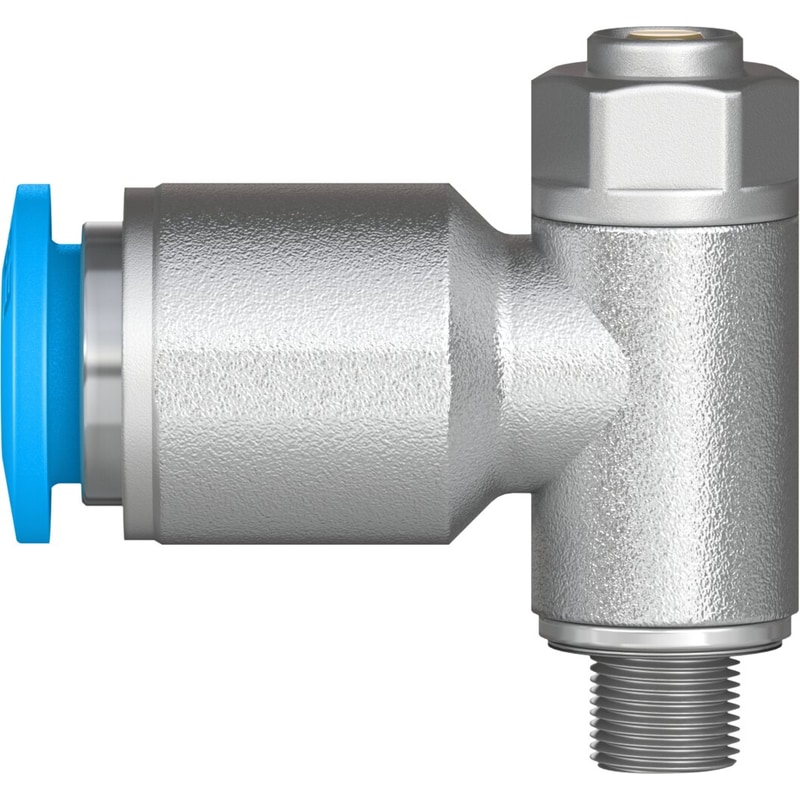

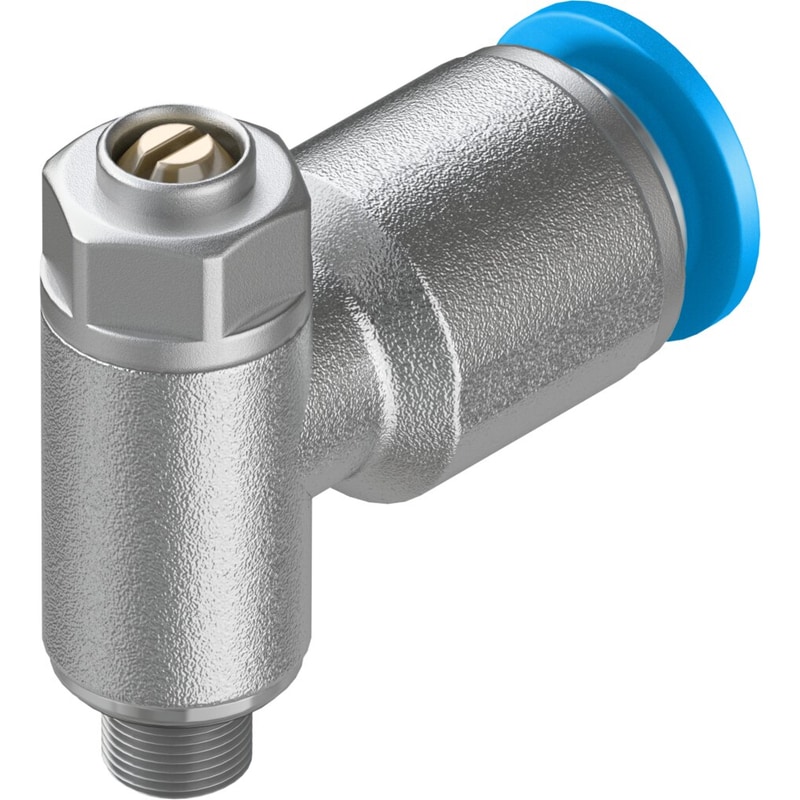

one-way flow control valve
GRLA-M5-QS-6-D
Part number:Â 193139
★ Core product rangeÂ
| Valve function | One-way flow control function for exhaust air |
|---|---|
| connection 1 | 6 |
| connection 2Â | M5 |
| Adjusting element | Slotted head screw |
| Mounting type | Threaded |
| Standard nominal flow rate in flow control direction | 115 l/min |
| Standard nominal flow rate in non-return direction | 70 … 110 l/min |
| Ambient temperature | ‘-10 … 60 °C |
| Assembly position | Any |
| Operating pressure complete temperature range | 0.2 … 10 bar |
| Standard flow rate in direction of flow control: 6 -> 0 bar | 185 l/min |
| Standard flow rate in blocked direction: 6 -> 0 bar | 145 … 170 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Design | Elbow |
