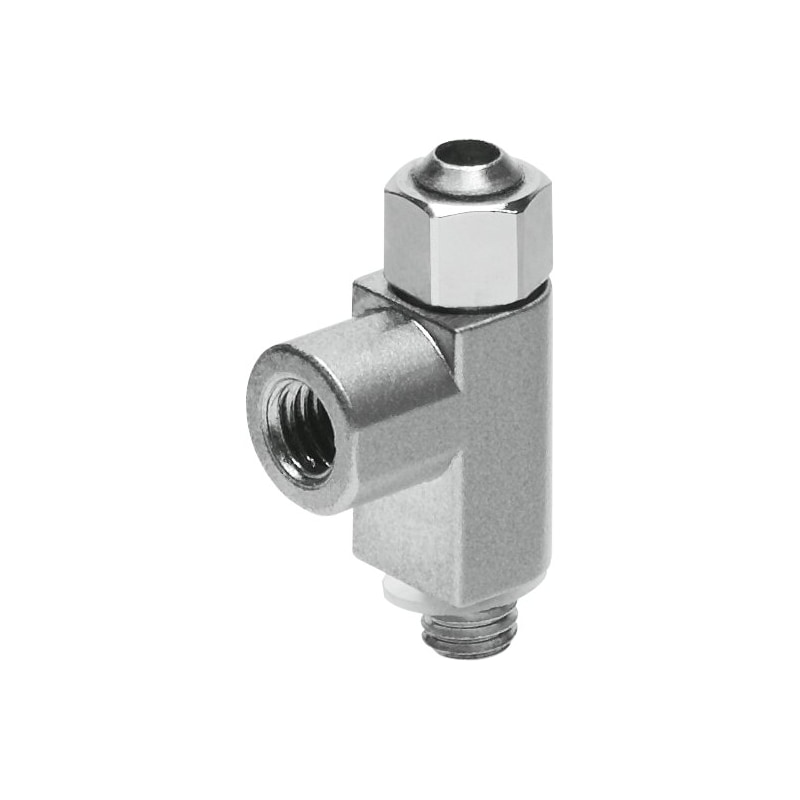

flow control valve GRLO-M3 Without non-return function, with swivel joint. Valve function=Throttle function, Pneumatic connection, port 1=M3, Pneumatic connection, port 2=M3, Adjusting element=Slotted head screw, Mounting type=Threaded
Valve function | Throttle function |
---|---|
connection 1Â | M3 |
connection 2Â | M3 |
Adjusting element | Slotted head screw |
Mounting type | Threaded |
Standard nominal flow rate in flow control direction | 18 l/min |
Operating pressure | 0 … 10 bar |
Ambient temperature | ‘-10 … 60 °C |
Assembly position | Any |
Standard flow rate in direction of flow control: 6 -> 0 bar | 33 l/min |
Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
Medium temperature | ‘-10 … 60 °C |
Design | Elbow |
