HEL-1/4-D-MINI-NPT

$84.68

SKU: 173917
UNSPSC: 40141603
GTIN:

Festo

on-off valve HEL-1/4-D-MINI-NPT Used in conjunction with service units for gradual pressure build-up. The valve function is equivalent to a 2/2-way valve. Grid dimension=40 mm, Exhaust-air function=throttleable, Type of actuation=pneumatic, Sealing principle=soft, Assembly position=Any

Grid dimension  40 mm
Exhaust-air function  throttleable
Type of actuation  pneumatic
Sealing principle  soft
Assembly position  Any
Manual override  None
Design structure  Piston slide
Type of reset  mechanical spring
Type of piloting  direct
Flow direction  non reversible

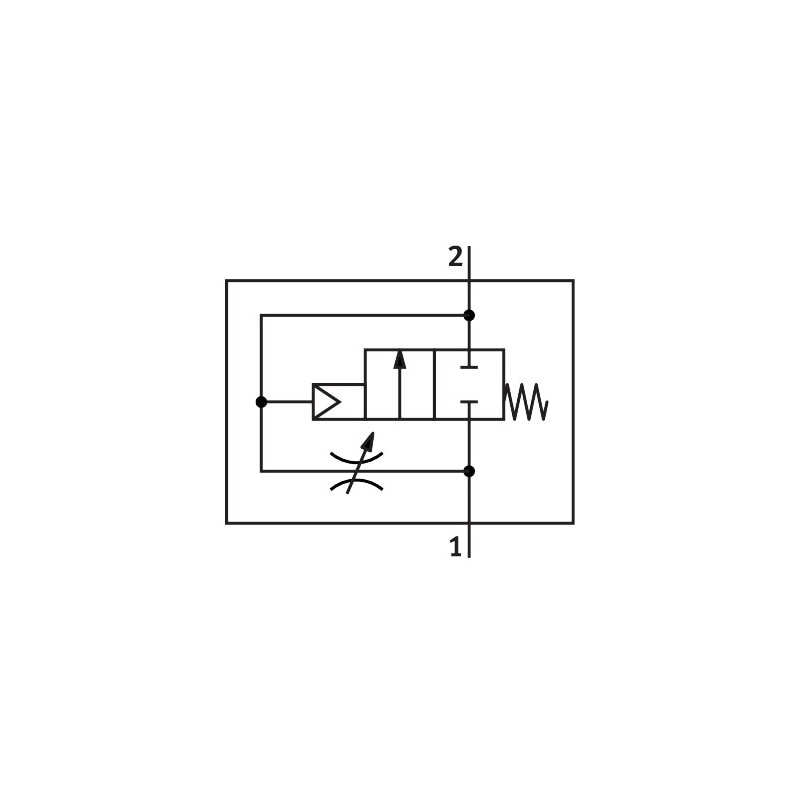

Valve function  2/2 closed, monostable
Operating pressure  3 … 16 bar
b value  0.41
Grid dimension

40 mm

Exhaust-air function

throttleable

Type of actuation

pneumatic

Sealing principle

soft

Assembly position

Any

Manual override

None

Design structure

Piston slide

Type of reset

mechanical spring

Type of piloting

direct

Flow direction

non reversible

Valve function

2/2 closed, monostable

Operating pressure

3 … 16 bar

b value

0.41
