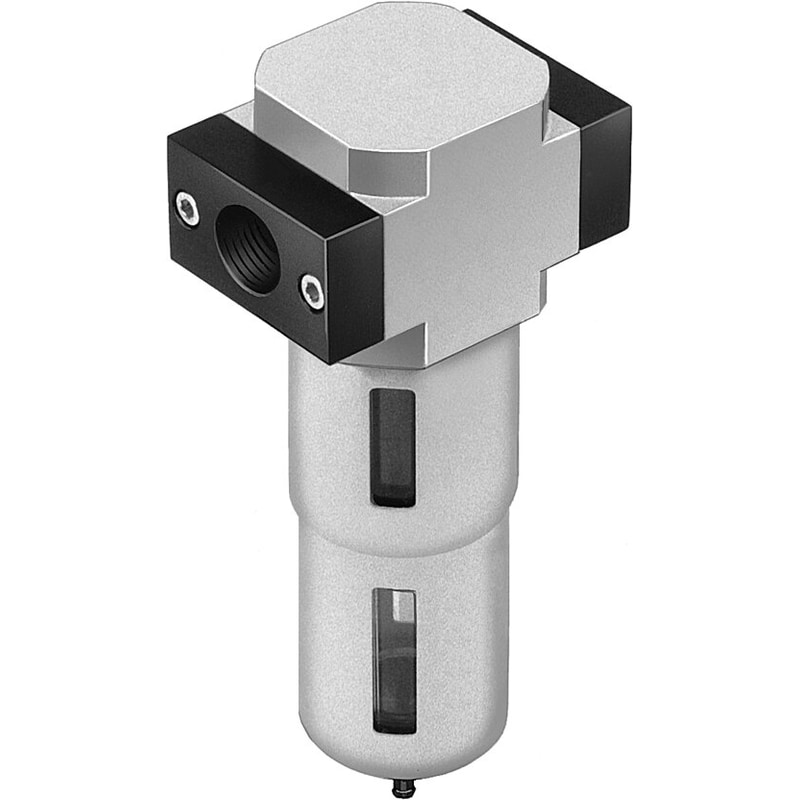

filter LF-3/4-D-5M-MAXI Degree of filtration 5 µm, with bowl guard and manual condensate drain. Size=Maxi, Series=D, Assembly position=Vertical +/- 5°, Grade of filtration=5 µm, Condensate drain=manual rotary
Size | Maxi |
---|---|
Series | D |
Assembly position | Vertical +/- 5° |
Grade of filtration | 5 µm |
Condensate drain | manual rotary |
Design structure | Sintered filter with centrifugal separator |
Max. condensate volume | 80 cm3 |
Bowl guard | Metal bowl guard |
Operating pressure | 0 … 16 bar |
Standard nominal flow rate | 3,600 l/min |
Operating medium | Compressed air to ISO 8573-1:2010 [-:9:-]Inert gases |
Corrosion resistance classification CRCÂ | 2 – Moderate corrosion stress |
Storage temperature | ‘-10 … 60 °C |
